Walvoil SD5 User Manual

SD5
8 DAT003A
Valve setting (bar)
Valve setting (bar)
2. Inlet relief options page 10
1. Body kits *
Ordering codes
2.
2.

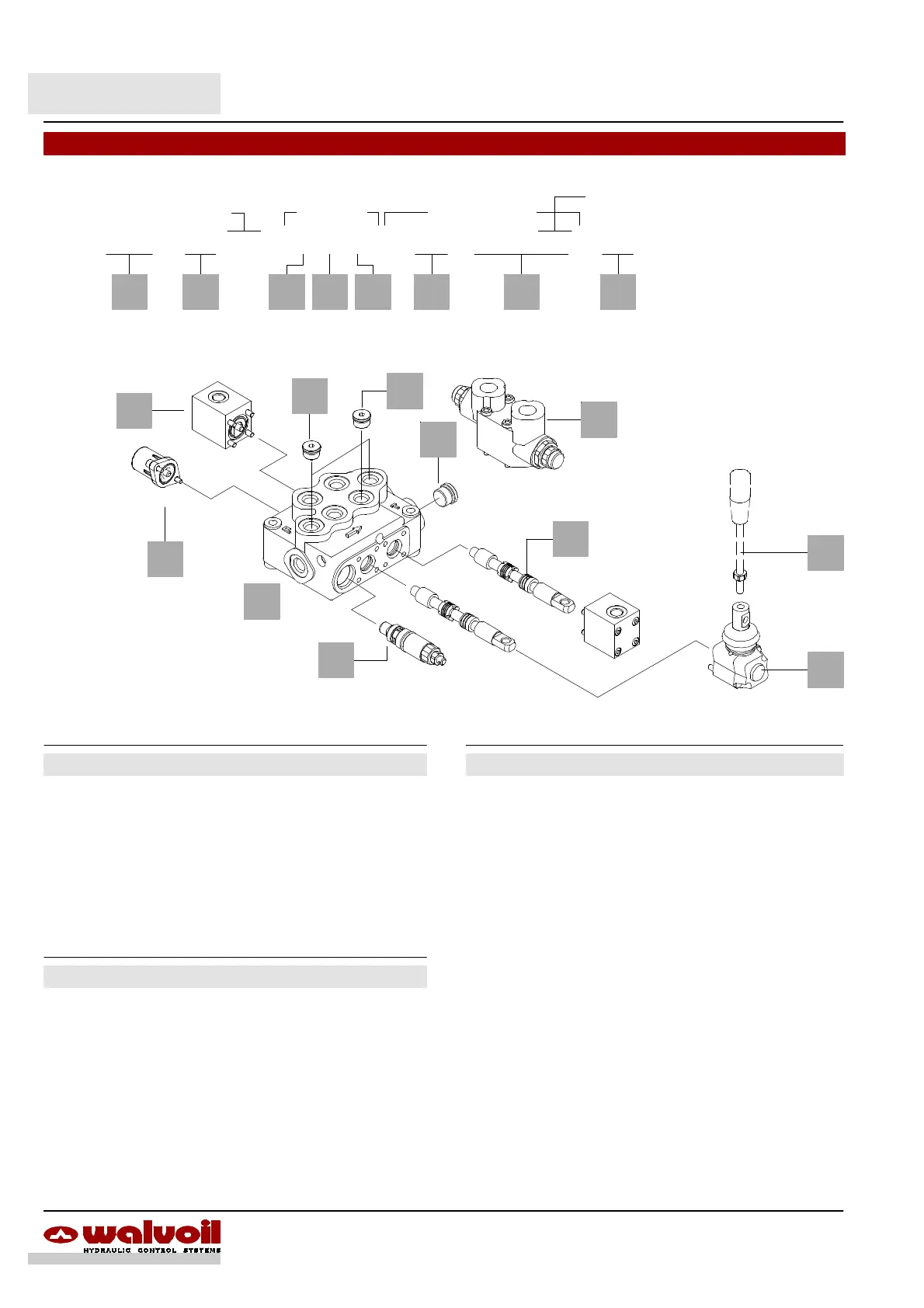

SD5 / 2 -- P (JG3--120) / 1 8 L / 1 8IM . P3(G3--100) / AET -- SAE *
TYPE CODE DESCRIPTION
1--P 5KC1197000 Parallel, 1 section
2--P 5KC1227000 Parallel, 2 sections
3--P 5KC1247000 Parallel, 3 sections
4--P 5KC1277000 Parallel, 4 sections
5--P 5KC1317000 Parallel, 5 sections
6--P 5KC1357000 Parallel, 6 sections
7--P 5KC13E7000 Parallel, 7 sections
TYPE CODE DESCRIPTION
VMD5 direct pressure relief valve type J
(JG2--80) 5KIT105412 Range 40 to 80 bar / 580 to 1150 psi
standard setting 80 bar / 1150 psi
(JG3--120) 5KIT105413 Range 63 to 200 bar / 900 to 2900 psi
standard setting 120 bar / 1750 psi
(JG4--220) 5KIT105414 Range160to315bar/2300to4600psi
standard setting 220 bar / 3200 psi
Standard setting is referred to 10 l/min -- 2.64 US gpm flow.
SV XTAP623282 Relief valve blanking plug
4. 5.
Include boby, seals and load check valve.
1
st
section following section
1.
Description example:
II
5.
4.
I
8.
9.
1.
3.
3. Spool options page 11
TYPE CODE DESCRIPTION
1 3CU1210130 Double acting, 3 positions, with A and B
closed in neutral position
1A 3CU1221130 Double acting, 3 positions, with A open to
tank in neutral position
1B 3CU1222130 Double acting, 3 positions, with B open to
tank in neutral position
2 3CU1225130 Double acting, 3 positions, with A and B
open to tank in neutral position
2H 3CU1225225 Double acting, 3 positions, with A e B
partially open to tank in neutral position
3 3CU1231130 Single acting on A, 3 positions, Bplugged
requires G3/8 plug (see part I )
Special spools for particular positioner kits page 14. . . . . . . . . . . . . . .
5DY 3CU1242220 Double acting, 4 positions, floating circuit
in 4
th
position with spool in
5PY 3CU1245620 Double acting, 4 positions, floating circuit
in 4
th
position with spool out, fitted with
check valve
8 3CU1262120 Double acting, 4 positions, regenerative
circuit in 4
th
position with spool in
Special spools for standard positioner kits page 17. . . . . . . . . . . . . . . .
8F 3CU1261100 Double acting, 3 positions, regenerative
circuit in 2
nd
position with spool out
7.
7.
3.
6. 8.
6.
