5.0 INSTALLATION AND FIXING
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
36
SBB-HFF

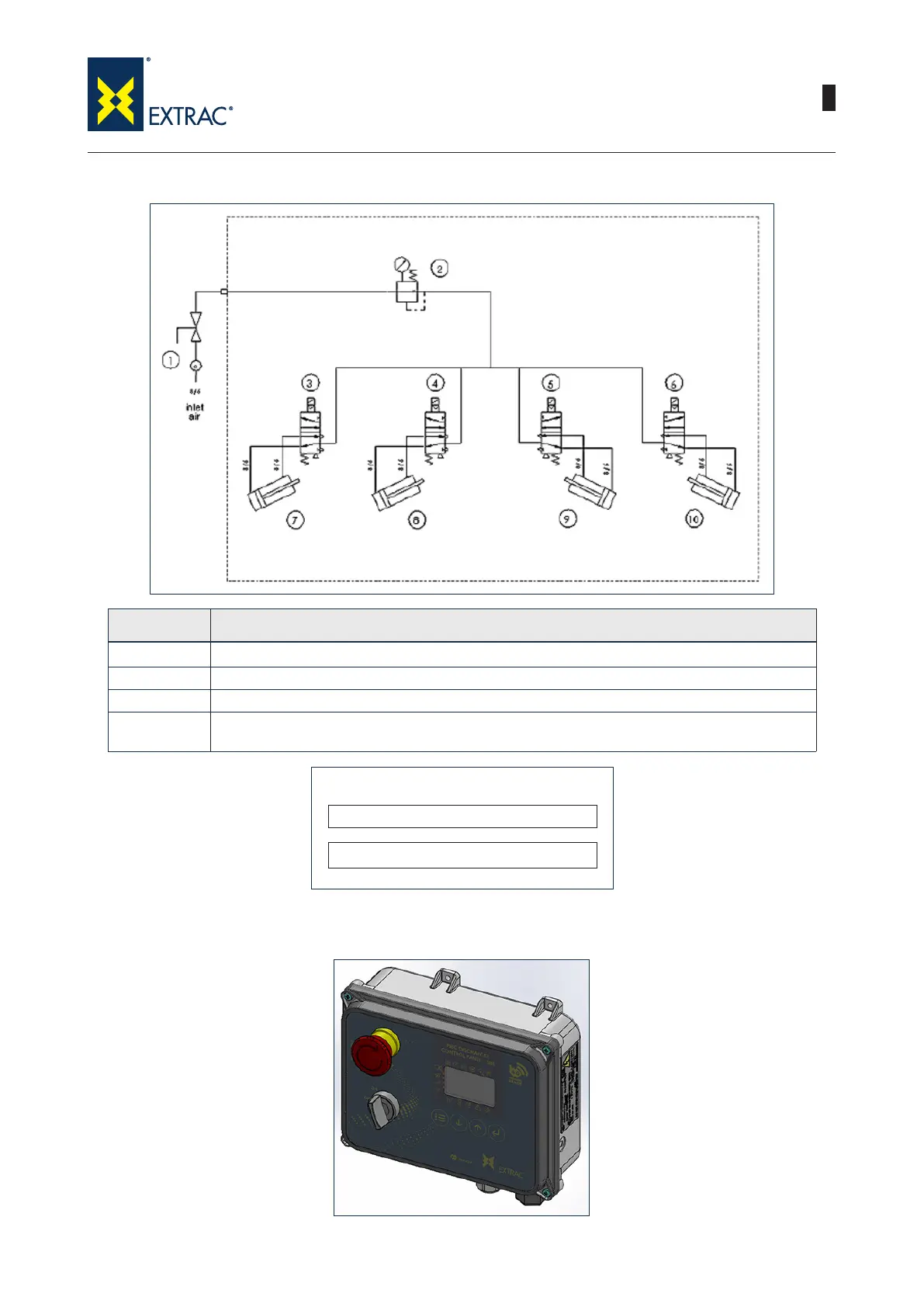

PNEUMATIC CIRCUIT
ITEM DESCRIPTION
1 MANUAL BALL VALVE 1/2'' (NOT SUPPLIED)
2 PRESSURE REDUCER (NOT SUPPLIED)
3-4-5-6 5/2 SOLENOID VALVES 24V DC 8W
7-8-9-10
PNEUMATIC ACTUATORS
ISO 15552 (Ø80, stroke 200mm)
INLET PRESSURE: 6 bar max.
OPERATING PRESSURE: 6 bar max
PNEUMATIC DATA
Pneumatic actuators kit can be controlled by SBB FIBC Dischargers Control Panel. For any information please
refer to instructions paper 063002806 - ELECTRONIC CONTROL BOARD FOR FIBC DISCHARGERS SBB.
