6.0 INFORMATION REGARDING USE
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
45
SBB-HFF
The weights must be adjusted perfectly equal and in the same direction on both sides.
Maximum intensity is obtained with the adjustable masses perfectly aligned with the xed masses.
Ret the covers, after replacing the OR sealing ring without damaging it.
For more information, refer to the vibrator motor manual available on the site www.wamgroup.com.
ADJUSTABLE MASSES - TYPE C (BLADE MASSES)
- Remove the lateral covers by unscrewing the screws and washers.
- Unscrew the xing screws of the mobile mass.
- Set the eccentric masses on the necessary value.
- The masses must be adjusted so as they have the same rotation direction on the two ends (see Fig.1).
- Once the masses were adjusted on the proper values, tighten using a torque wrench.
Danger - Warning
Make sure no one touches or can get hit by the rotating masses.
- If the rotation direction has to be reversed, rst disconnect the electric vibrator from the mains and than
operate on the connections of the junction box.
- When this operation was carried out on both sides, replace the covers and x them using the same screws
and washers ensuring that gaskets (OR) are properly placed on their seat.

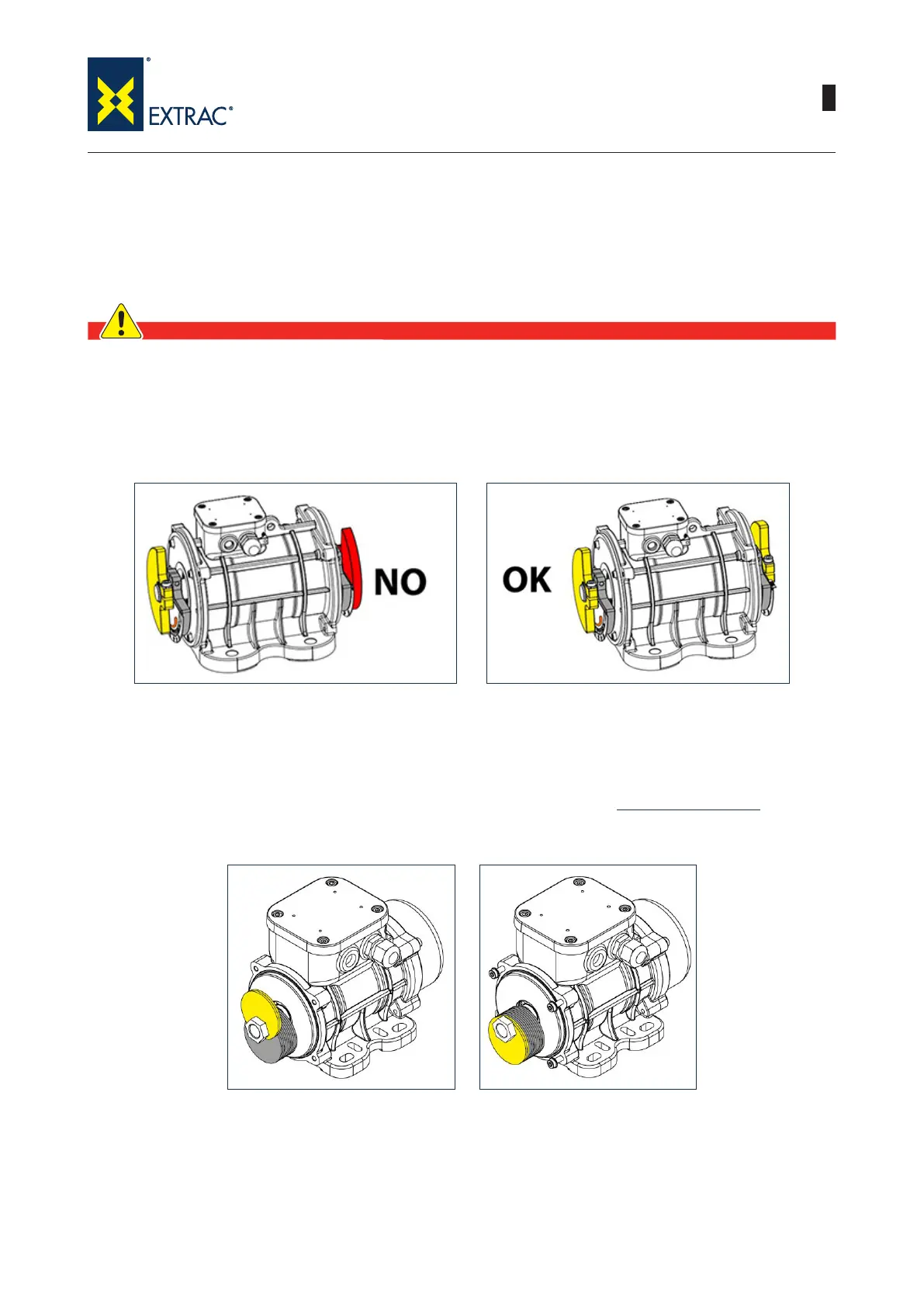

Fig. 1
ADJUSTED MASSES (FOLLOW
THE MANUAL INSTRUCTIONS
TO SET THE RIGHT FORCE)
MASSESS AT 100%
For technical information on the regulation of blade masses refer to the Uses and Maintenance Manual.
