Wanzl wire tech 100 - Example Calculations

Item no. 43.99990.BA-EN07 / 27.09.19
33/36
Load chart
7.1.4 Example calculations

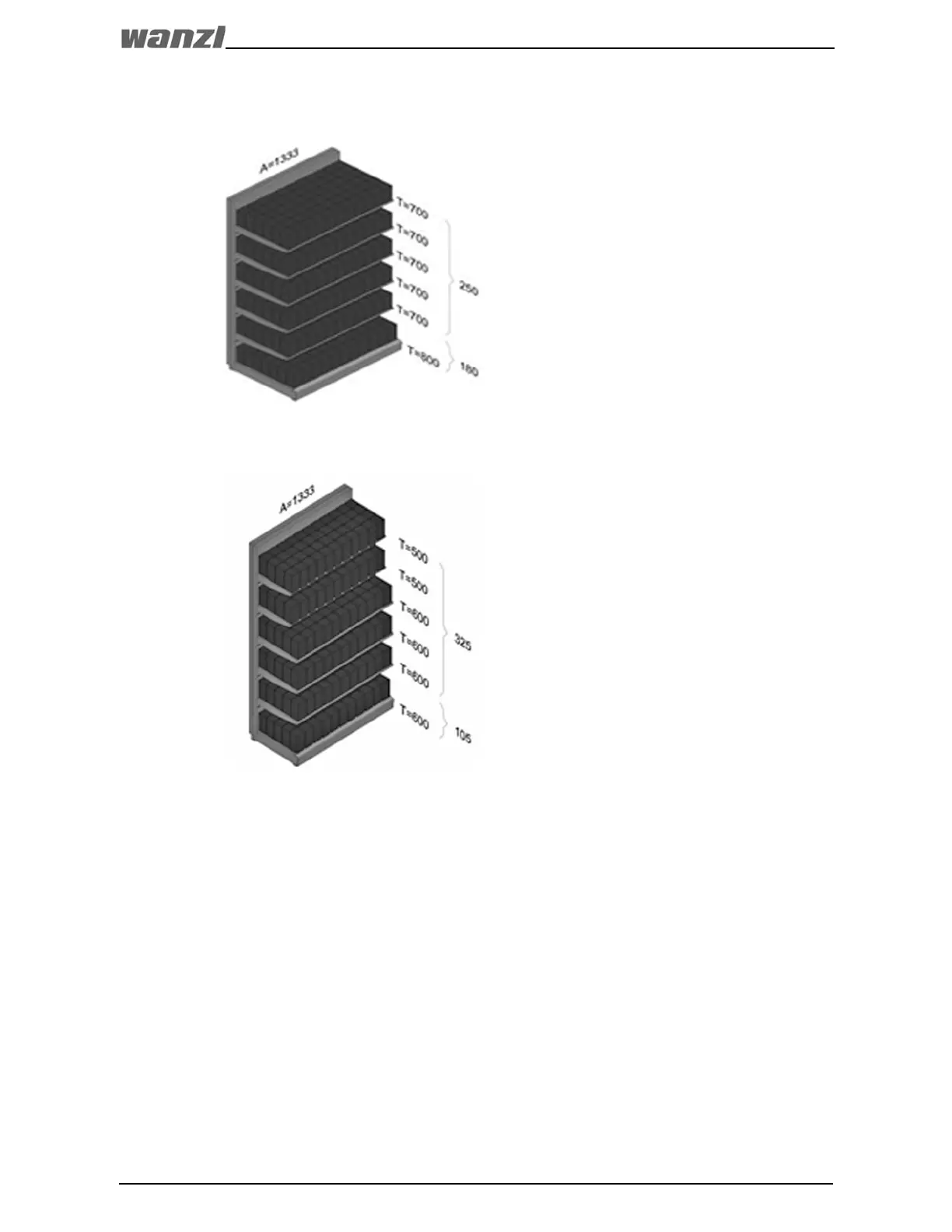

Fig. 100 Base depth D=800 mm / 31 in
axial dimension A=1,333 mm / 53 in
Base shelf D=800mm / 31in
A=1,333 mm /53 in
(From Chapter 7.1.2)
=>Base shelf load =180 kg / 396 lb
Total of 5 inserted shelves
700+700+700+700+700=3,500 mm /
28+28+28+28+28=140 in
Average shelf depth: 3,500 (140 in)/5=
700 mm / 28 in
Therefore, from the total load chart, this
results in
700 mm / 28 in = 250 kg / 550 lb total load
of inserted shelves
Fig. 101 Base depth D=600 mm / 24 in
axial dimension A=1,333 mm / 53 in
Base shelf D=600 mm / 24 in
A=1,333 mm /53 in
=>Base shelf load =105 kg / 232 lb
(From Chapter 7.1.2)
Total of 5 inserted shelves
500+500+600+600+600=2,800 mm /
20+20+24+24+24=112 in
Average shelf depth:
2,800 (110.2 in)/5=560 mm / 22.4 in
Therefore, from the total load chart, this
results in
560 mm / 22.4 in => 325 kg / 717 lb total
load of inserted shelves
