Shelving systems with two uprights and one back panel
5.2 Installation instructions
5.2.1 Uprights
• From a shelf height of 2,240 mm / 88 in, a
wall bracket is necessary without increas-
ing the shelf load.
• Top shelf max. 1,900 mm / 74 in height,
otherwise wall attachment is required.
• The shelf load should decrease the higher
the shelf (see Chapter 7.1.3).
• The shelf depth should be the same or
it should decrease the higher the shelf.
• The shelf height to depth ratio may not
exceed 5:1, otherwise wall attachment
is necessary.
• Max. shelf depth = base depth.
• No suspensions are allowed at the rear
of the wall-mounted shelf.
• Mount the type plate at the beginning and
end of each wall or gondola unit.
• Special requirements may only be arranged
after consultation; written approval is
necessary.

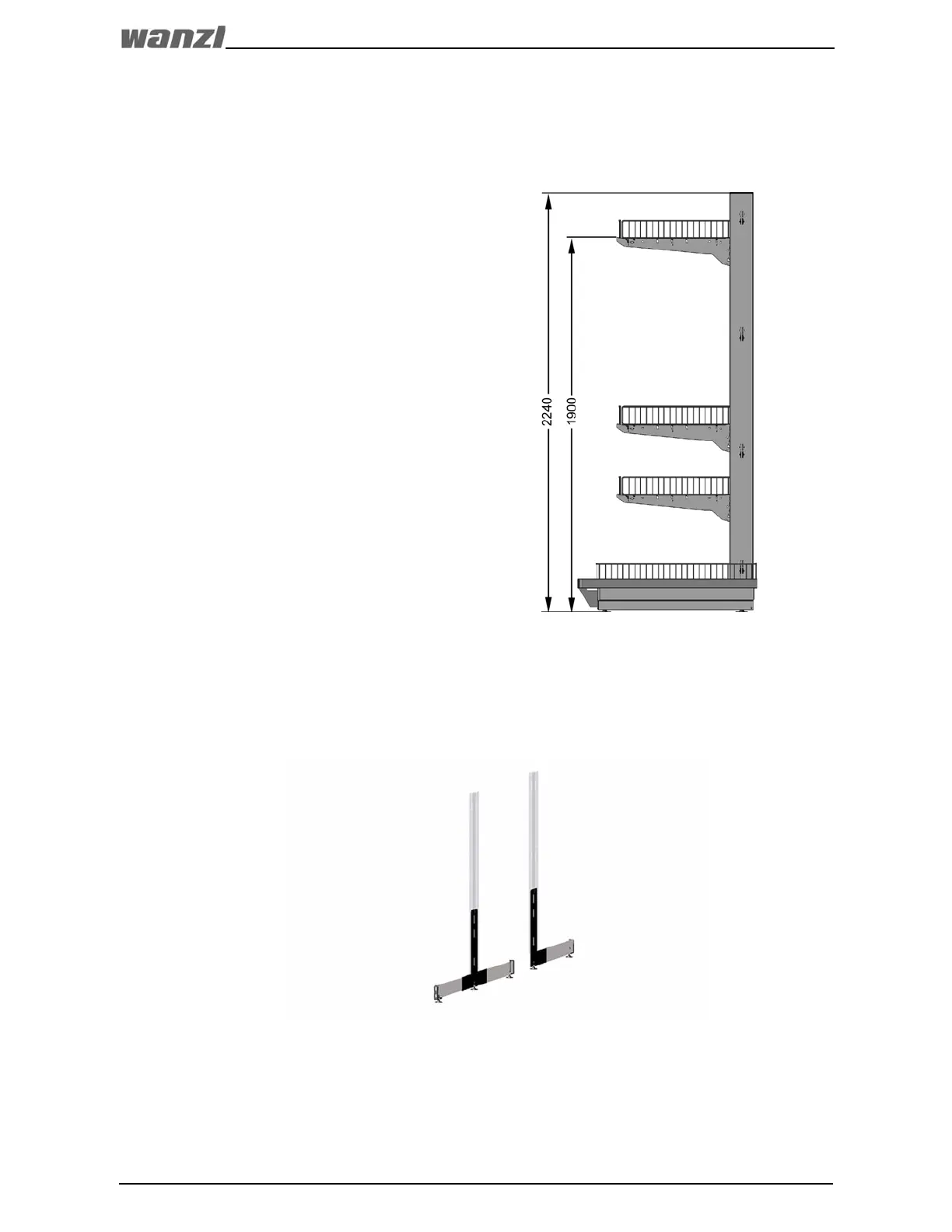

Fig. 2
Fig. 3 If the loads are higher, reinforced uprights must be used.
