GROUNDING INSTRUCTIONS
For your protection, this appliance is equipped with a
3-conductor cord set.
120 volt units are supplied with a molded 3-prong grounding-type
plug (NEMA 5-15P), and should be used in combination with a

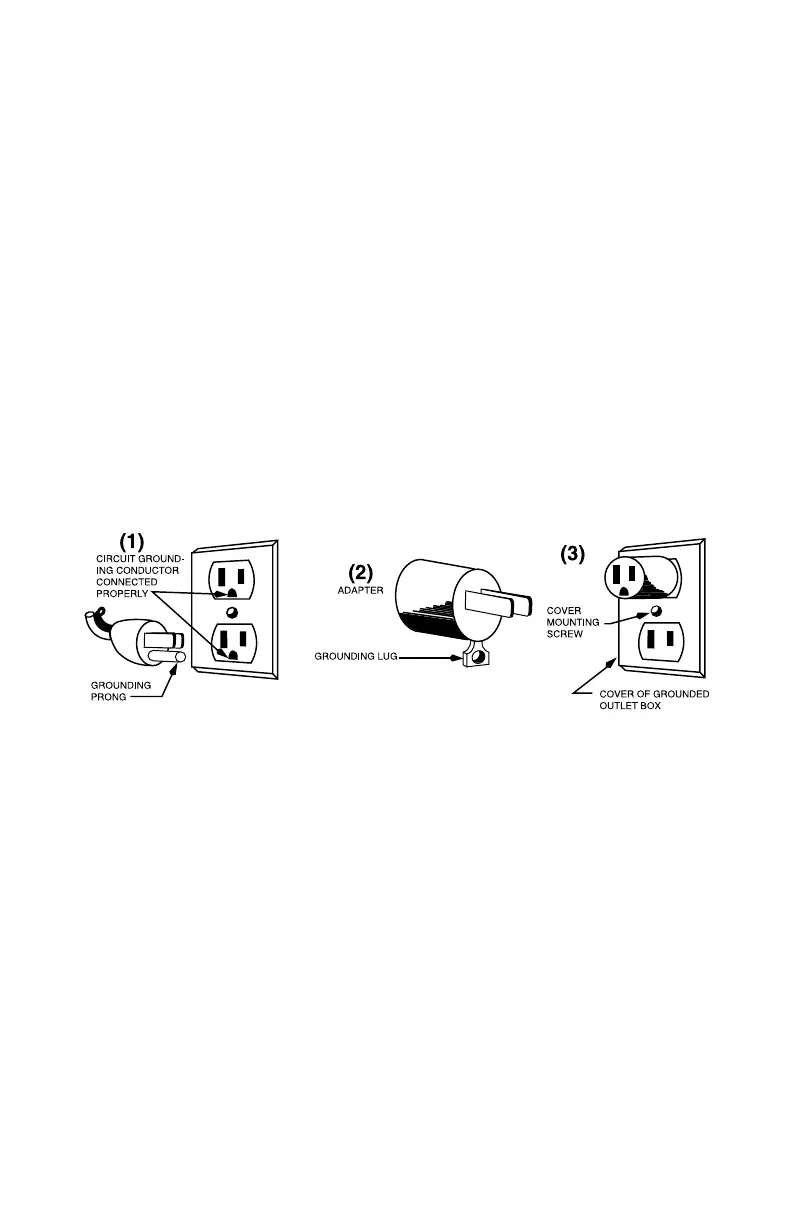

properly connected grounding-type outlet as shown in Figure 1.
If a grounding-type outlet is not available, an adapter as shown in
Figure 2 may be obtained to enable a 2-slot wall outlet to be used
with a 3-prong plug.
As shown in Figure 3, the adapter must be grounded by attaching
its grounding lug under the screw of the outlet cover plate.
CAUTION: Before using an adapter, it must be determined that
the outlet cover plate screw is properly grounded. If in doubt,
consult a licensed electrician. Never use an adapter unless you
are sure it is properly grounded.
