EXTENSION AND AIR HOSE

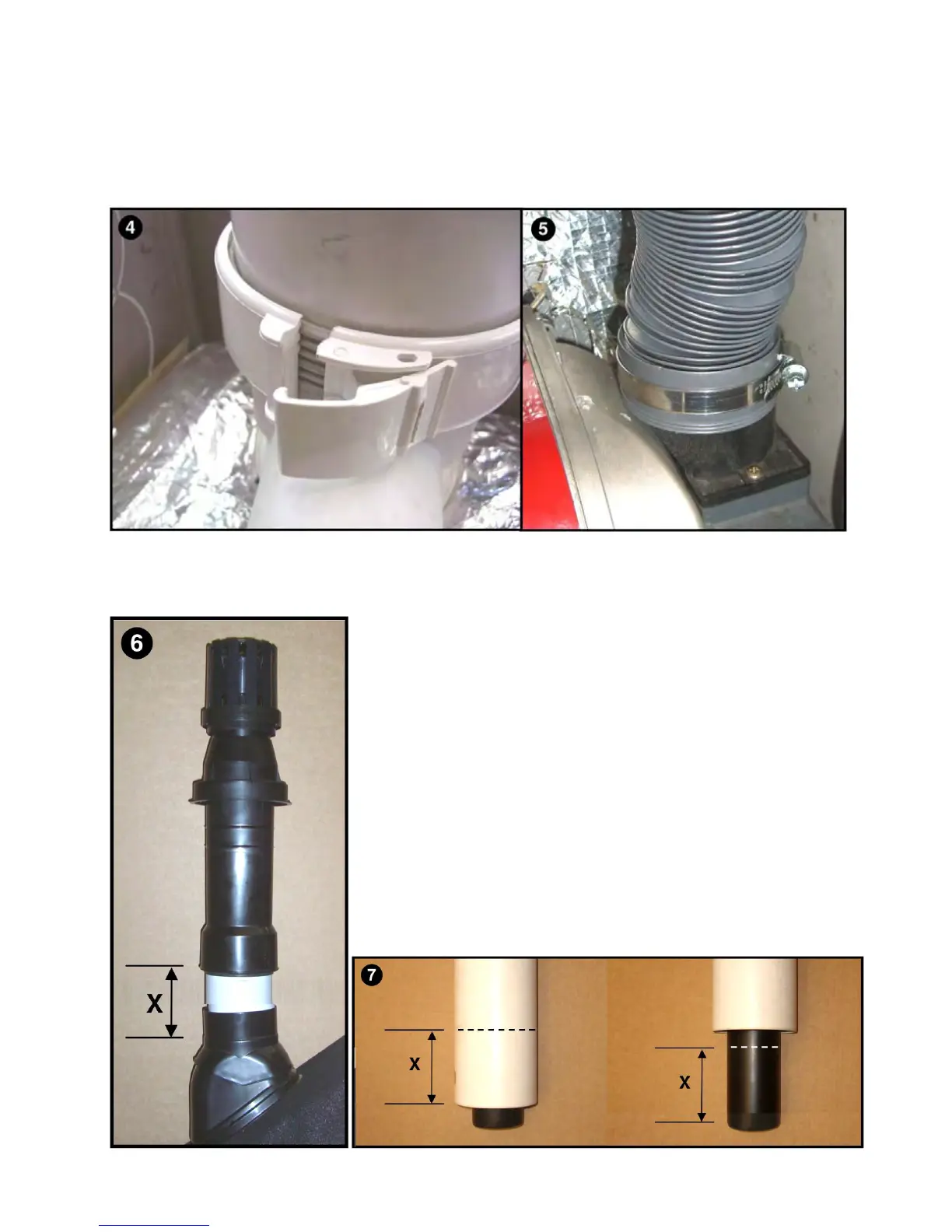

4. Lubricate then fit the 1st extension and secure with the locking band.
5. Fit the air inlet spigot and gasket to the burner. Attach the flexible air hose to
the burner and starter assembly and secure with the jubilee clips.
MEASURE AND CUT TERMINAL
6. Fit the flashing and assemble the flue up through
the roof, lubricating all seals. Measure the excess
length, X, noting carefully the correct measurement
locations.
7. Cut X mm from the outer pipe of the terminal (C)
then X mm from the inner pipe. Refit and secure in
place with the bracket (D).
