Page 67
CONNECT 1
ST
EXTENSION AND AIR HOSE

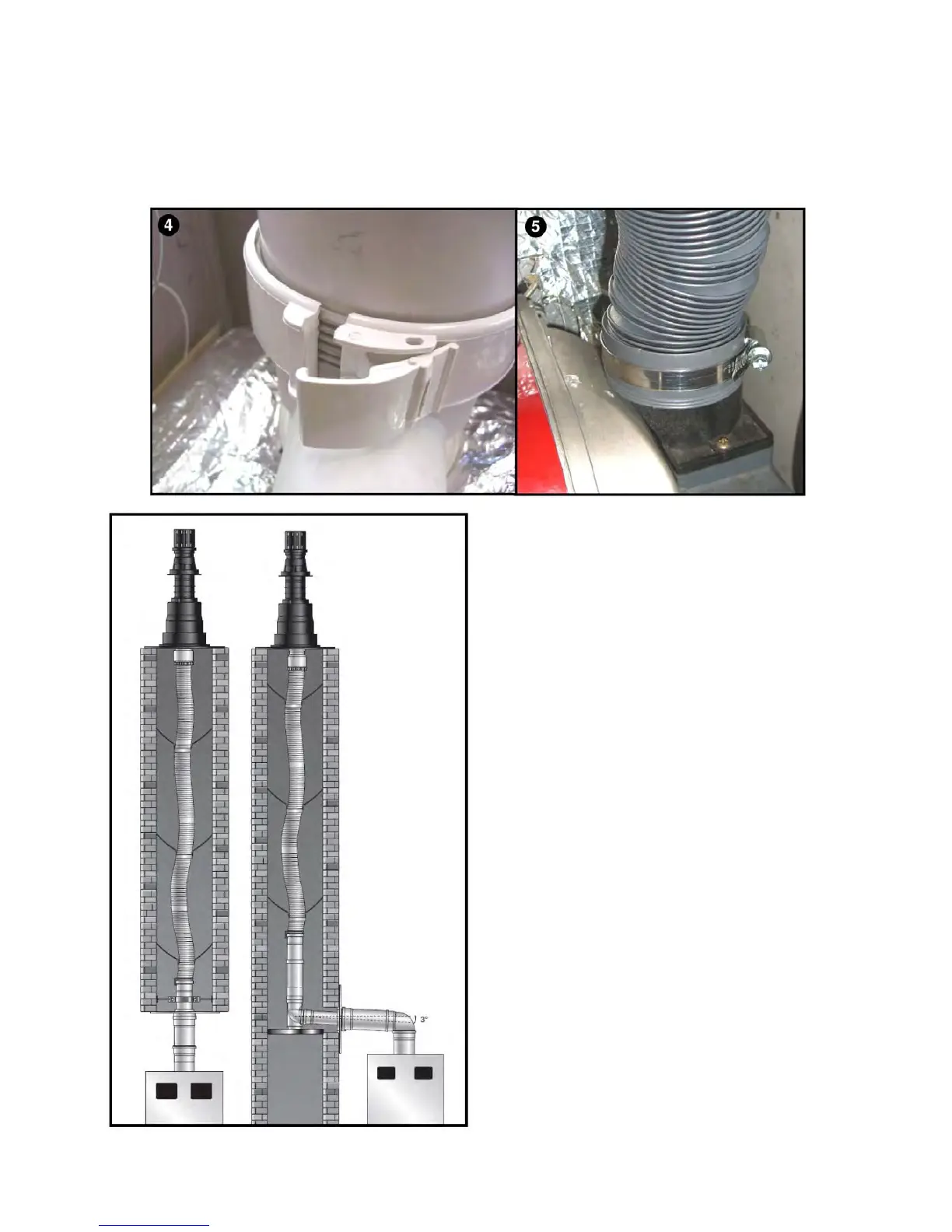

4. Lubricate then fit the 1
st
extension and secure with the locking band.
5. Fit the air inlet spigot and gasket to the burner. Attach the flexible air hose to
the burner and starter assembly and secure with the jubilee clips.
CONNECT TO CLOSURE PLATE
Install the chimney components and
closure plate as instructed in the
separate instruction leaflet.
Run the flue from the boiler to the
chimney closure plate. If necessary, the
extension(s) can be cut to length.
Horizontal entry kits only
Ensure that the „horizontal‟ section into
the closure plate is inclined back
towards the boiler at a minimum of 3° to
the horizontal as shown.
