PAGE 8 91728A0
Winch Installation to fixed location
Failure to observe these instructions could lead to minor or moderate injury.
Always choose a mounting location that is sufficiently strong to withstand the loads you
intend to winch
The 2000 can be mounted to a fixed location
by utilizing the mounting hole pattern for
the winch unit. First, choose a mounting
location that is sufficiently strong enough to
withstand the loads you intend to winch.

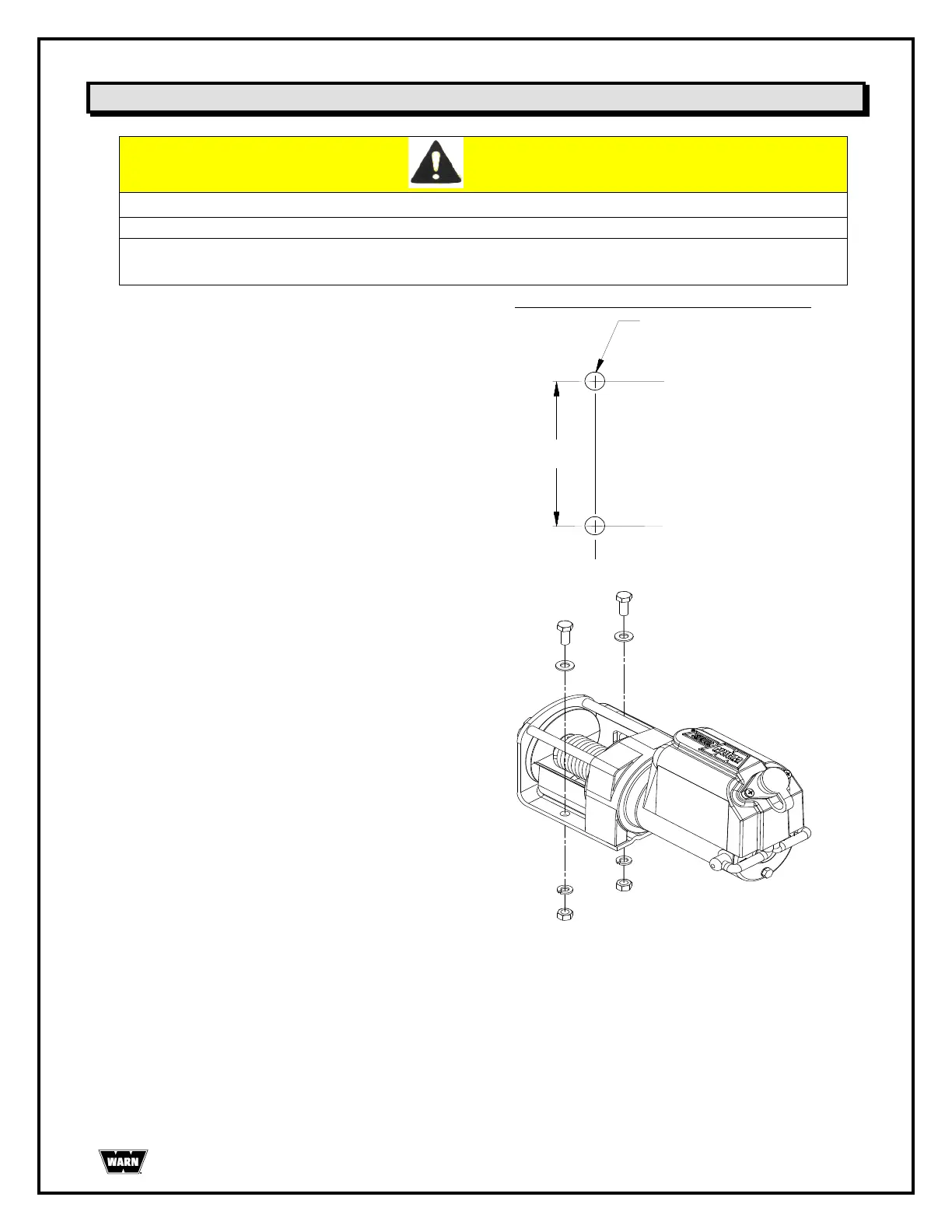

Next, drill two hole to the dimensions
specified in the drawing below.
5/16" [7.94 mm] DIA (2 plcs)
To secure the winch, always use:
▫ A flat, secure mounting location at
least 3/16 in. (4.8 mm) thick steel.
▫ 5/16 in. flat washer x 2.
▫ 5/16 in. lockwasher x 2.
▫ 5/16-18 x 1in. long, hex head
capscrew, Grade 5 or better x 2.
▫ Torque mounting bolts to 12 ft-lbs
(16.3 Nm).
Bolt length may need to be longer that
specified above depending upon the thickness
of the material the winch is mounted to.
