Warn 93790 - PARTS LIST; Component Identification; TORQUE SPECIFICATIONS; Fastener Tightening Guide

©2020 Warn Industries, Inc.WARN® and the WARN logo are trademarks of Warn Industries Inc. 3 107333A0
PARTS LIST
TORQUE SPECIFICATIONS
Please use the recommended torque specications when assembling this product unless otherwise specied in the instructions.
FASTENER SIZE FASTENER TORQUE FASTENER SIZE FASTENER TORQUE
lb-ft (N.m) M4 (2) 3
1/4" 8 (11) M5 (4.5) 6
5/16" 17 (23) M6 (7.5) 10
3/8" 30 (40) M8 (18) 25
7/16” 48 (66) M10 (37) 50
1/2" 74 (100)
9/16” 106 (144)
5/8" 148 (200)
3/4” 269 (364)
A2
B1
B2
B3
A1
**

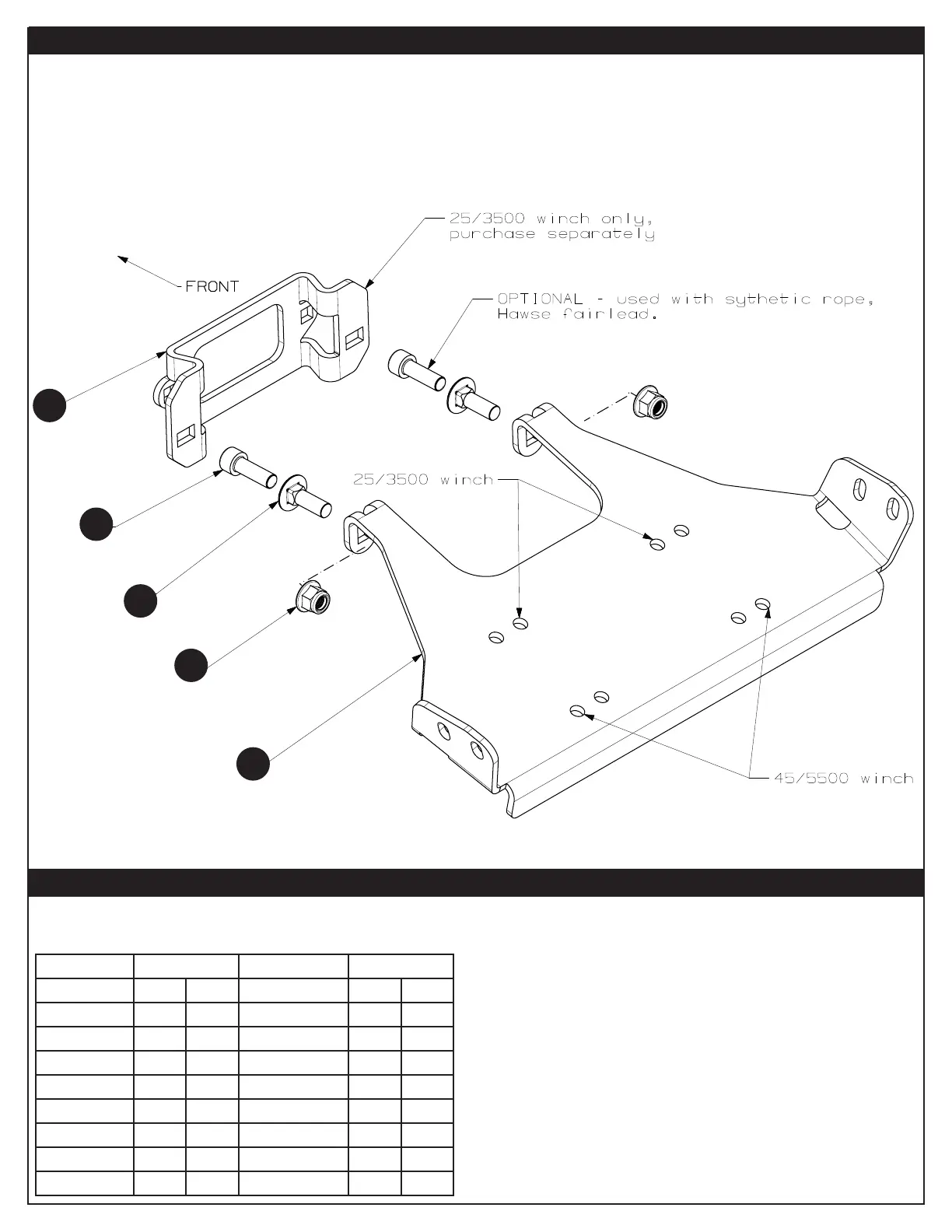

Item Part Number Description Qty.
A1 93792 Winch Mounting Bracket 1
A2 107335 *Fairlead Adapter Kit 1
Item Part Number Description Qty.
B1 85802 **M10 Hex Bolt 2
B2 101857 M10 Carriage Bolt 2
B3 87232 M10 Locknut 2
*
