Warn 99963 - Installation; Mounting Plate Hole Pattern

PAGE 8 99387 Rev. A0
Winch Installation to fixed location
CAUTION
Winch Failure Hazard
Failure to observe these instructions could lead to minor or moderate injury.

Always choose a mounting location that is sufficiently strong to withstand the loads you
intend to winch
The 5000 can be mounted to a fixed location by utilizing the mounting hole pattern for the winch unit.
First, choose a mounting location that is sufficiently strong enough to withstand the loads you intend
to winch.
Next, drill four holes to the dimensions specified in the drawing below.

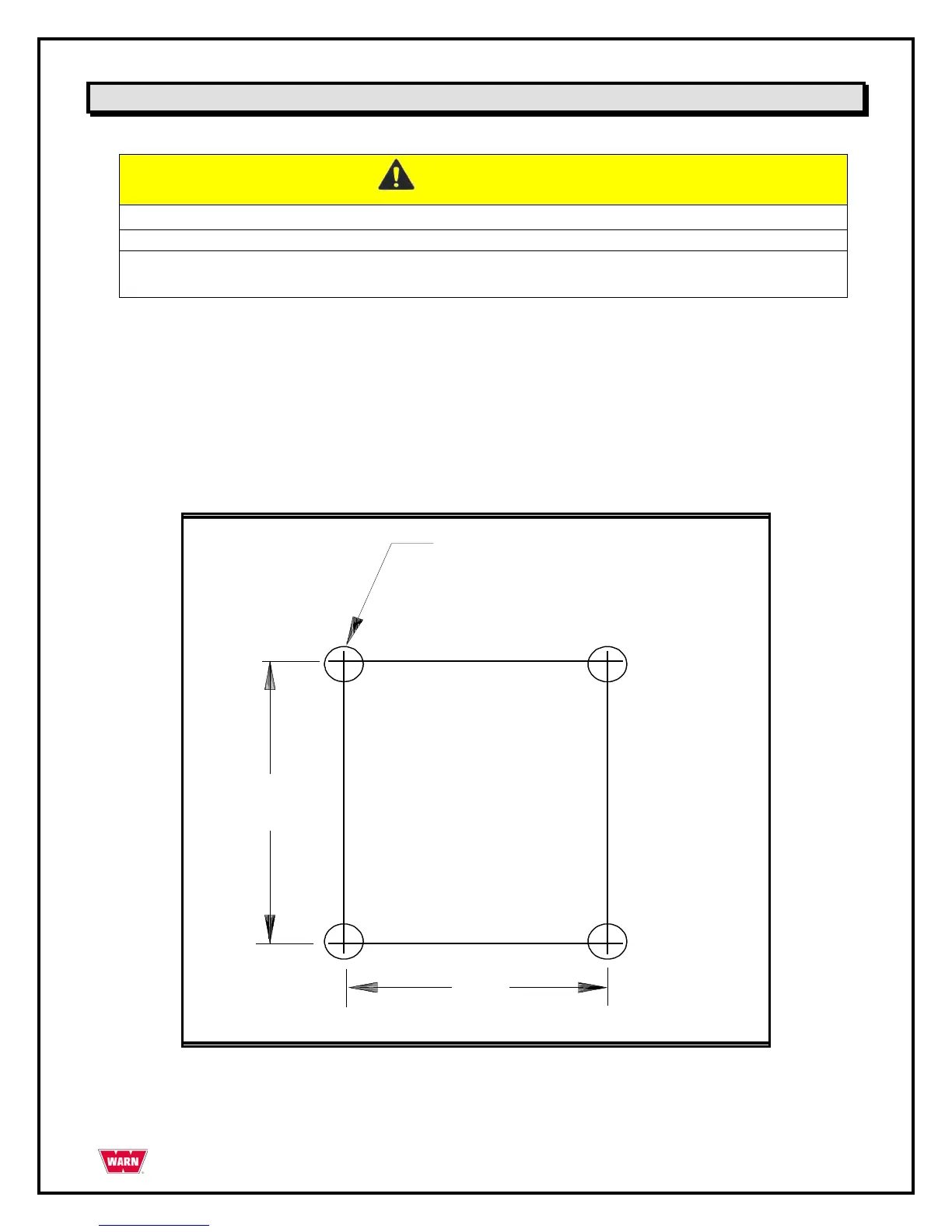

Mounting Plate Hole Pattern
3/8" [9.52 mm] DIA (4 plcs)
4.5"
[114mm]
4.25"
[107.95
mm]
