Warn 99963 - Specifications; Performance Data; Dimensional Data

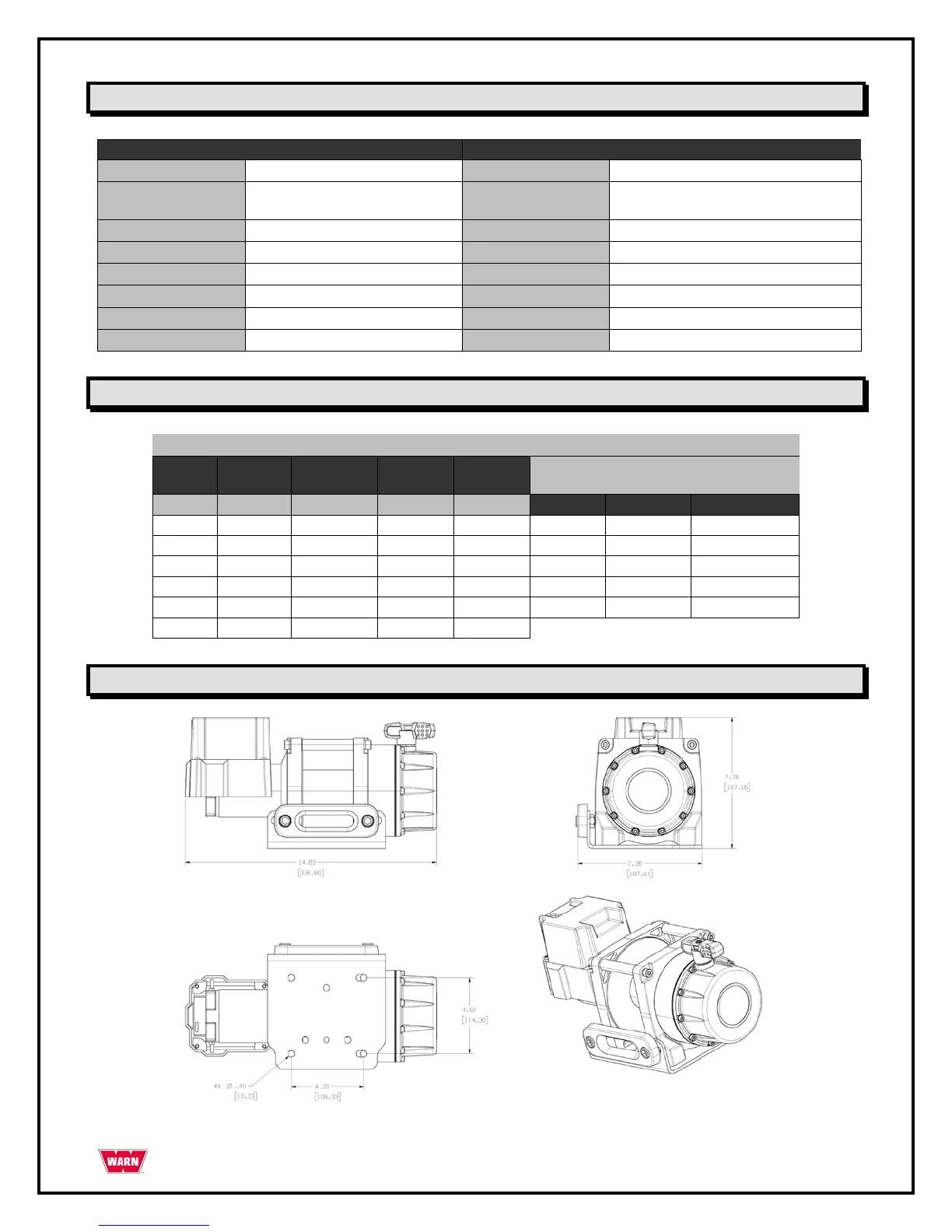

PAGE 7 99387 Rev. A0
Specification Data for the WARN
®
5000
FEATURES
Pulling Capacity
5000lbs. (2268 kg)
Brake
Dynamic and mechanical braking
Switch Type
Remote with 12’ (3.7 m)
Lead
Warranty
1 year limited
Motor
Permanent Magnet
Wire Rope
1/4" (6.35 mm) X 60' (18.3 m)
HP
1.9 HP 3.0" Diameter
Drum Diameter
2.5" (6.35 cm)
Power
12 volt DC
Fairlead
Hawse
Gear Train
3-Stage planetary
Hole Pattern
4 holes
Gear Ratio
216:1
Electrical Leads
2 – 6’ (1.8 m) x 6 gauge cable
Clutch
Lever- Multi-directional
Weight
42 lbs. (19.1 kg.)
Performance Data for the WARN
®
5000
PERFORMANCE DATA: 5000
Load
Current
Speed
Pulling Power by Wire Rope
Layer
Lbs.
Kg
Amps
Ft/min
M/min
Layer
lbs.
kg
0
0
40
13.8
4.2
1
5000
2268
1000
453.6
81
10.9
3.3
2
4280
1941
2000
907.2
118
9.3
2.8
3
3750
1701
3000
1360.8
152
8.1
2.5
4
3341
1515
4000
1814.4
188
6.8
2.1
5
3020
1369
5000
2268
220
5.4
1.6
Dimensional Data for the WARN
®
5000
