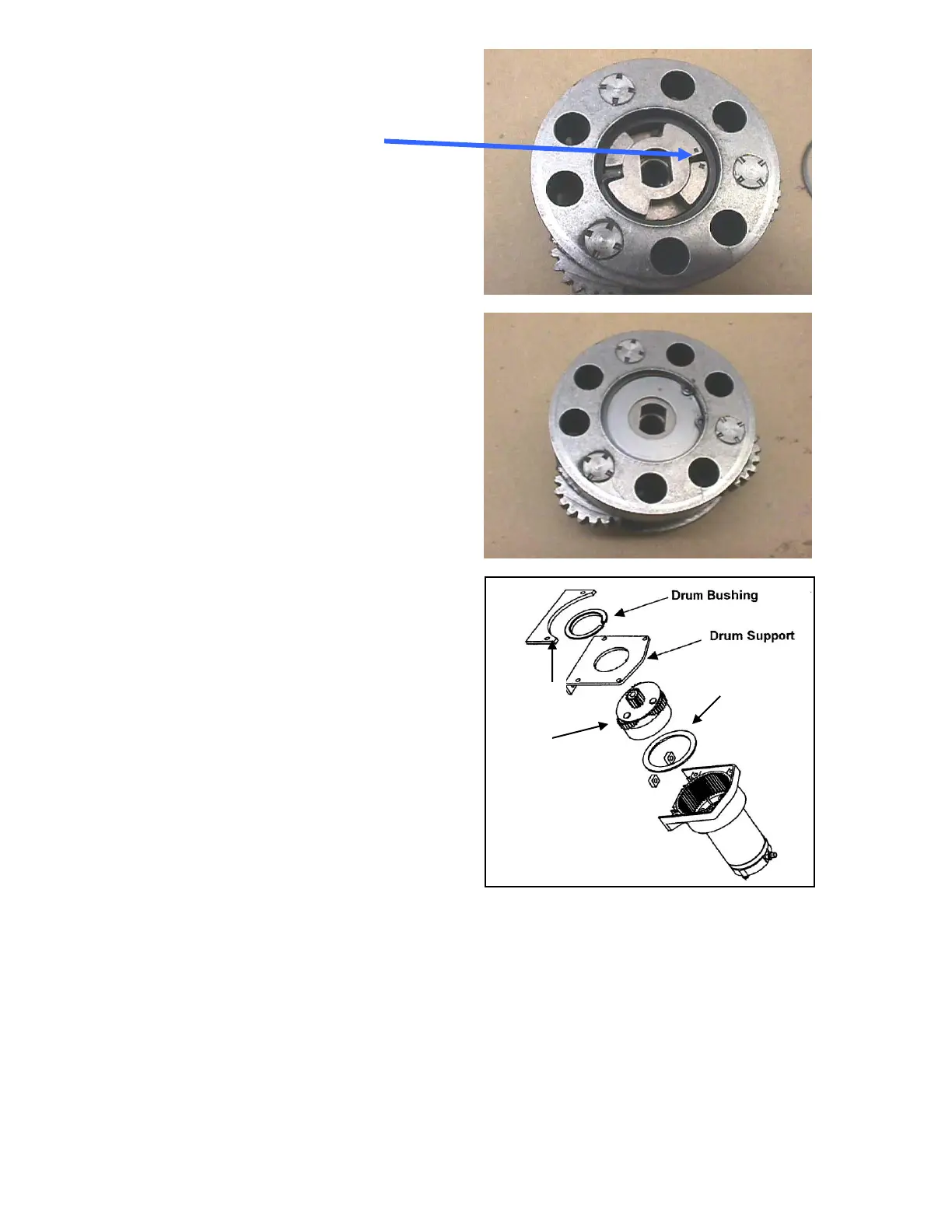

Grease & replace input gear with
spring tab fitting under, being sure to
match small square index marks
located on both gear tabs.
(Index marks together)
Replace washer and retaining ring (flat
side up)
Check brake function by inserting
flat screw driver in in-put gear,
rotating in-put gear forwards,
backwards with hand restriction on
planetary gears.
Verify thrust washer is inside motor
housing and motor bolts do not extend
inside motor housing cavity.
Re-install brake to motor shaft,
mounting nuts flat side out, drum
support plate, and cable protector.
Tighten ¼-20x1/2 screws.
Replace drum bushing and lightly coat
with grease.
Reinstall motor as outlined in the
winch basic assembly instruction in
section 2.3.
