©2019 Warn Industries, Inc. WARN® and the WARN logo are trademarks of Warn Industries Inc. 2 105938A0
1. Disconnect battery cables. All work with electrical
wires and cables must be completed with the battery
completely disconnected from the vehicle wiring.
2. Remove winch from vehicle and place on at stable
surface.

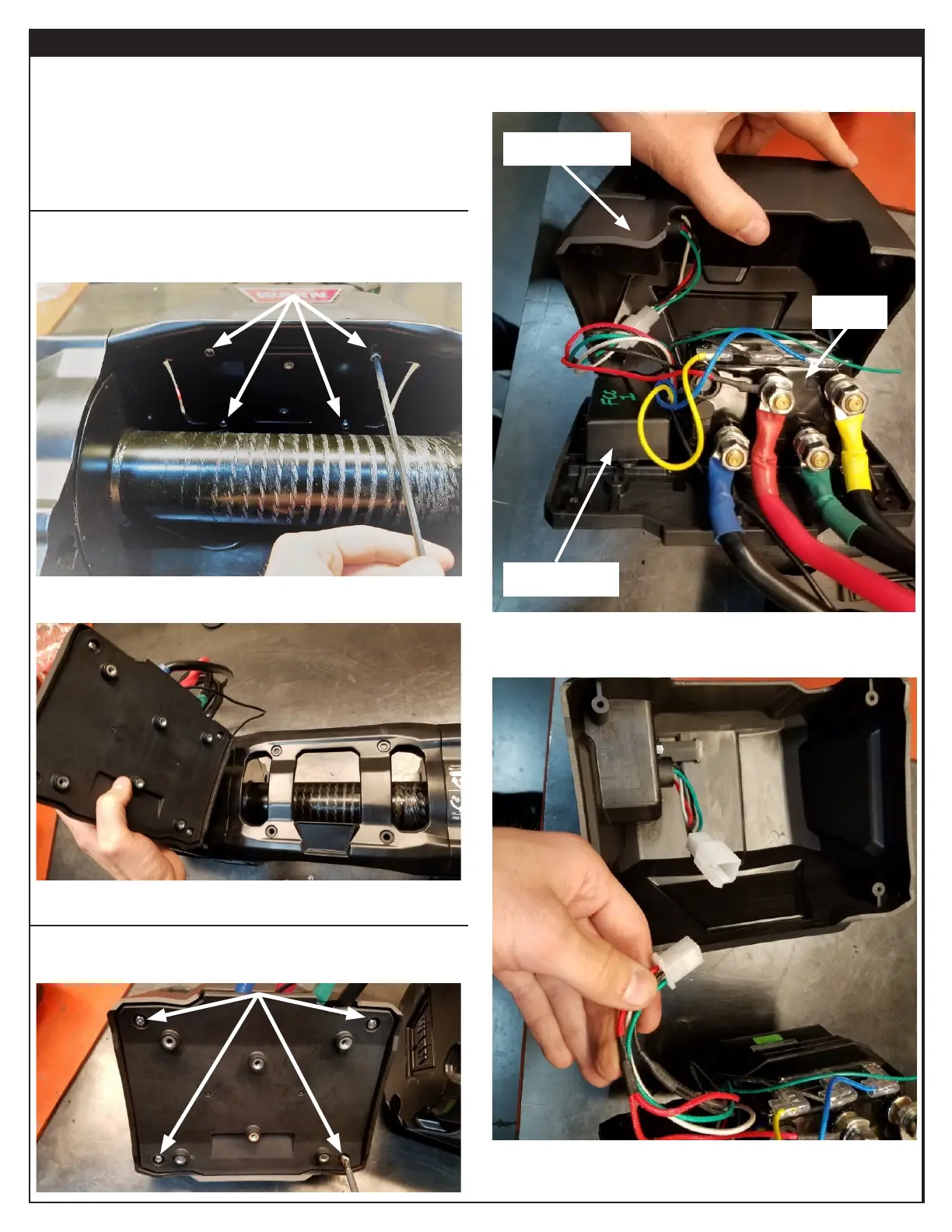

REMOVING CONTROL PACK FROM WINCH
NOTE: Retain all original hardware for reinstall.
1. Using an Allen wrench, remove the four control pack cap
screws.
2. Remove control pack from tie plate.
REMOVING CONTROL PACK COVER FROM BASE PLATE
1. Using a Phillips screwdriver, remove the four screws
securing the base plate to the control pack cover.
REMOVAL INSTRUCTIONS
2. Pull control pack cover away from base plate to expose
internals.
3. Disconnect harness from remote socket and set cover
aside.
Control pack cover
Control Module
Contactor
To Next Page
