2 Structure
2.1 Dimensions

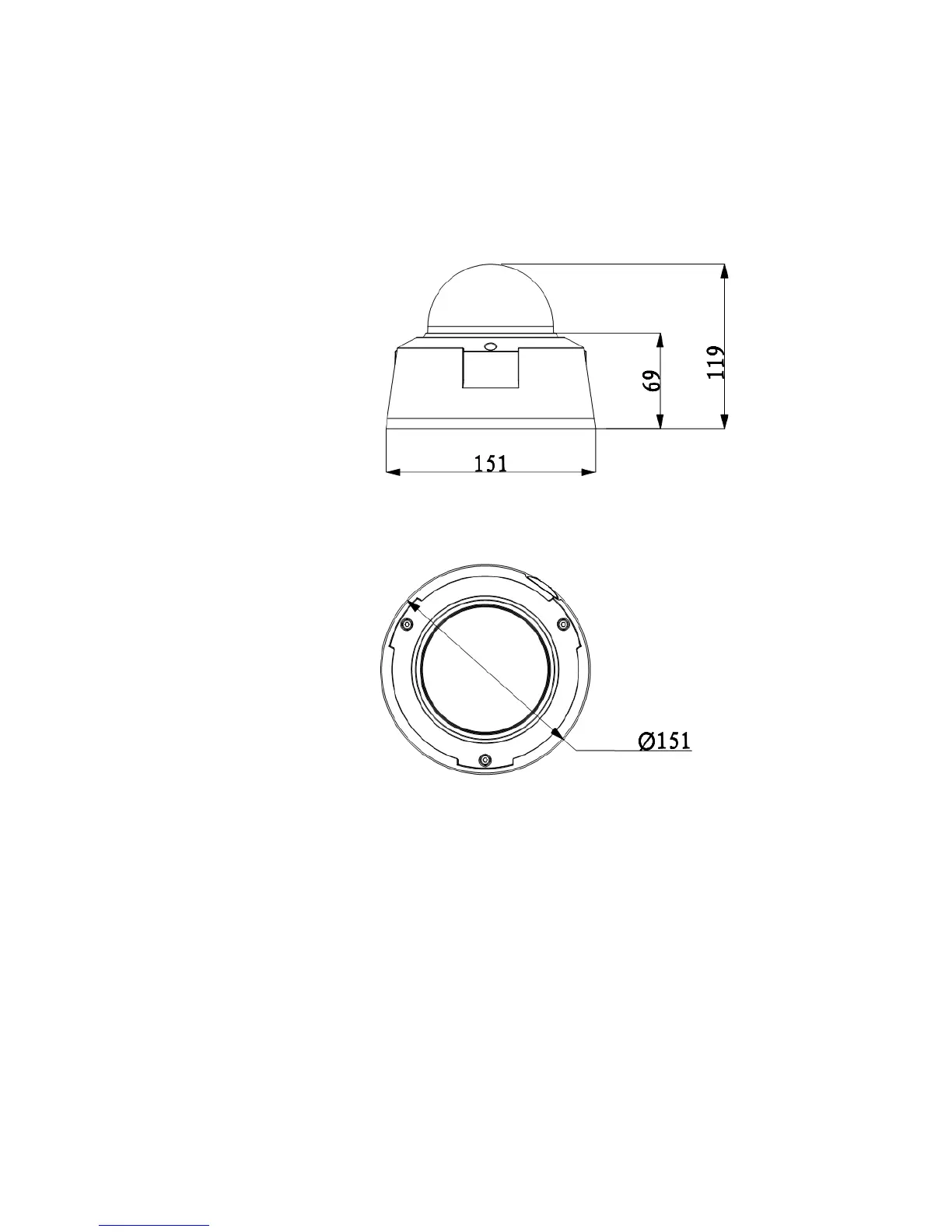

You can refer to the following figures for dimension information. The Unit is mm. See Figure 2-1 and
Figure 2-2.
Figure 2-1
Figure 2-2
2.2 Port Description
For the MPIX-20VDV-IRM product, the interface is shown as in Figure 2-3 and Figure 2-4.
Note: Don’t connect multiple power sources to the camera. Damage to the camera will not be
covered by warranty.
