WatchNet MPIX Series - Page 19

13

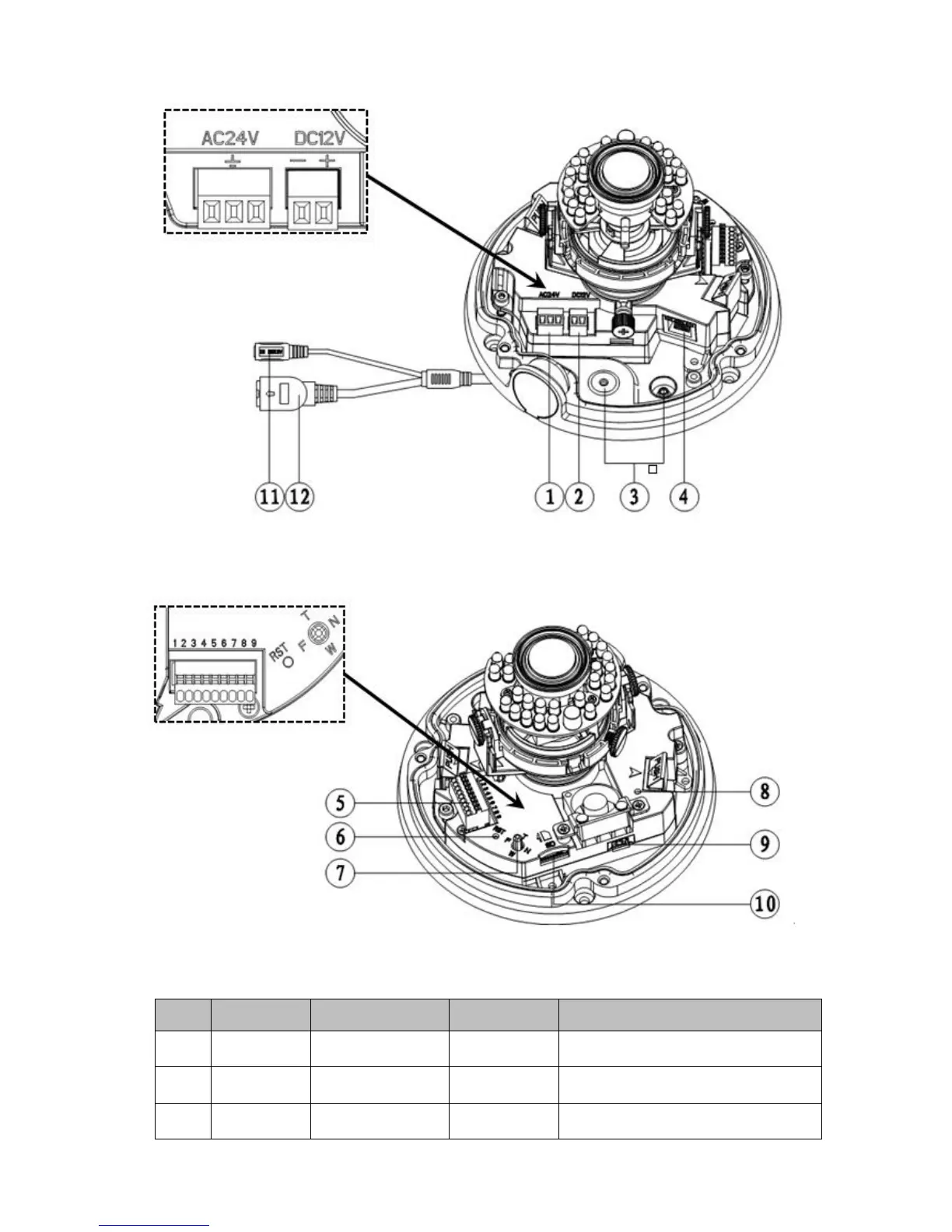

Figure 2-5
Figure 2-6
Please refer to the following sheet for external connection port definition information.
SN
Port
Port Name
Connector
Function Description
1
POWER
AC 24V power
port
/
Connect to AC 24V power.
2
POWER
DC 12V power
port
/
Connect to DC 24V power.
3
Cable exit
of the
/
/
Cable exit.
