Assembly and Parts, Cont.
Drive End Cap Assembly

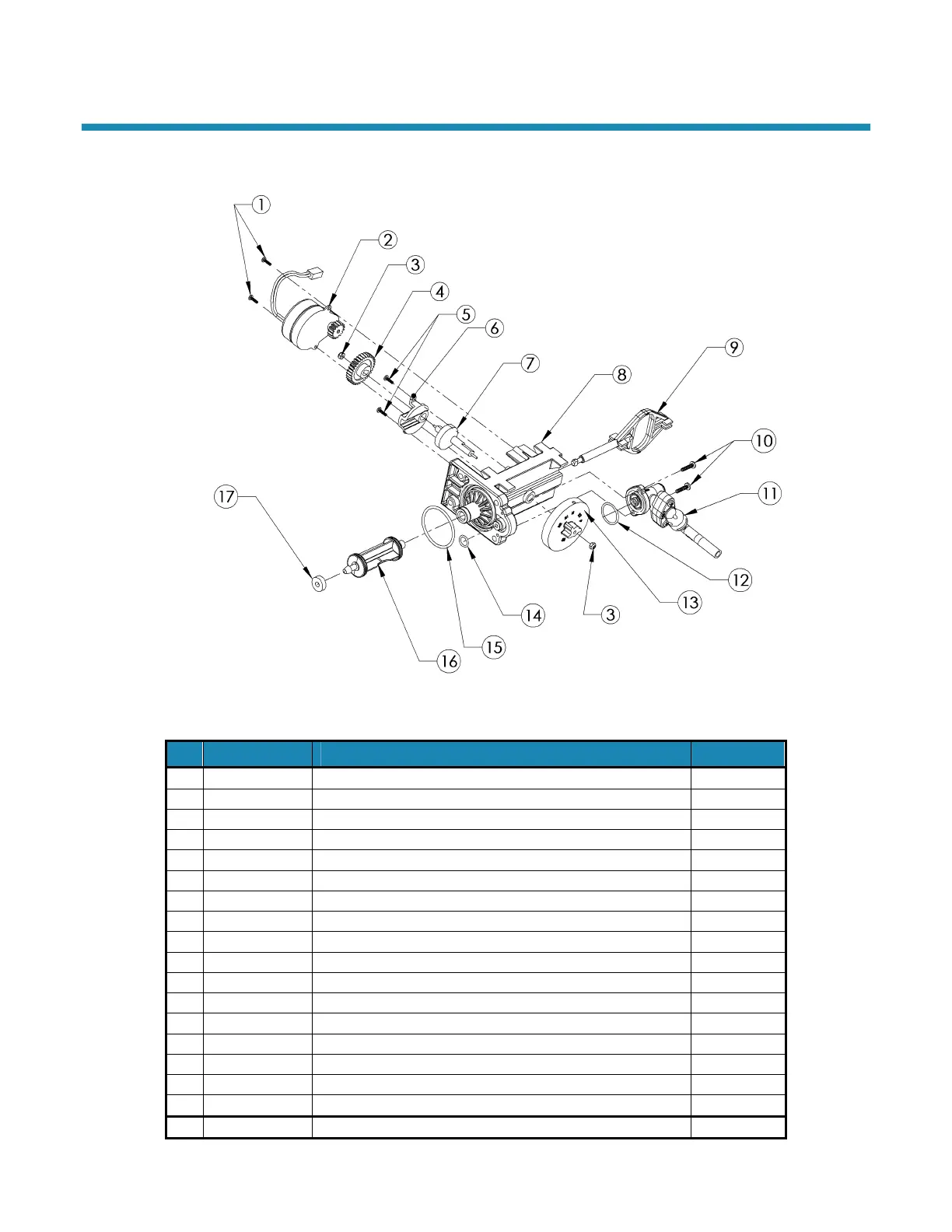

Figure 18: Drive End Cap Assembly
Part # Description Quantity
1 90802 Screw, self-tapping 2
2 90217 Drive Motor 1
3 93891 1/4" Hex Nut 2
4 93238 Drive Gear 1
5 90809 Screw, self-tapping, Cam Cover 2
6 93219 Piston Slide Cam Cover 1
7 93217 Piston Slide Cam 1
8 93583 Drive End Cap 1
9 54202 Piston Slide 1
10 90818 Screw, self-tapping 2
11 54521 Brine Valve Assembly 1
12 90821 O-Ring 1
13 54502 KIT Magnet Disk Assembly 1
14 90828 O-Ring 1
15 93808 O-Ring 1
16 53322 Drive Piston Assembly 1
17 93839 Drain Gasket 1
54520 Entire Assembly (all of the above parts except 1, 2, and 13)
WaterBoss Softener Owner’s Manual 12/2/2010 26
