Installation Tips
How to Use the Quick-Connect Fittings
To connect:
• Push the tubing into the tting until you reach the mark on the tubing.
NOTE: If the tubing is not fully inserted, it will cause leakage.
• When the tubing is fully inserted, put the blue lock clip on the tting. It will lock
the tubing in place and prevent it from falling off.
To disconnect:
• Remove the blue lock clip from the
tting;
• Use your thumb and index nger to
press down on the lock sleeve. Use
your other hand to pull out the tube
from the tting (Figure 2).
NOTE: Please do not pull out the
tubing directly, or else it will damage
the tting and cause leakage.

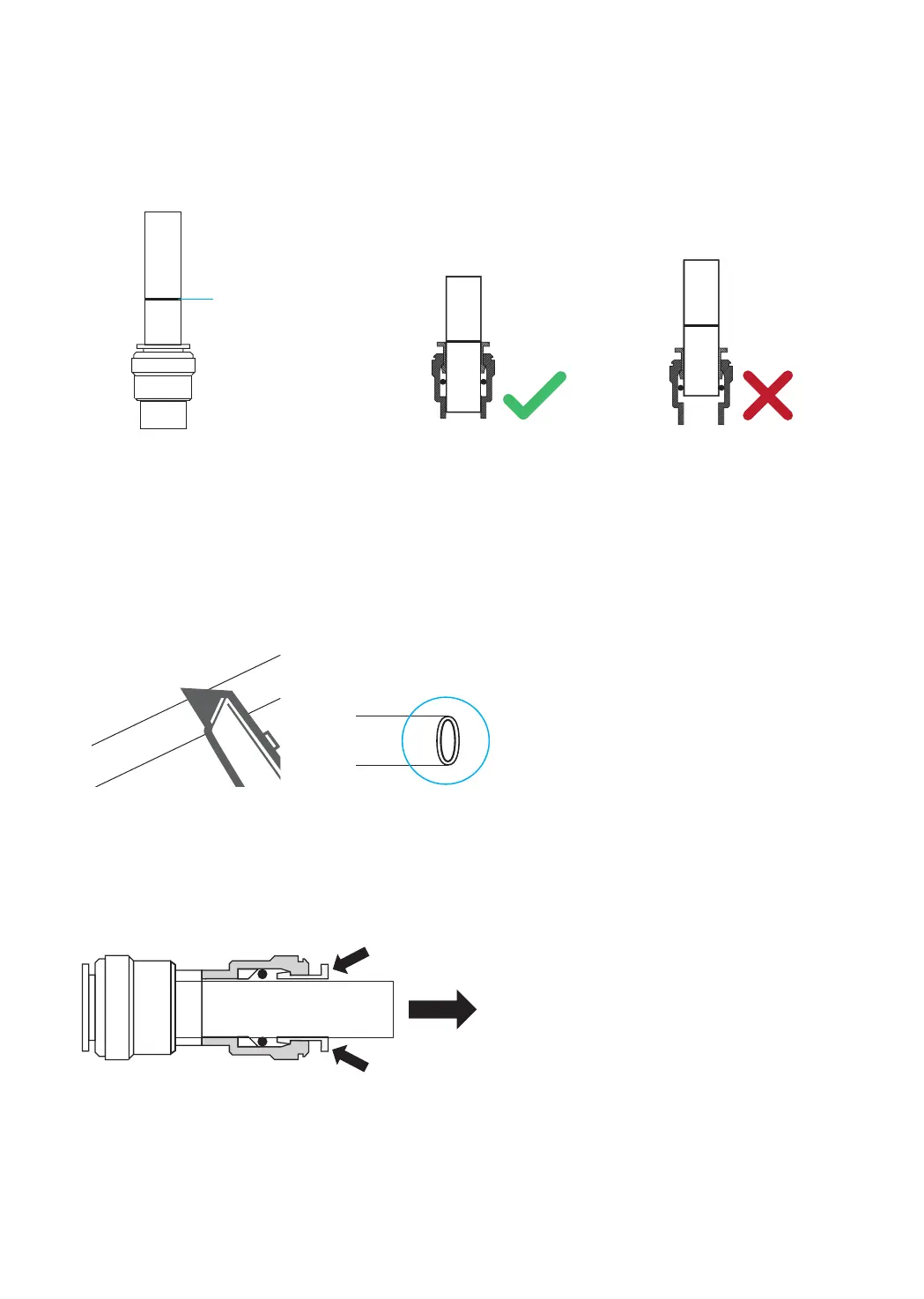

Figure 1
Figure 2
NOTE: If the tubing is too long,
cut it to a suitable length with a
sharp utility knife or scissors. Cut
the tubing squarely and cleanly
(Figure 1). Make sure the tubing
is fully inserted (about 4/5”).
Mark for
Full Insert
Cut Cleanly
and Squarely
