2. Align the two captive screws on the cradle with the holes on the bracket,
and tighten the screws with the Phillips-head screwdriver.
3. Align the screw holes on the bottom of the bracket - with the screw holes
along the bottom of the sample manager door.
4. Insert screws into the bottom of the bracket, and tighten the screws to
attach the bracket to the bottom of the sample manager door.
5. Continue installing the LCC according to the procedure in the
ACQUITY UPLC LCC Installation Instructions.
1
2

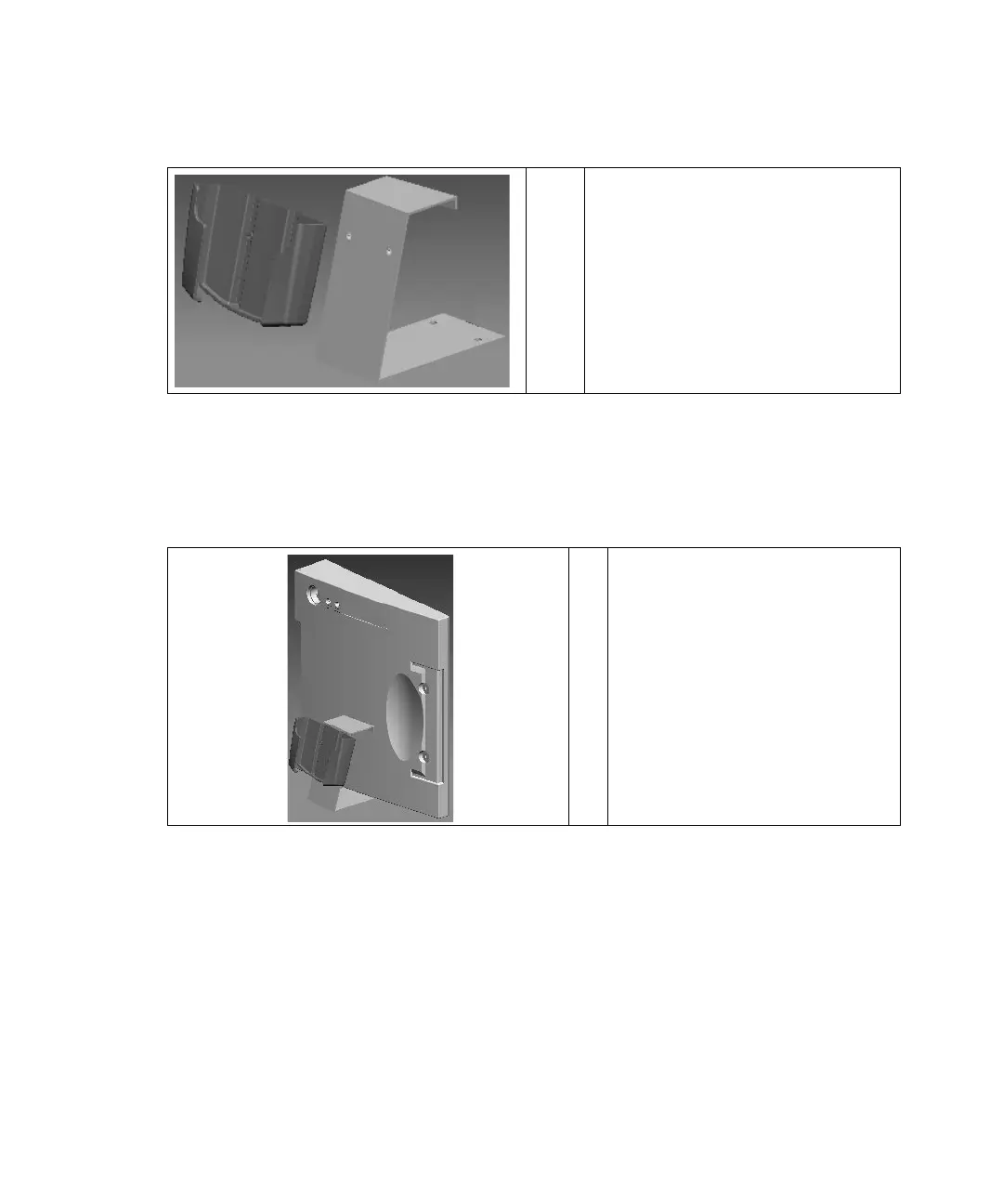

Cradle
Bracket
1
2
Sample manager door
Cradle and bracket installed on
door
