Watson-Marlow 520DuN IP66/NEMA 4X User Manual 96

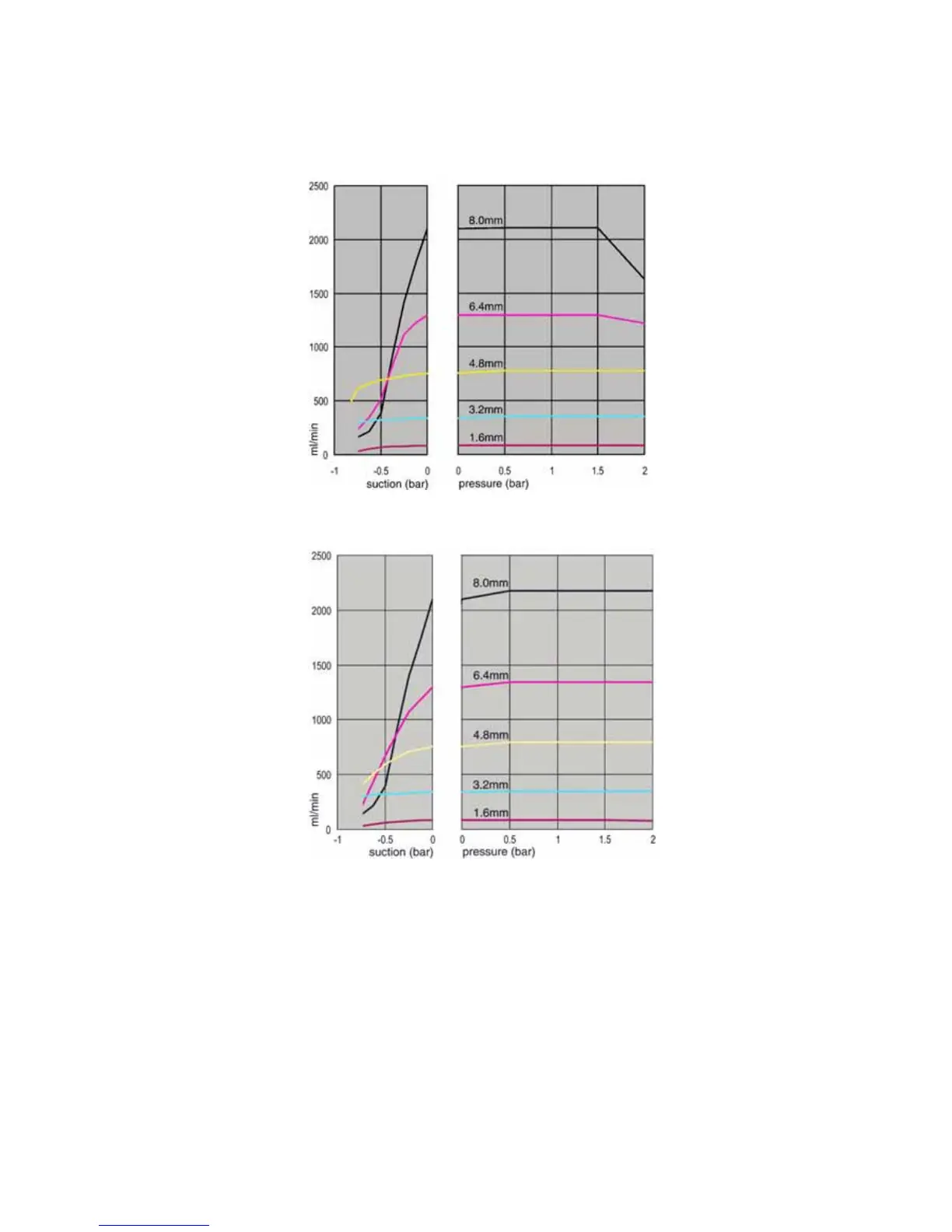

Performance curves

Marprene continuous tubing, 1.6mm wall, 200rpm, clockwise rotation

Marprene continuous tubing, 1.6mm wall, 200rpm, counter-clockwise rotation
