5 Seven User Guide | INS-SVN-USER | watsonfurniture.com
USING SEVEN POWER AND DATA

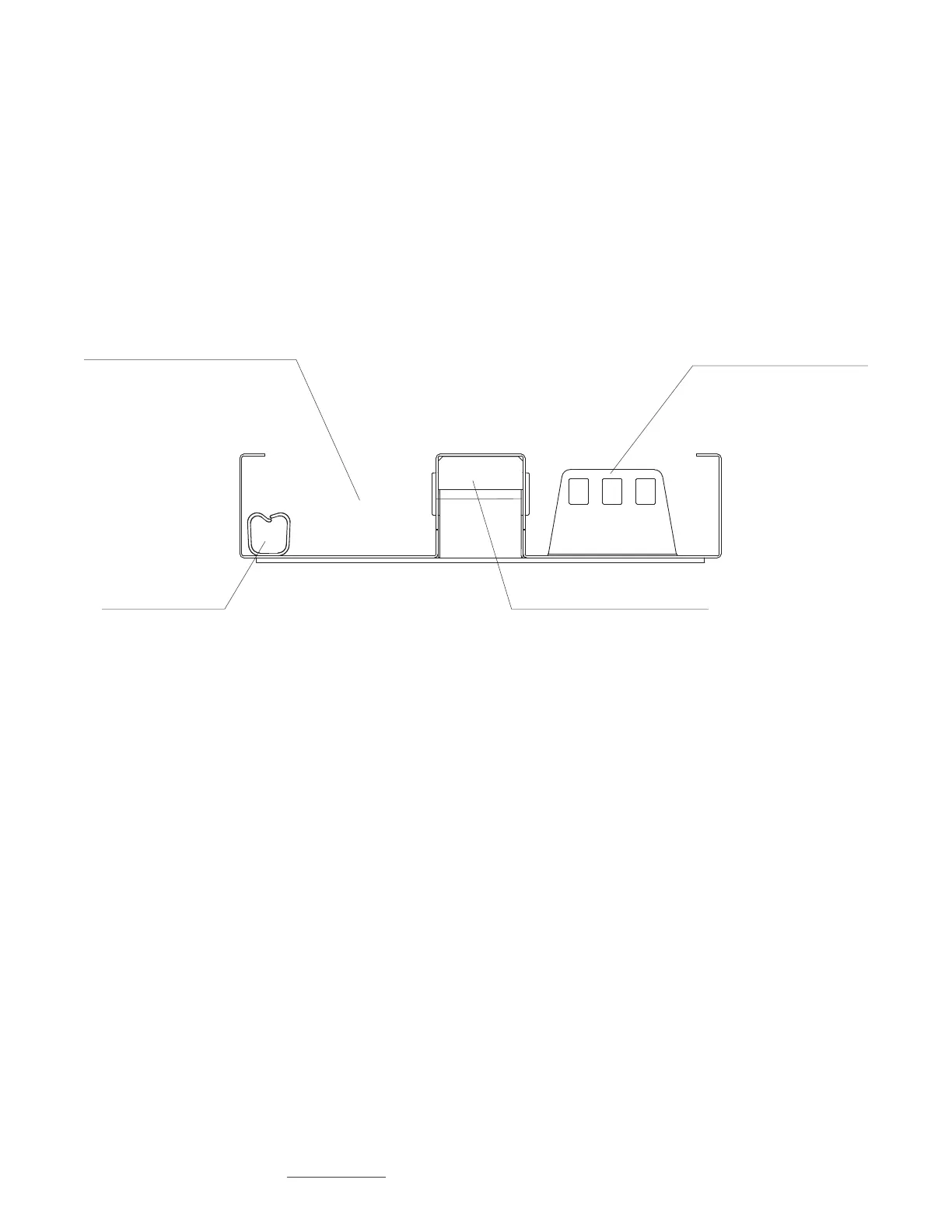

Data Cable Clips
Insert for Data Jumpers
Free Space for Wire Routing
Power Block and Outlets
The Seven Raceway unit features a modular power
distribution 8-wire, four circuit manufactured wiring
harness system. Seven modular power distribution
is based on a power raceway furnishing consisting of
power blocks, preconfigured outlets, jumper cables
between power blocks, and power feed for hardwire
connection to building power supply.
Each raceway segment consists of one power raceway
furnishing with either 4 or 8 outlets per user. They are
rigidly mounted within a raceway which allows access
from above via phenolic lids and under via cable
openings. Communication and data cabling can be
routed inside the raceway via the included plastic clips
to support a technology rich environment. They are
facilitated with telecom plates for data jumpers located
in the power raceway furnishing.
