WATSON SEVEN User Manual

6 Seven User Guide | INS-SVN-USER | watsonfurniture.com

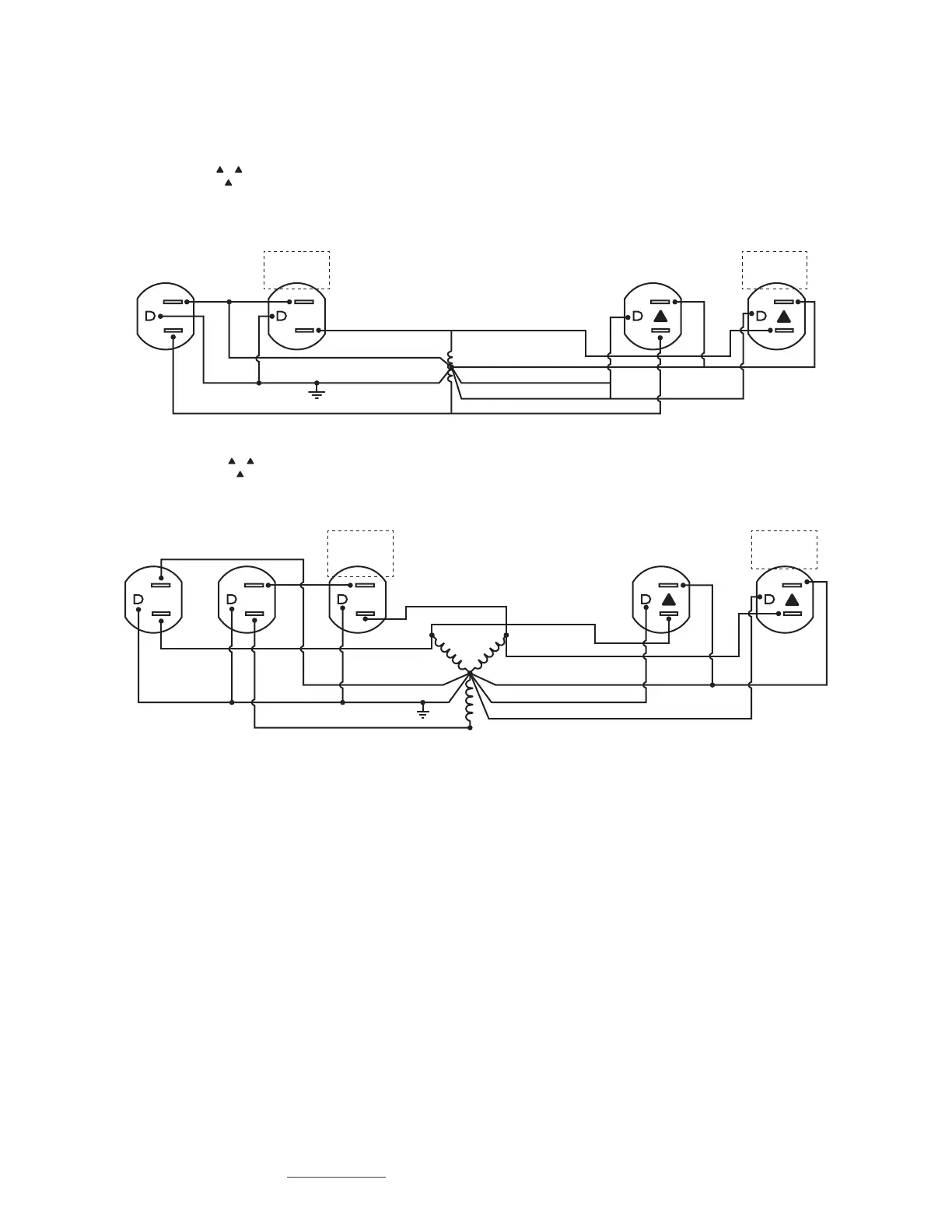

WIRING SCHEMATIC
BLACK
WHITE/BLACK
WHITE/RED
GREEN OR BARE
GREEN/YELLOW
GREEN/YELLOW 2+2
BLUE 2+2BLUE
PINKBLACK
2+2
CIR. 1
DUPLEX
3+1 ONLY
2+2 ONLY
CIR. 4
DUPLEX
CIR. 3
DUPLEX
CIR. 3
DUPLEX
BLACK
WHITE/BLACK WHITE/RED
GREEN OR BARE GREEN/YELLOW
GREEN/YELLOW 2+2
BLUE 2+2
BLUE
PINK
2+2
CIR. 1
DUPLEX
CIR. 2
DUPLEX
3+1 ONLY
2+2 ONLY
CIR. 4
DUPLEX
CIR. 3
DUPLEX
CIR. 3
DUPLEX
WARNING: RISK OF FIRE OR ELECTRIC SHOCK. THIS OFFICE FURNISHING SYSTEM MAY BE CONNECTED TO MORE THAN ONE SOURCE
OF SUPPLY. ALL SOURCES MUST BE DISCONNECTED PRIOR TO ANY SERVICING. NO SINGLE CIRCUIT MAY BE POWERED BY MORE THAN
ONE SOURCE.
120 / 240V 1 ph
FOR 2+2 USE CIRCUITS 1, 3 , 4 ONLY
FOR 3+1 USE CIRCUITS 1, 3, 4 ONLY
CIRCUIT 2 CAN NOT BE UTILIZED
WITH 120/240V
120 / 208V 3 ph
FOR 2+2 USE CIRCUITS 1, 2, 3 , 4 ONLY
FOR 3+1 USE CIRCUITS 1, 2, 3, 4 ONLY
MAX 20AMPS PER CIRCUIT
MAXIMUM SEGMENTS CONNECTED:
12 STANDARD POWER
6 HEAVY POWER
MAX 20AMPS PER CIRCUIT
MAXIMUM SEGMENTS CONNECTED:
12 STANDARD POWER
6 HEAVY POWER
