12
IS-A2C-SC-IntelliFlow 2102 © 2021 Watts

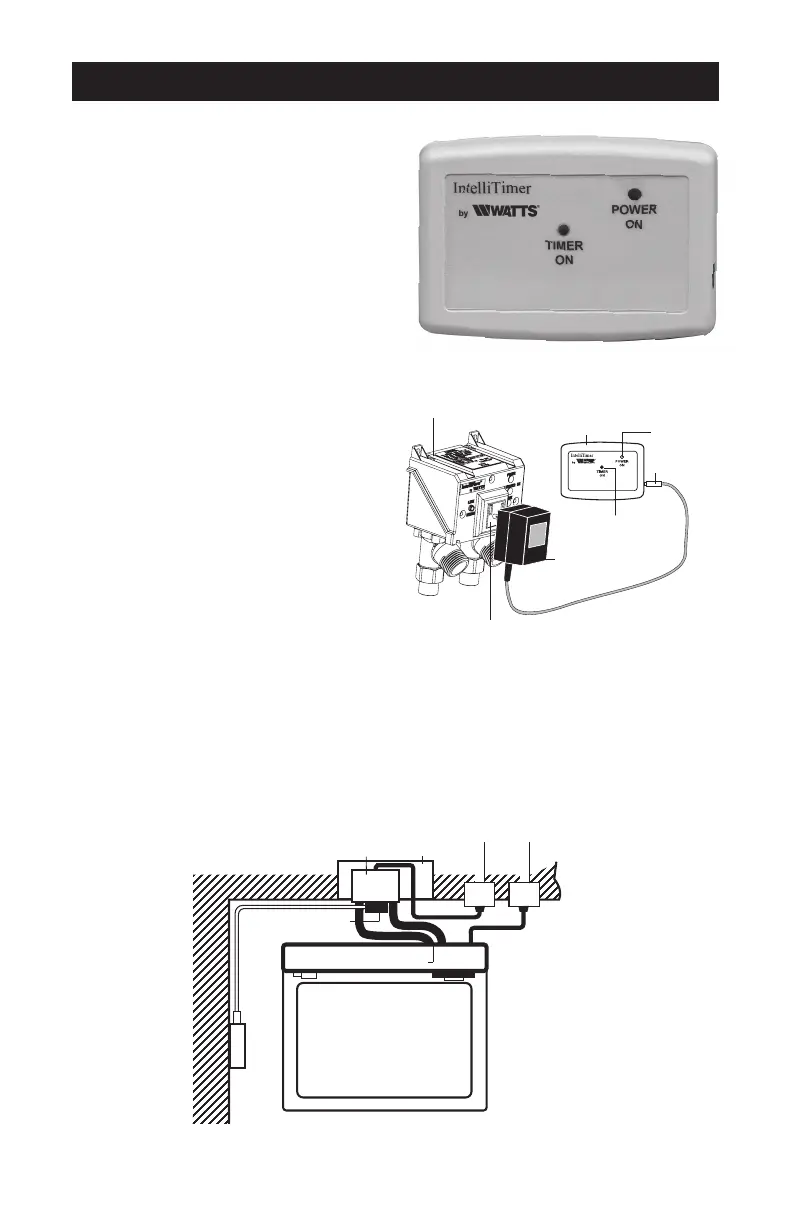

Accessories: Watts A2-IntelliTimer
The Watts A2-IntelliTimer is an optional
accessory used in conjunction with the
Watts IntelliFlow Washing Machine Smart
Water Shutoff. It is a remote timer which
allows the IntelliFlow to be used in appli-
cations where the washing machine or a
combination washer/dryer is 240VAC pow-
ered. (The IntelliFlow is not compatible with
240VAC powered appliances). The timer
initiates a two-hour cycle when the button is
depressed.
The A2-IntelliTimer low-voltage power supply
is plugged into the IntelliFlow power outlet.
The remote solid-state timer is installed in a
location that is convenient to the user and
connected to the low-voltage power supply.
Activation of the push button on the timer
causes current flow, which is detected by
the IntelliFlow. The IntelliFlow then actuates
the solenoid valves, allowing water to flow
to the washing machine. This also begins a
timing sequence of two hours, which, upon
its completion de-energizes the IntelliFlow,
shutting off the flow of water to the wash-
ing machine. The timing sequence can be
interrupted by activating the push button a
second time.
A Green LED is illuminated whenever the
A2-IntelliTimer is energized.
Push On
Push Off
Power Lamp
Power Jack
Low Voltage
Power Supply
IntelliFlow
Power Outlet
IntelliFlow
Power Cord
IntelliTimer
Typical Installation
IntelliFlow
Washer Hoses
Washing
Machine
Low Voltage
Power Supply
IntelliTimer
Wall Box
Power to
IntelliFlow
Power to
Washing
Machine
120
VAC
240
VAC
To Next Page
