Power MUST be off during installation or servicing of the valve!
Do not plug valve into supply circuit until completion of assembly.
Installing the A2C-SC IntelliFlow
®
1. Shut off electrical power supply to the electrical receptacle to be used with the IntelliFlow.
2. Shut off both hot and cold water supply lines.
3. If retrofitting to an existing installation, disconnect the washing machine hoses from the
existing shutoff valve(s).
4. Loosen the two (2) adapter nuts and remove both adapters from IntelliFlow valve body.
5. Place adapter nuts over piping prior to soldering adapters.
6. Solder adapters onto piping.
NOTICE
Piping must be 2
3
⁄8" on center (Figure 3).
7. Place O-rings on adapter grooves (Figure 3A).
8.
Align and slip the valve body over adapters. Tighten adapter nuts.
NOTICE
For Vertical Installation Only!

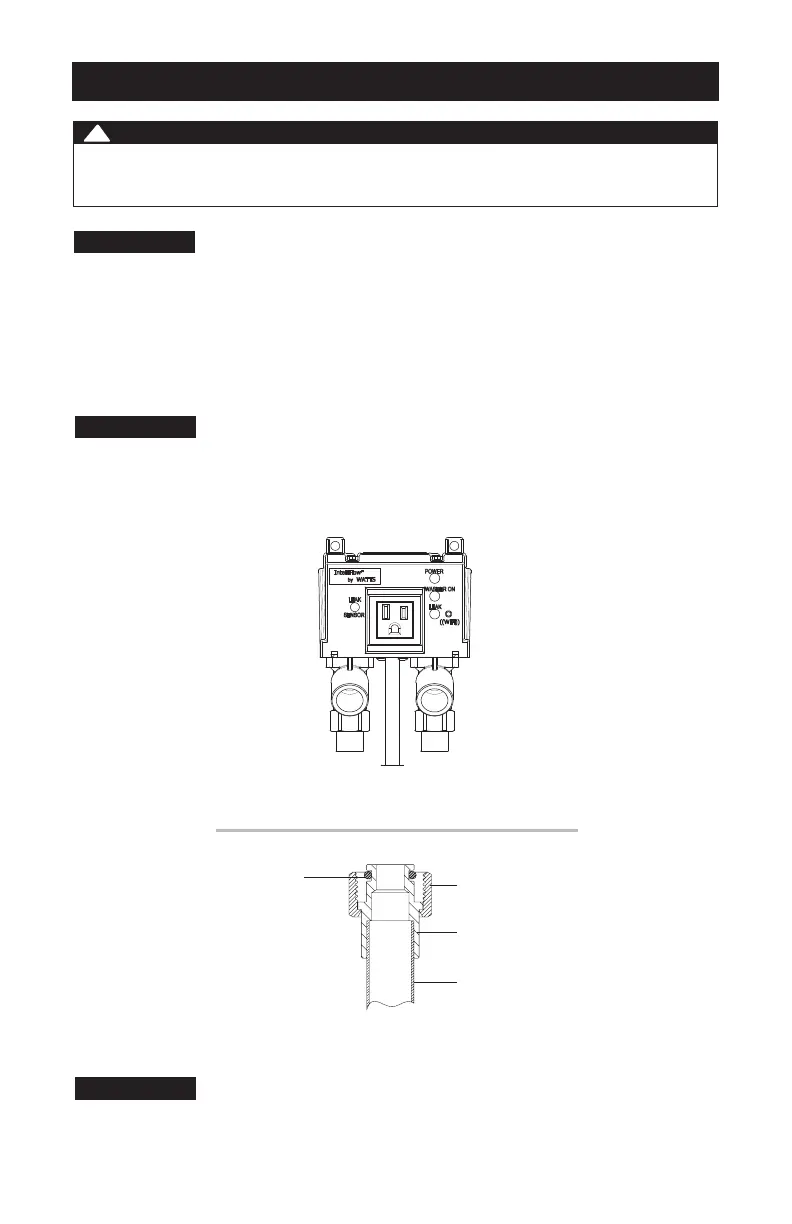

Figure 3
2
1
⁄2"
Install Upright
Figure 3A
O-Ring
Adapter Nut
Adapter
Water Supply Piping
NOTICE
Use of the IntelliFlow
®
Washing Machine Smart Water Shutoff outlet for appliances
other than a washing machine is not recommended and voids the warranty.
