Preparation
Tools Required ----------------------------------------------------------------------------------------- -----------------------------------------------------------------------------------------
• tekmar or jeweler screwdriver
• Phillips head screwdriver
• Needle-nose pliers
• Wire stripper
Materials Required ------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------
• 18 AWG LVT solid wire (low-voltage connections)
• 14 AWG solid wire (line-voltage connections)
• Four 1/8" - 1" wood screws
Installation Location
Installation

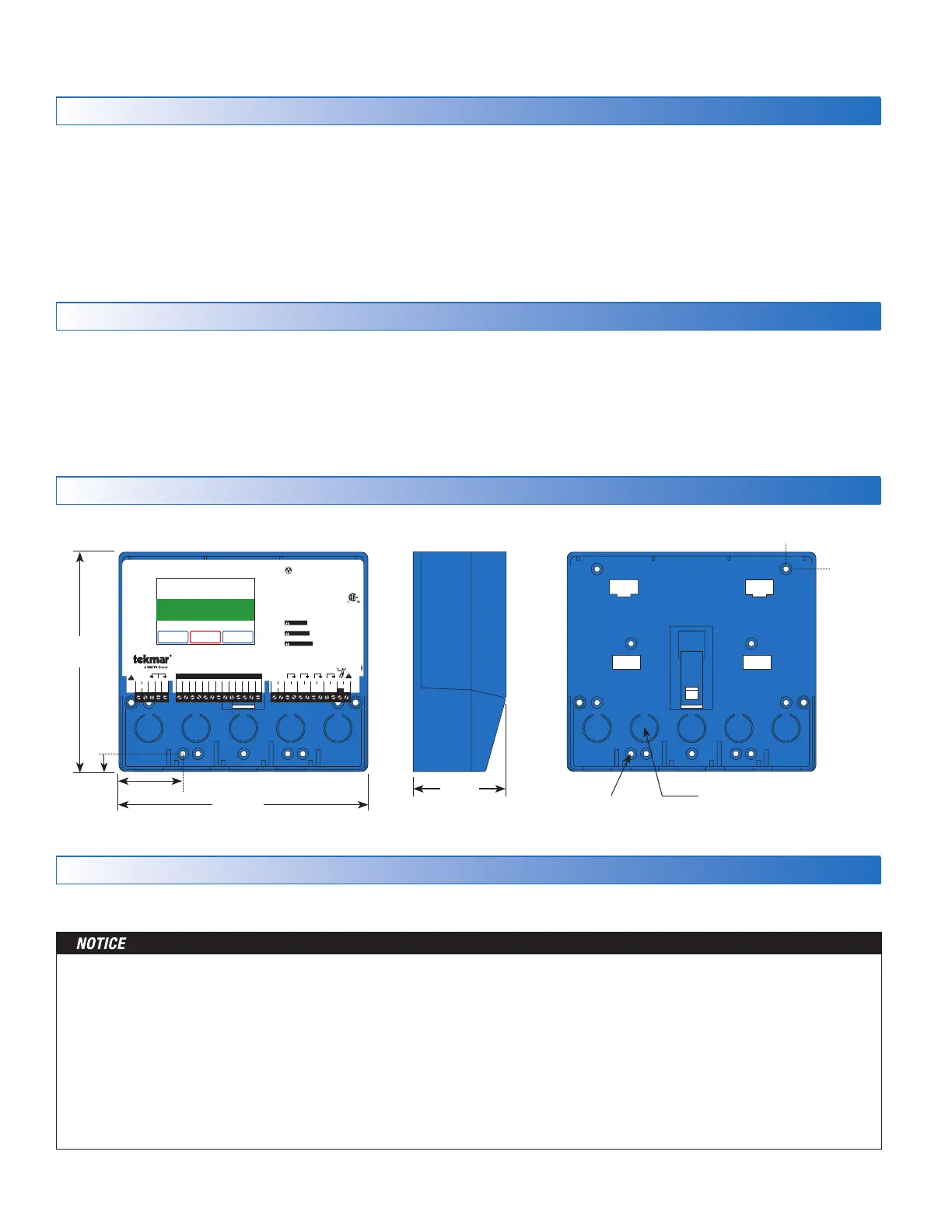

Physical Dimensions
Choose the placement of the control early in the construction process to enable proper wiring during rough-in.
• Keep the control dry. Avoid potential leakage onto the control.
• Maintain relative humidity less than 90% in a non-condensing environment.
• Avoid exposure to extreme temperatures beyond 32-122°F (0-50°C).
• Install away from equipment, appliances, or other sources of electrical interference.
• Install to allow easy access for wiring, viewing, and adjusting the display screen.
• Install approximately 5 feet (1.5 m) off the finished floor.
• Locate the control near pumps and/or zone valves if possible.
• Provide a solid backing which the enclosure can be mounted to. Example: plywood or wall studs.
• Use the conduit knockouts provided on the upper, lower, back and sides of the enclosure for wiring.
Packaging Contents
The following are included in the product packaging:
• 1 WiFi Snow Melting Control 670
• 3 Universal Sensor 082
• 1 Outdoor Sensor 070
• 1 screwdriver
• 1 Application Brochure 670_A
• 1 Installation and Operation Manual 670_D
• 1 User Manual 670_U
Front View
Side View
2–7/8"
(72 mm)
1/2" Knock-out
(x 5 back) (x 5 bottom)
Mounting Base
CL
1/2"
(13 mm)
7/8"
(23 mm)
6–5/8"
(170 mm)
7–5/8"
(193 mm)
1–7/8" (49 mm)
1/2"
(14 mm)
3/16" (5 mm)
20
Mod Boiler
19
WiFi Snow Melting Control 670
Boiler & Mixing / Electric
Power 115 V (ac) ±10%, 60 Hz, 20 VA
Relays 230 V (ac) 5 A 1/3 hp
Var. Pump 230 V (ac) 2.4 A
1084-01
Designed and assembled in Canada
Date Code
H2055A
1 kΩ max 1 kΩ max
Opn
3
Var
2
–
Mix V/mA
1
+
Pwr
4
Mix
Cls
5
Blu
8
Yel
9
Brn/
10
Slab
Man
11
Melt
C
12
Blk/
7
Com
Red
6
Boiler 1
21
Stage 1
Boiler 1
Stage 2
Heat
Relay
System
Pump–
22
+
23 24 25
Do Not Apply Power
Mix
15
Sup
Com
16
Boil
17
Out
18
Com
14
tN4
13 282726
Power
29
L
30
N
For product literature:
Pour la documentation du produit:
Para la literatura del producto:
tekmarControls.com
Disconnect all power before opening.
WARNING
Coupez l'alimentation avant l'ouverture.
ATTENTION
Desconecte la electricidad antes de abrir.
ADVERTENCIA
Signal wiring must be rated at least 300 V.
Le câblage du signal doit être d'une capacité d'au moins 300 V.
Cableado de señal debe tener una
calificación mínima de 300 V.
Contains WiFi transceiver:
FCC ID: Z64-CC3100M0DR1, IC: 4511-CC3100M0DR1
Meets Class B: FCC Part 15B, ICES-003
Manual Melt
Time Left
- - : - - hrs
Outdoor
32 °F
Settings Status
System is Melting
Stop
10:30 AM
Warming Up
