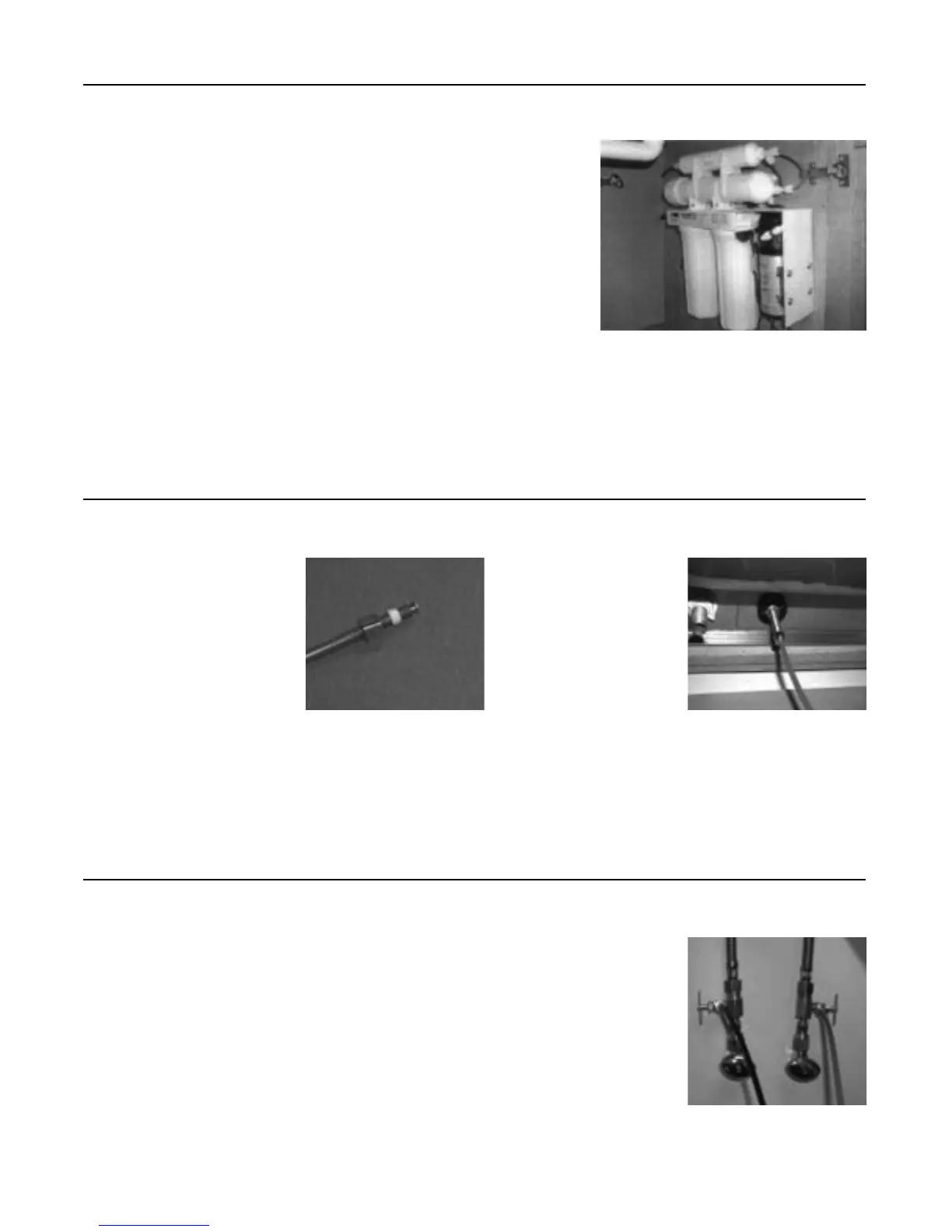

Mounting the RO module
Connecting to the faucet
Connecting hot and cold water supply lines
6
Step 12
Insert the blue tube into
the end of the faucet
shank and use a wrench
to tighten the brass nut
securely.
Step 11
Connect blue tube from in-line
filter to faucet shank. Place
the brass nut onto the tube,
followed by the plastic sleeve
(tapered end pointing to the
end of tube) and then place
the brass insert into the end
of the tube.
Step 10 Determine the best location for the RO Module to be mounted and
allow for future system maintenance. Use a Phillips screwdriver
and secure the screws 5
3
/4" apart and 16" from the bottom of
the cabinet.
Note: There will be (2) Blue, (1) Green and (1) Black coming
from the module. Do not cut these tubes at this time.
Step 13 Insert the Green tube into the Cold water needle valve fitting
1
/4" tube compression
fitting until it stops. Slide the Nut and Plastic Sleeve down to where you can thread
them onto the male pipe threads. Use a
1
/2
" wrench to securely tighten.
Step 14 Insert the Black tube into the Hot water needle valve fitting
1
/4" tube compression
fitting until it stops. Slide the Nut and the Plastic Sleeve down to where you can
thread them onto the male pipe threads. Use a
1
/2" wrench to securely tighten.
