3.5 Amp Components

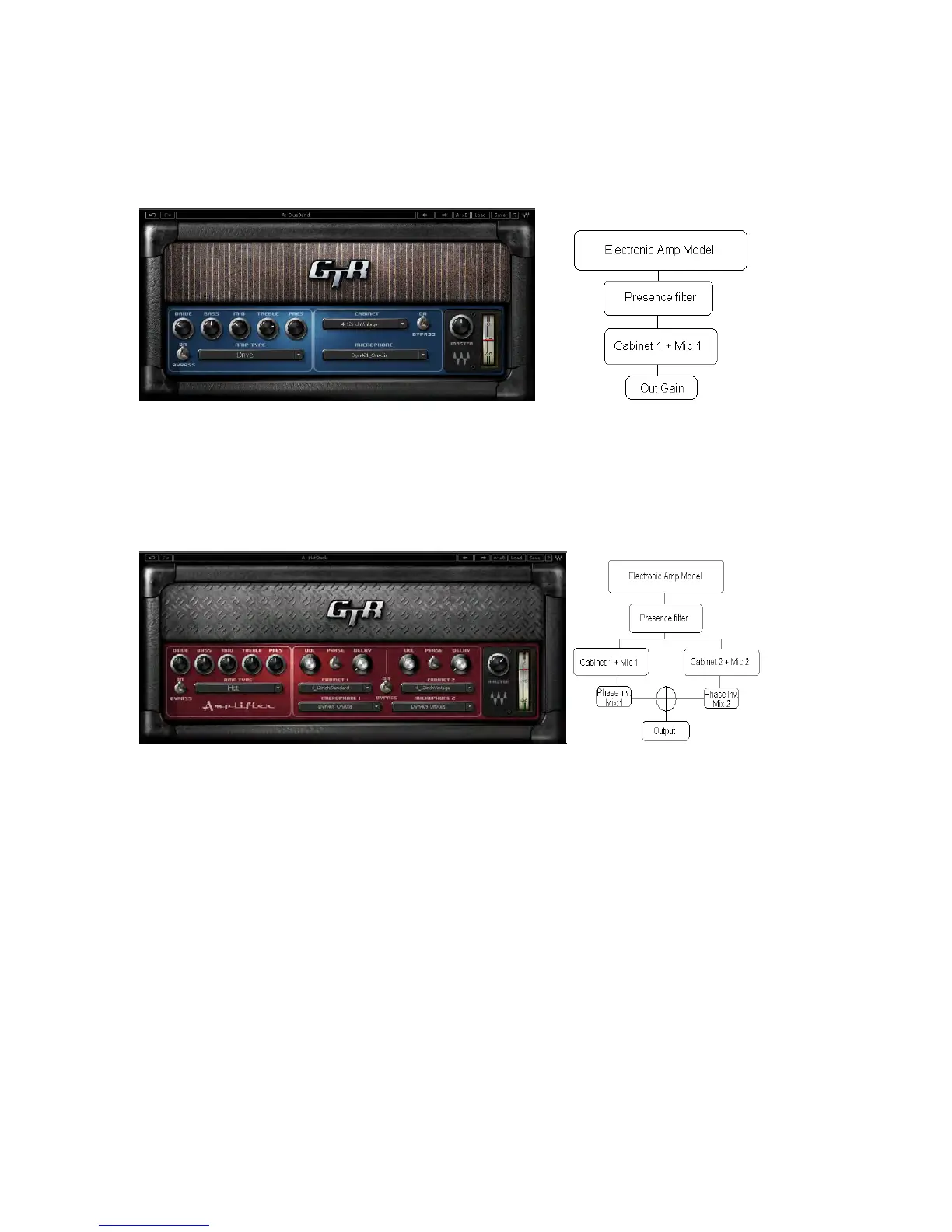

Mono Amp
The Mono Amp is the least CPU-intensive of the Amp components. It inputs and
outputs a Mono signal, running the output through a single Amp module and then
into a single cabinet/microphone filter.
Mono DualCab
The Mono DualCab amp is similar to the Mono amp in that it inputs and outputs a
Mono signal. The DualCab configuration lets you play the Amp’s sound through
two separate cabinets. This allows for combinations such as loading the same
cabinet with different microphones or using two different cabinets with the same
mic.
The outputs of the two sources are then mixed together to a single output. Each
cabinet has a phase switch and a volume control.
Please note: Selecting the same cabinet and microphone for both cabinets will
result in a normal Mono single cabinet sound. In this case, inverting the phase of
one of the two cabinets will result in a silent output.
Waves GTR Amp User Guide
14
