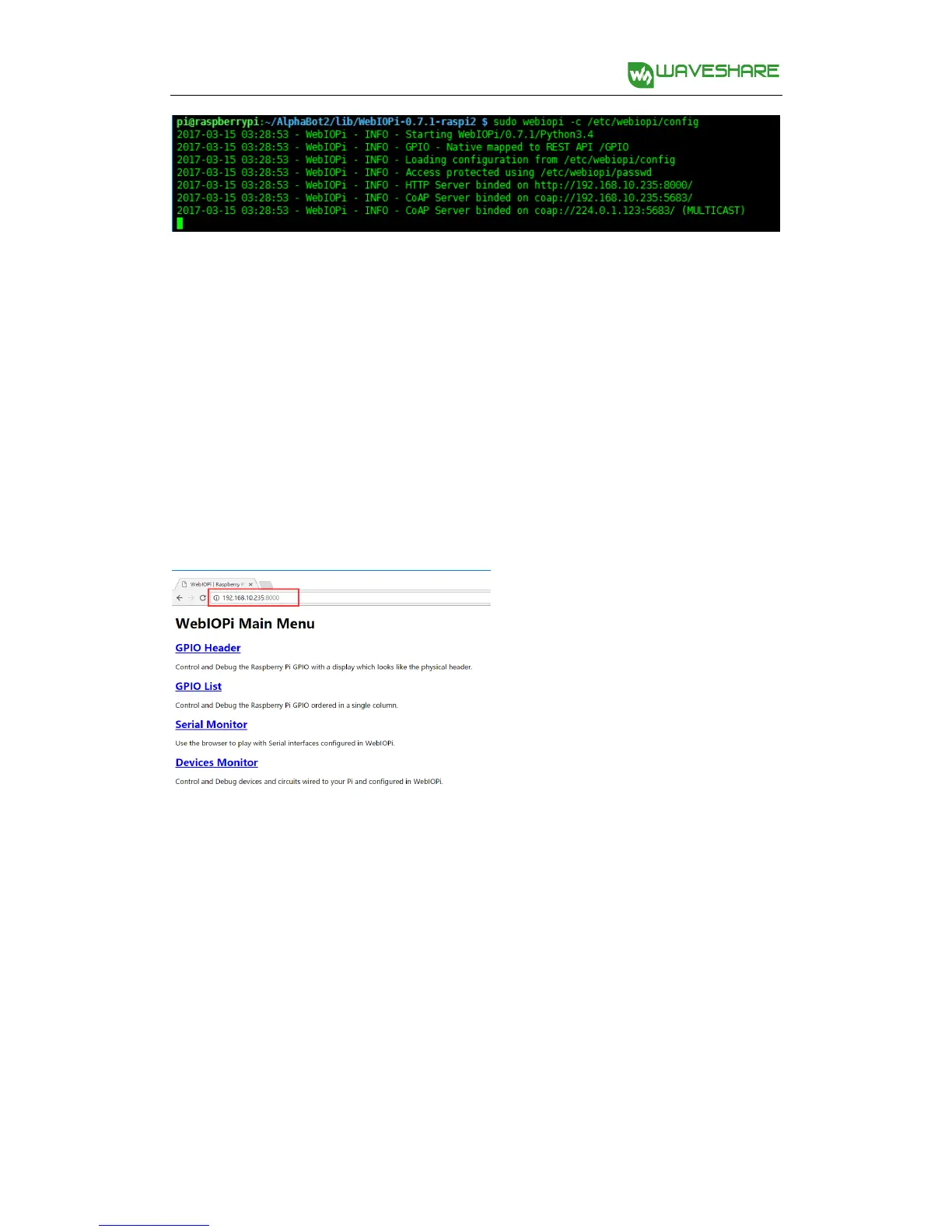

Then, open the browser on your PC or cell phone, and enter the IP address of RPi
and the port number: 8000 into the address bar. For example, input
http://192.168.1.16:8000 (the address can be changeable according to your actual
condition). To login the website, you should enter your account and password. The
default account name is webiopi, and the original password is raspberry. When
finished the steps above, if you can enter the webpage WebIOPi Main Menu, it
means the environment is configured well.
Click the option “GPIO Header”, then, you can see the interface below. In this
webpage, you can control the level of the GPIO.
