Waveshare SIM7000E User Manual

SIM7000E NB-IoT HAT User Manual
12
Rev1.0 June 8, 2018
share awesome hardware

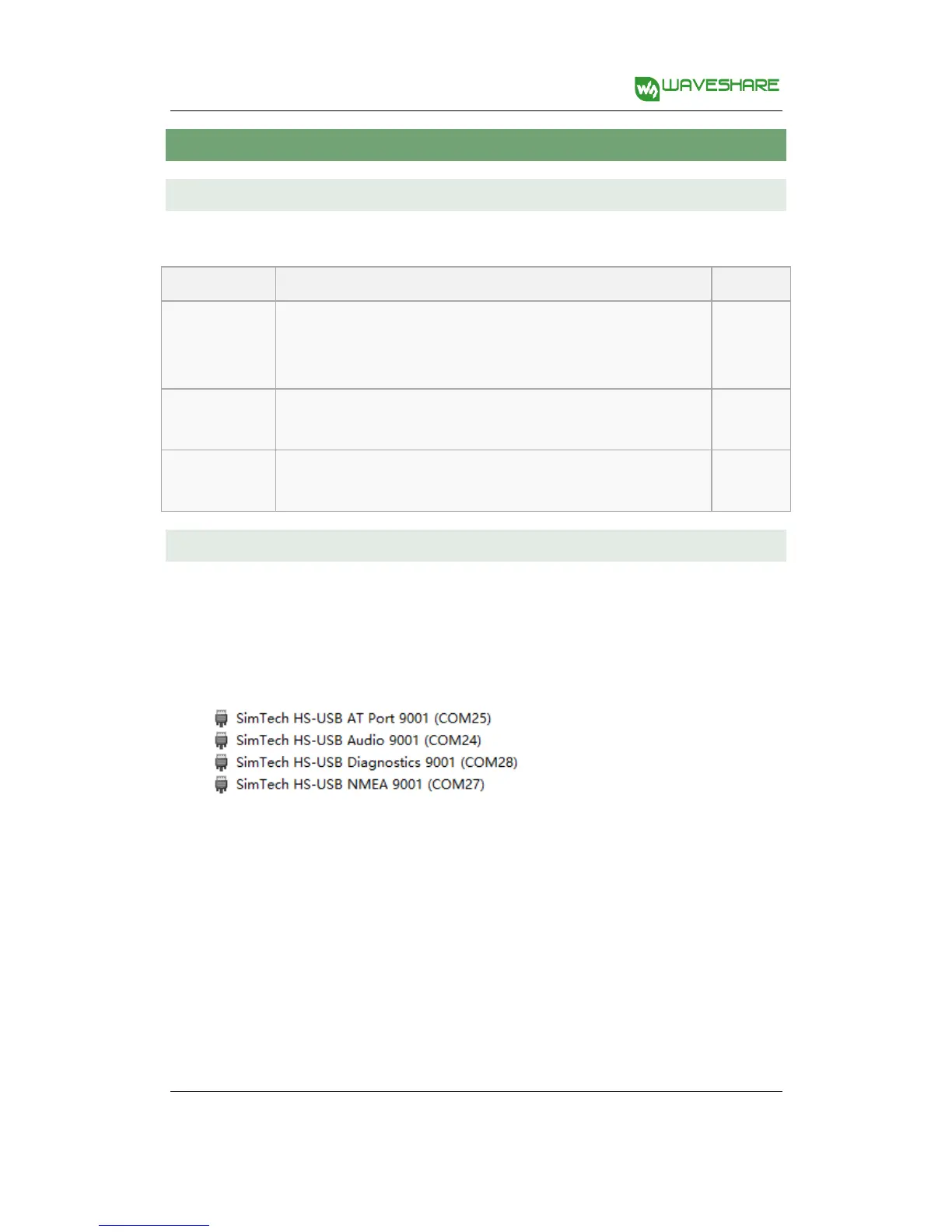

4. GNSS Debugging
4.1. General AT commands
Commands
Description
Return
AT+CGNSPWR
GNSS Power Control:
AT+CGNSPWR =1:Turn on
AT+CGNSPWR =0:Turn off
OK
AT+CGNSTST
AT+CGNSTST=1:Send data received to AT Port
AT+CGNSTST=0: Stop sending data received to AT Port
OK
AT+CGNSINF
GNSS navigation information parsed from NMEA sentences
+CGNSINF:
OK
4.2. GPS Debugging
1) Connecting the GPS antenna, and place the receiver on open area outdoor
2) AT+CGNSPWR=1 //Turn on power of GPS
3) AT+CGNSTST=1 // Start to sending data received to AT Port
Open u-center and set the Port and Baudrate(AT Port, COM25).
Of course, you can use another port(NMEA Port,COM27)
4) AT+CGNSTST=0 // Stop sending data received to UART
5) AT+CGNSINF // Print the GPS information
6) AT+CGNSPWR=0 //Turn off power of GPS

Waveshare SIM7000E Specifications

General

Module Type	SIM7000E
Category	Control Unit
Operating Temperature	-40°C to +85°C
LTE-TDD Bands	B34/B38/B39/B40/B41
GSM Bands	850/900/1800/1900 MHz
GNSS Sensitivity	-162 dBm
SIM Interface	1.8V / 3V
Control via AT commands	Yes
UART	Yes
Storage Temperature	-45°C ~ 90°C
Cellular Technology	LTE Cat-M1, NB-IoT, GSM/GPRS/EDGE
LTE Frequency Bands	B1/B3/B5/B8/B20/B28
Data Rate (LTE Cat-M1)	375kbps (DL), 300kbps (UL)
Data Rate (GPRS)	85.6kbps (DL), 85.6kbps (UL)
Data Rate (EDGE)	236.8Kbps (DL) / 236.8Kbps (UL)
GNSS	GPS, GLONASS, BeiDou
Interfaces	UART, I2C, SPI
UART Baud Rate	300bps to 115200bps
SMS	Supported
Antenna	External antenna connector
Certifications	CE, FCC
