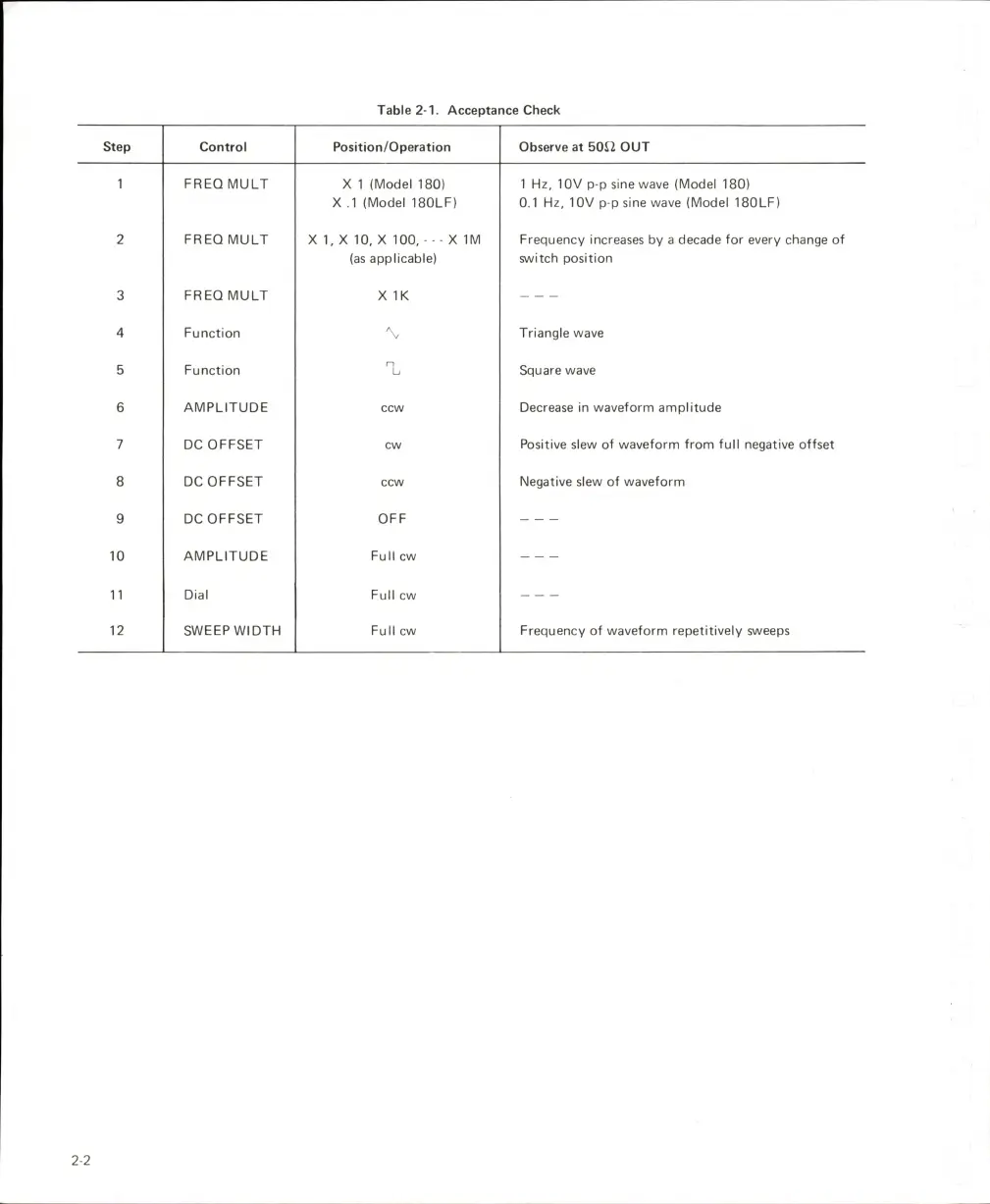

Table 2-1. Acceptance Check
Step Control Position/Operation Observe at 50SJ OUT
1
FREQMULT X 1 (Model 180)
X .1 (Model 180LF)
1 Hz, 10V p-p sine wave (Model 180)
0.1 Hz, 10V p-p sine wave (Model 180LF)
2
FREQ MULT
X 1, X 10, X 100, - - - X 1M
(as applicable)
Frequency increases by a decade for every change of
switch position
3
FREQ MULT
X IK
4
Function Triangle wave
5 Function "b Square wave
6 AMPLITUDE ccw Decrease in waveform amplitude
7
DC OFFSET
cw Positive slew of waveform from full negative offset
8
DC OFFSET ccw Negative slew of waveform
g
DC OFFSET OFF
10
AMPLITUDE Full cw
11 Dial Full cw
12 SWEEP WIDTH Full cw Frequency of waveform repetitively sweeps
2-2
