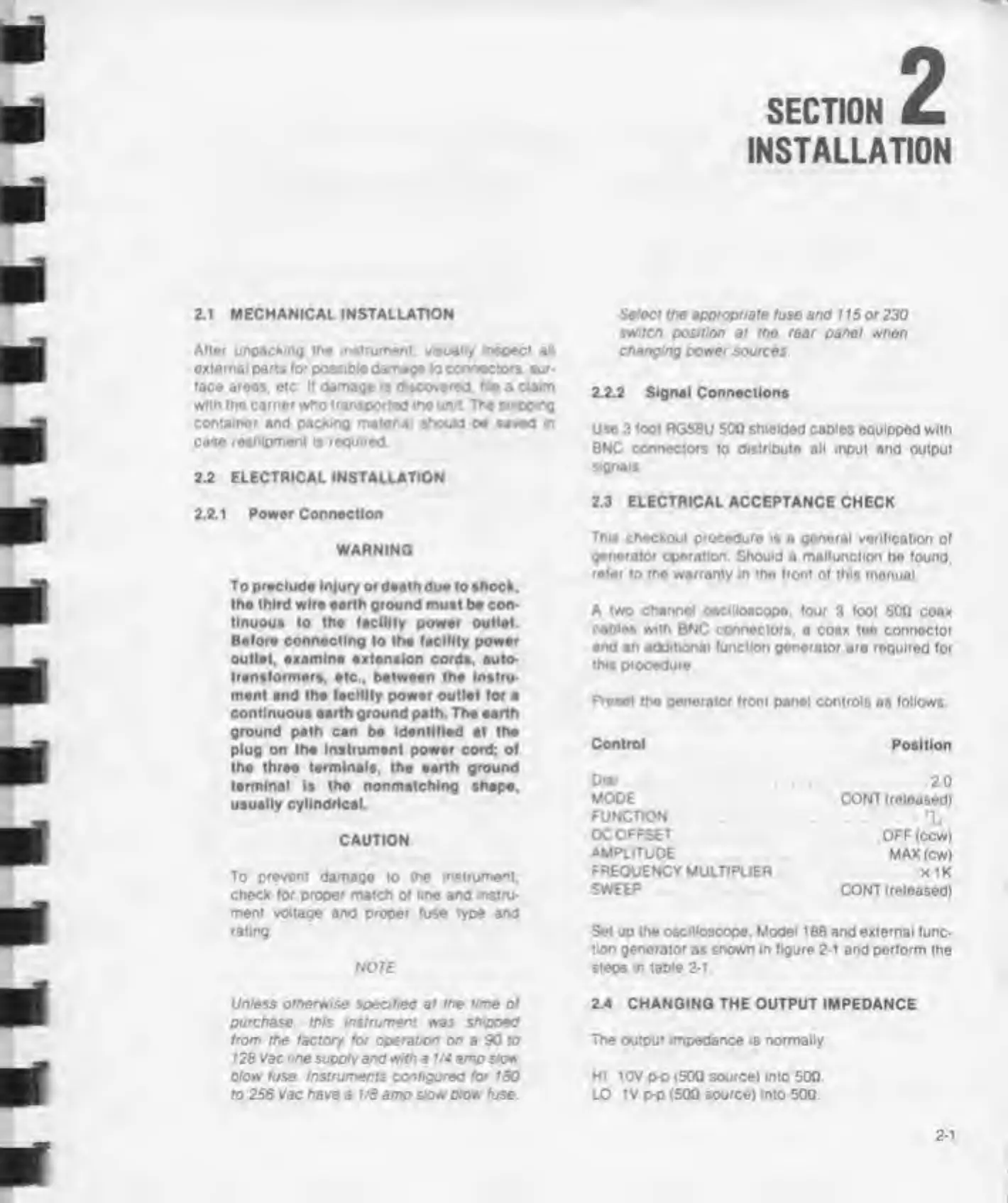

2.1 MECHANICAL INSTALLATION
After unpacking the
instrument
visually inspect ail
external parts for possiBie damage
to
connectors, sur-
face areas, etc If damage is discovered. Me a claim
with the carrier who transported the unit. The shipping
container and packing material
should be saved m
case
reshipment is required
2.2 ELECTRICAL INSTALLATION
2.2.1 Power Connection
WARNING
To
preclude Injury
or deeth due lo shock,
the third wire earth ground must
be
con-
tinuous to the facility power outlet.
Before connecting to the facility power
outlet, examine extension cords, auto-
transformers,
etc., between
the Instru-
ment and the facility power outlet for
a
continuous earth ground path. The earth
ground path can be Identified at the
plug on the Instrument power cord;
ol
the three terminals, the earth ground
terminal Is the nonmalching shape,
usually cylindrical.
CAUTION
To prevent damage to the
instrument,
check for
proper match
of
line and instru-
ment voltage and proper fuse
type
and
rating
NOTE
Unless otherwise specified
at
the time ot
purchase, this instrument was shipped
from the factory for operation on a 90 to
128
Vac
line supply
and with a
1/4
amp slow
blow fuse. Instruments configured tor 180
to
256
Vac have a 1/8 amp slow plow fuse.
2
SECTION
INSTALLATION
Select the appropriate fuse and
115
or
230
switch position at the rear panel when
changing
power sources
2.2.2
Signal Connections
Use 3
toot
RG58U 500 shielded cables eouipped with
BNC
connectors
to
distribute
all input and output
signals
2.3 ELECTRICAL ACCEPTANCE
CHECK
This chockout procedure is
a
general
verification of
generator operation. Should
a
malfunction
be found,
refer
to the warranty in the front of this manual
A
two
channol oscilloscope,
four
3
foot
500 coax
cabios with
BNC connectors,
a
coax
teo
connector
and an additional function generator are
required for
this procedure.
Preset the generator front panel controls
as follows:
Control Position
Dial
MODE
FUNCTION
DC
OFFSET
AMPLITUDE
FREQUENCY MULTIPLIER
SWEEP
2.0
CONT (released)
^
OFF (ccw)
MAX (cw)
x 1
K
CONT (released)
Set
up
the oscilloscope. Model 188 and external
func-
tion
generator as shown In figure
2-1
and perform
the
steps
in table 2-1.
2.4 CHANGING
THE OUTPUT IMPEDANCE
The
output impedance is normally.
HI 10V
p-p (50Q
source) into
500.
LO IV
pp
(500 source) Into 500
2-1
