22

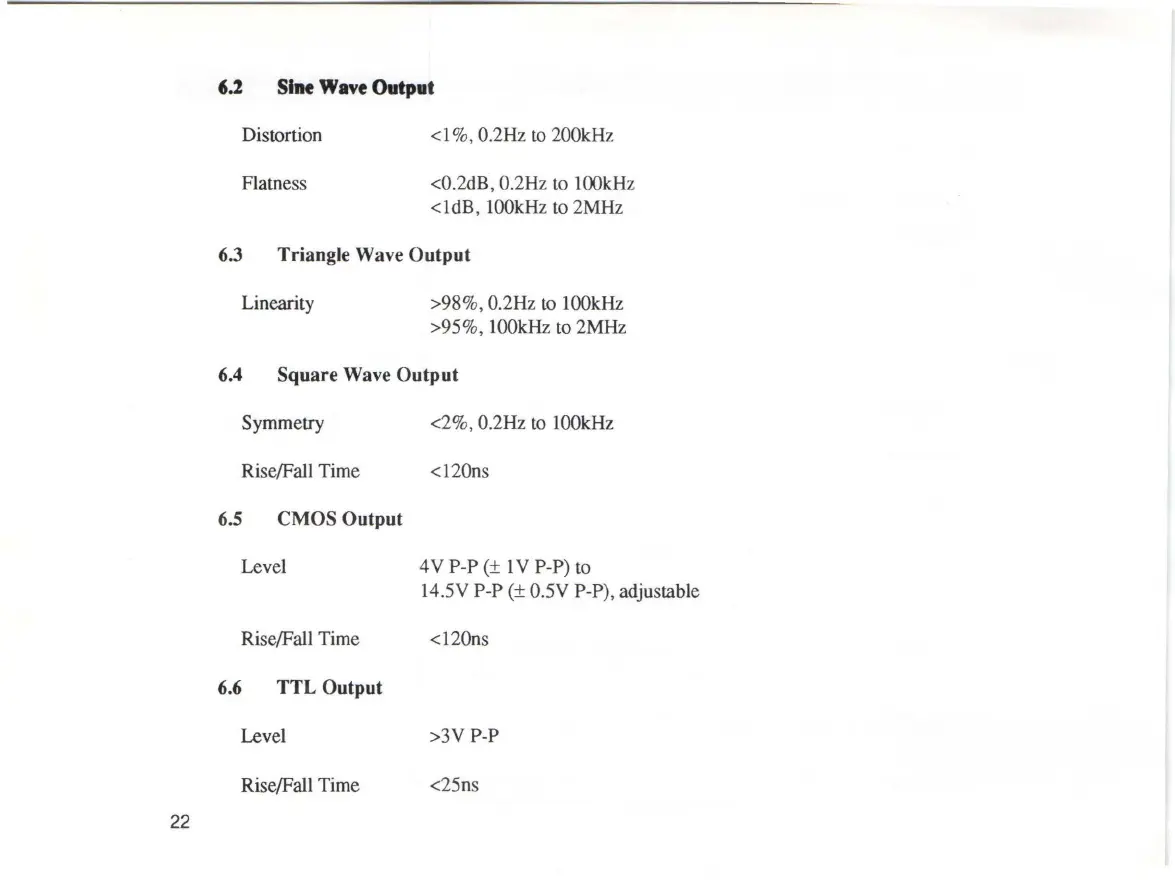

6.% Sine Wave Outpu t
Distortion
Flatness
<1 %, 0.2Hz to 200kHz
<0.2dB, 0.2Hz
to 100kHz
<ldB, 100kHz to 2MHz
6.3 Triangle Wave Output
Linearity >98%, 0.2Hz to 100kHz
>95%, 100kHz to 2MHz
6.4 Square Wave Output
Symmetry <2%, 0.2Hz to 100kHz
Rise/Fall Time <120ns
6.5 CMOS Output
Lev el 4V P-P(± 1 V P-P) to
14.5V
P-P(± 0.5V P-P), adjustable
Rise/Fall Time
<120ns
6.6 TTL Ou tp ut
Lev el >3V P-P
Rise/Fall Time
<25ns
