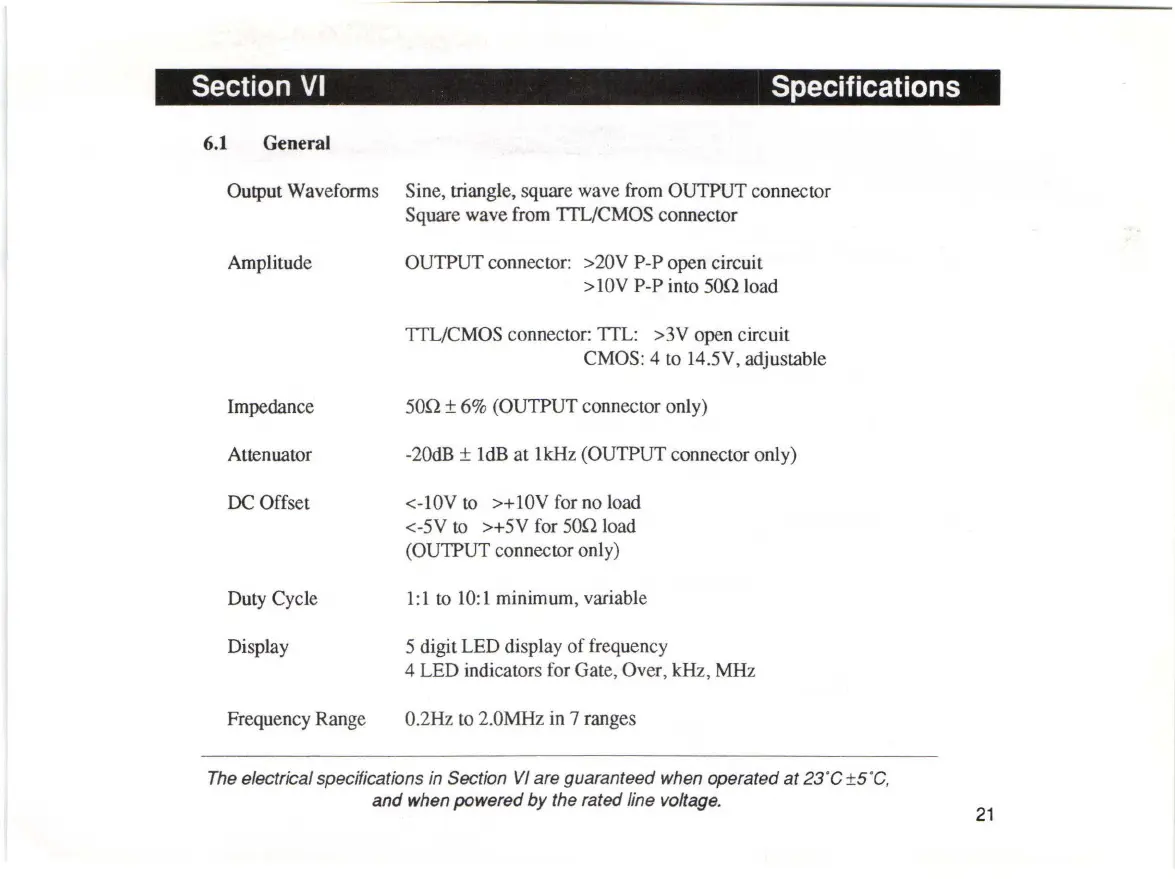

Section
VI
Specifications
6.1
General
Output Waveforms Sine, triangle, square wave from OUTPUT connec tor
Square wave from TTL/CMOS connector
Amplitude OUTPUT connector: >20V P-P open circuit
Impedance
Attenuator
DC
Offset
Duty Cycle
Display
Frequency Range
>lOV P-P into 50Q load
TTL/CMOS connector:
TIL:
>3V open circuit
CMOS: 4 to 14.5V, adjustable
50Q ± 6% (OUTPUTconnector only)
-20dB ± ldB at 1kHz (OUTPUT connector only)
< -lOV
to
>+ 1
OV
for no load
<-5V
to
>+5V for 50Q Joad
(OUTPUT connector only)
1:1
to
10:
1 minimum, variable
5 digit LED display
of
frequency
4 LED indicators for Gate, Over, kHz, MHz
0.2Hz to 2.0MHz in 7 ranges
The
electrical specifications in Section
VI
are guaranteed when operated
at
23"C±5
"
C,
and
when powered
by
the rated fine voltage.
21
