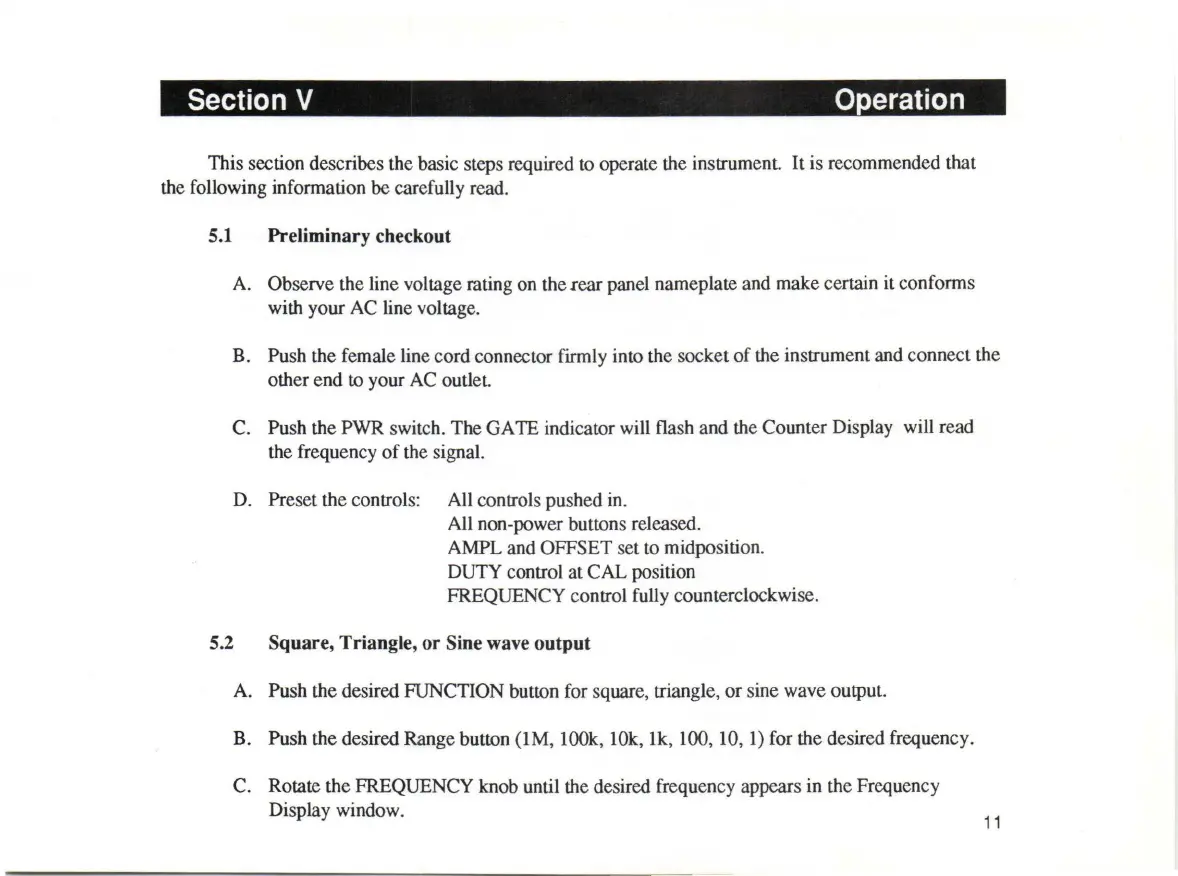

Section V Operation
This section describes the basic steps required to operate the instrument. It is recommended that
the following information be carefully read.
5.1
Preliminary checkout
A.
Observe the line voltage ra ting on the rear panel nameplate and make certain it conforms
with your AC line voltage.
B. Push the female line cord connector firmly into the socket
of
the instrument and connect the
other end
to
your
AC
outlet.
C. Push the PWR switch. The GA
1E
indicator will flash and the Counter Display will read
the frequency
of
the signal.
D.
Preset the controls: Ail controls pushed
in
.
Ail non-power buttons released.
AMPL and OFFSET set to midposition.
DUTY control at CAL position
FREQUENCY control fully counterclockwise.
5.2 Square, Triangle, or Sine wave output
A.
Push the desired FUNCTION button for square, triangle, or sine wave output.
B. Push the desired Range button
(lM,
lOOk,
lük
,
lk,
100, 10,
1)
for the desired frequency.
C. Rotate the FREQUENCY knob until the desired frequency appears in the Frequency
Display window.
