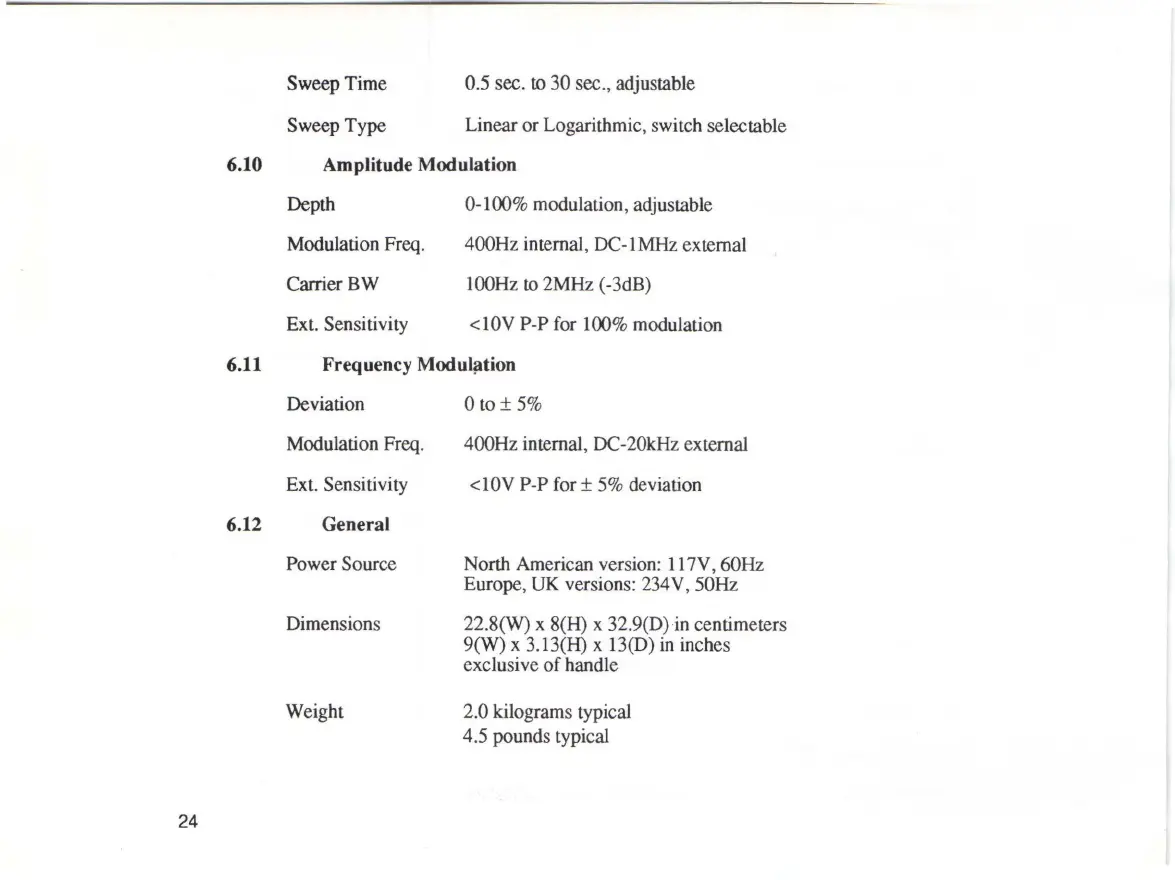

24
Sweep Time
0.5 sec. to 30 sec., adjustable
Sweep Type Linear or Logarithmic, switch selectable
6.10 Amplitude Modulation
Depth
Modulation Freq.
CarrierBW
Ext. Sensitivity
0-100%
modulation, adjustable
400Hz internai, DC-lMHz externat
100Hz
to
2MHz (-3dB)
<lOV P-P for 100% modulation
6.11 Frequency Modul;ltion
Deviation
Modulation Freq.
Ext.
Sensitivity
6.12 General
Power Source
Dimensions
Weight
0 to ±
5%
400Hz internai, OC-20kHz externat
<lOV P-P
for±
5%
deviation
North American version: 117V,
60Hz
Europe,
UK
versions: 234V, 50Hz
22.8(W) x 8(H) x 32.9(D)in centimeters
9(W) x 3.13(H) x 13(D)
in
inches
exclusive
of
handle
2.0 kilograms typical
4.5 pounds typical
