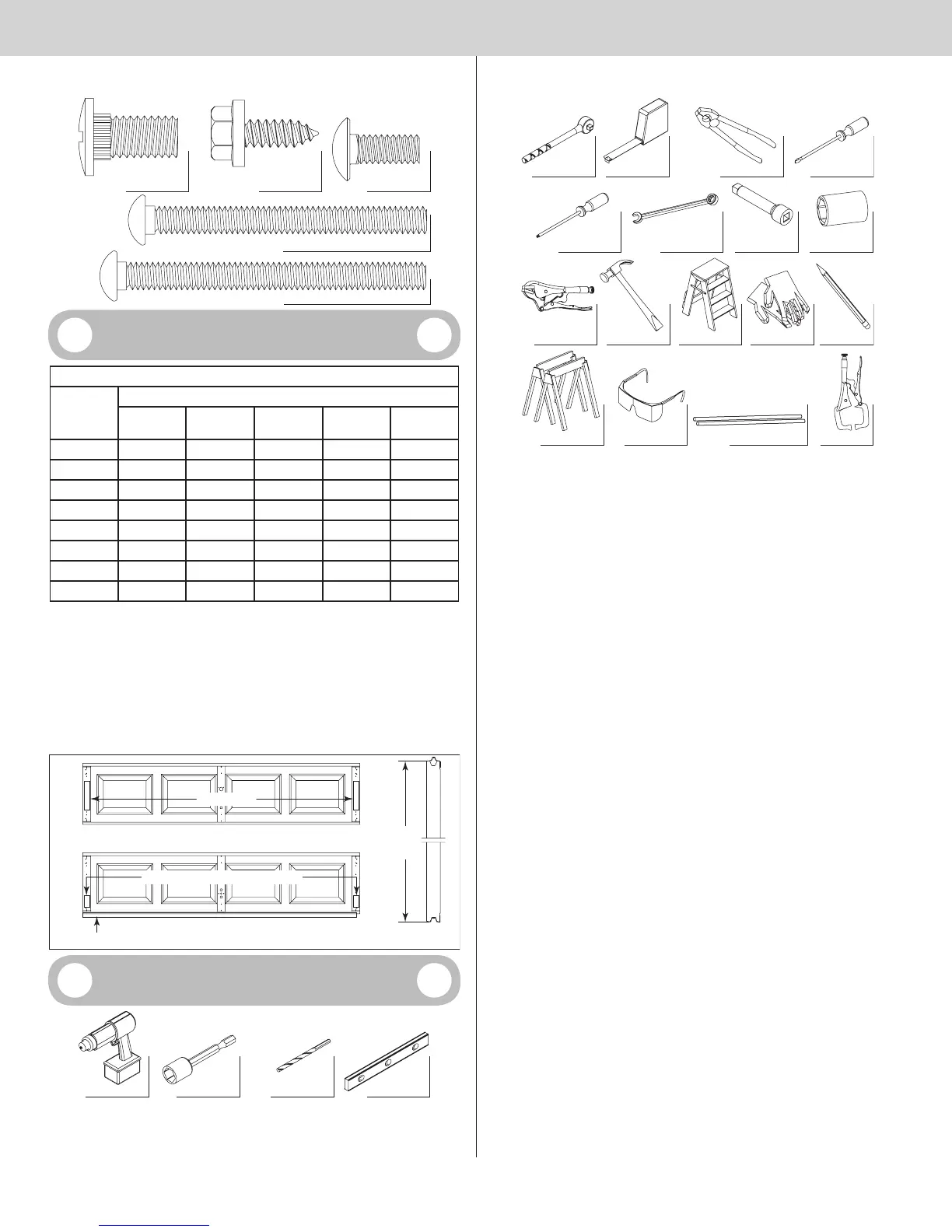

Wayne-Dalton 8000 - Door Section Identification; Tools Required

1/4”-14 x 5/8” Self tapping
screws (as required)
(2) 3/8”-16 x 3/4”
Truss head bolts
1/4” - 20 x 2-1/2” Carriage bolts (lift handles)
1/4” - 20 x 2-3/4” Carriage bolts (step plate)
(2) 5/16”-18 x 3/4”
Carriage bolts
Door Section Identification
Door Section Identification
Door Height Type Of Section
Bottom Lock (sec-
ond)
Intermediate
I (third)
Intermediate
II (fourth)
Top
6’0” 18” 18” 18” NA 18”
6’3” 21” 18” 18” NA 18”
6’6” 21” 18” 18” NA 21”
6’9” 21” 21” 21” NA 18”
7’0” 21” 21” 21” NA 21”
7’6” 18” 18” 18” 18” 18”
7’9” 21” 18” 18” 18” 18”
8’0” 21” 18” 18” 18” 21”
When installing your door you must use sections of the appropriate height in the right stack-
ing order. What section heights you need to use in what order depends on the height of your
door.
Unless your door is five sections in height, you will not receive an Intermediate II section.
The BOTTOM SECTION can be identified by the factory attached bottom astragal, the factory
attached bottom corner brackets, and by the bottom corner bracket warning labels on each
end stile.
The INTERMEDIATE I SECTION may have a warning label attached to either right or left
hand end stile of the section. This section is always the 3rd section from the bottom of the
door.
18”
or
21”
Section side
view illustration
Bottom section
Bottom weather seal
Bottom corner bracket warning labels
Warning label
Intermediate I section
Tools Required
Power drill Socket driver: 7/16” Level
Drill bits: 1/8”, 3/16”,
9/32”, 7/16”, 1/2”
Ratchet wrench Tape measure Pliers / Wire cutters Flat tip screwdriver
Phillips head screwdrive
r
Wrenches: 3/8”, 7/16”,
1/2”, 9/16”, 5/8”
3” Ratchet
extension
Sockets: 7/16”,
1/2”, 9/16”, 5/8”
Vise clamps Hammer Step ladder PencilLeather gloves
Locking pliersSafety glasses
Approved winding bars
Saw horses
4
