Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
NOTE: For door section identification see
page 4.

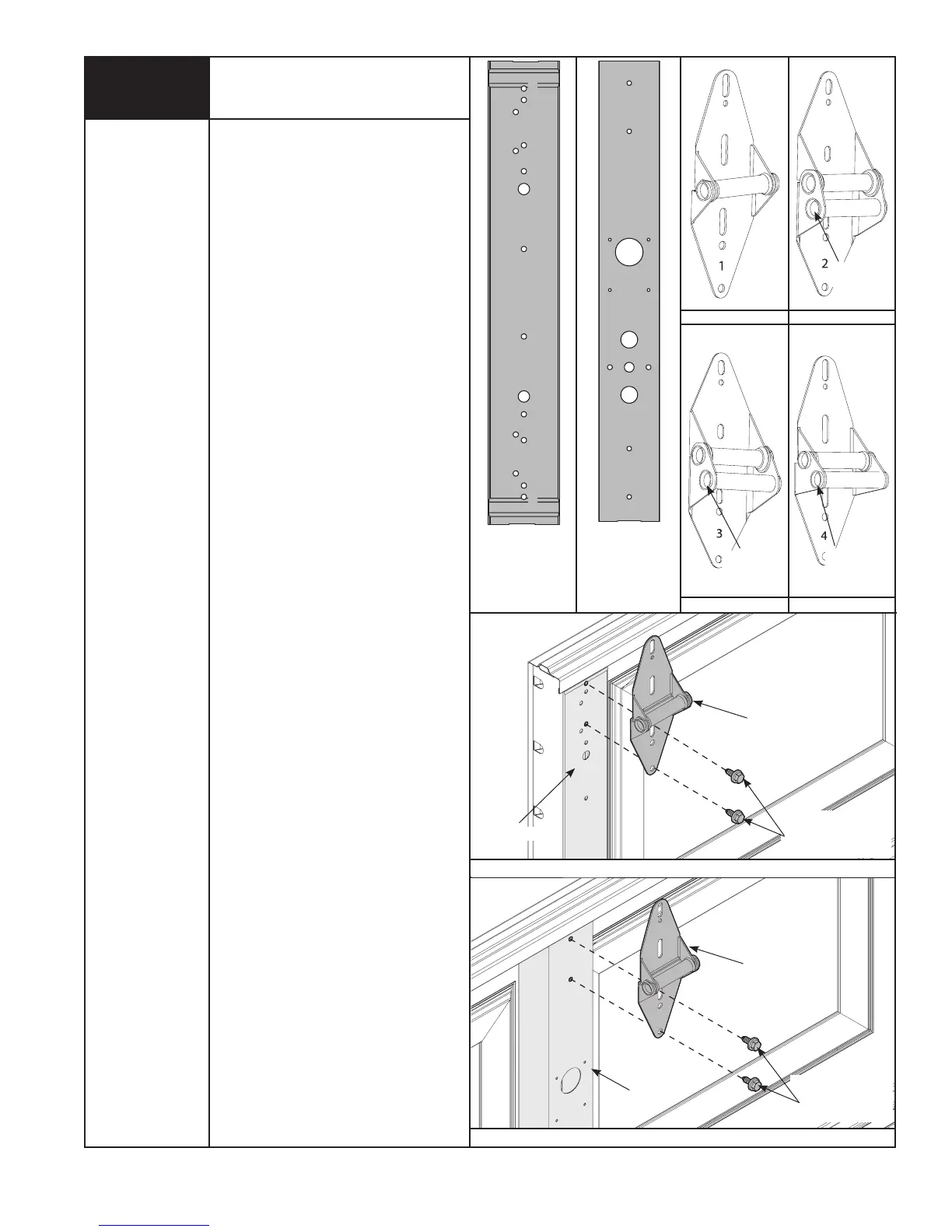

Located the bottom section, (2) #1
hinges for the end stiles and enough #1
hinge(s) for each of the center stile(s).
Place the hinge on the section so that
the lower (numbered) leaf of the hinge
is over the pre-punched holes in the end
stiles and center stile(s) at the top of the
section.
Secure the hinges to the section using
(2) 1/4”- 14 x 5/8” self tapping screws
each.
Insert roller into appropriate end hinge
tube.
Repeat for all sections except the top
section.
Use (2) #2 end hinge(s) and the required
number of #1 hinges for each of the
center stile(s) on the lock section
(second section).
Use (2) #3 end hinges and the required
number of #1 hinges for each of the
center stile(s) on the intermediate
section (third section).
If installing a five section door, use (2) #4
end hinges and the required number of
#1 hinges for each of the center stile(s)
on the intermediate II section (fourth
section).
IMPORTANT: WHEN PLACING ROLLERS
INTO END HINGES NUMBER 2 AND
HIGHER, THE ROLLER GOES INTO TUBE
FURTHEST AWAY FROM SECTION.
IMPORTANT: ONCE FASTENER IS
SNUG AGAINST HINGE LEAF, TIGHTEN
AN ADDITIONAL 1/4 TO 1/2 TURN TO
RECEIVE MAXIMUM DESIGN HOLDING
POWER.
5
Hinges
Power Drill
7/16” Socket
Driver
END STILE HOLE
PATTERN
(LEFT SIDE IS SHOWN.
RIGHT SIDE IS
OPPOSITE.)
1
2
3
4
5
6
7
7
6
5
4
3
2
1
#1 HINGE #2 END HINGE
#3 END HINGE #4 END HINGE
CENTER STILE
HOLE PATTERN
ROLLER
PLACEMENT
ROLLER
PLACEMENT
ROLLER
PLACEMENT
HINGE
(2) 1/4”- 14 X 5/8”
SELF TAPPING
SCREWS
CENTER STILE
(2) 1/4”- 14 X 5/8”
SELF TAPPING
SCREWS
HINGE
END STILE
END HINGE PLACEMENT
CENTER HINGE PLACEMENT
