INSTALLATION
11

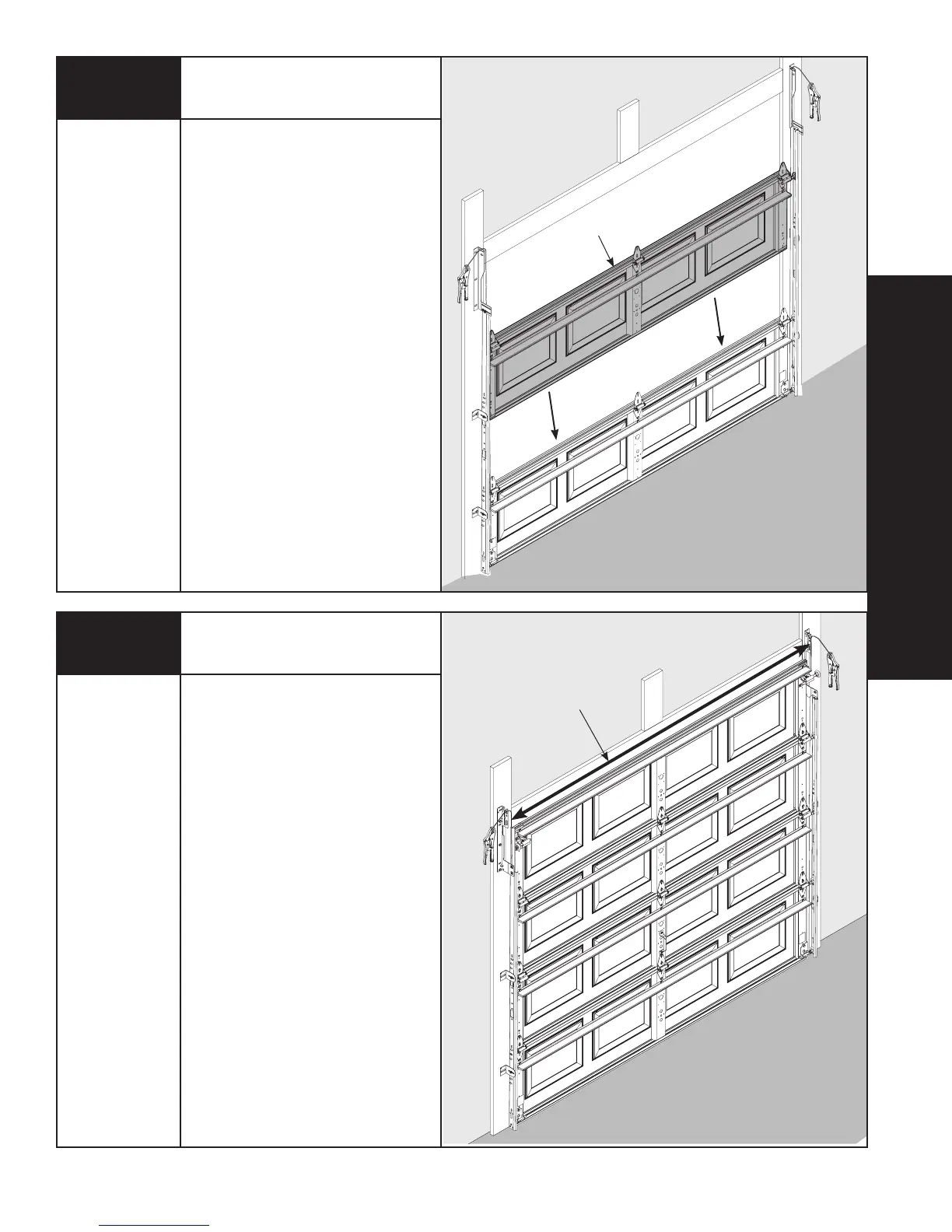

Stacking Sections
Power Drill
7/16” Socket
Driver
LOCK SECTION
NOTE: For door section identification see
page 4.
NOTE: Make sure hinges are flipped down,
when stacking another section on top.
With assistance, lift second section and
guide rollers into the vertical tracks.
Keeping the ends of the sections aligned,
install remaining section(s), except top
section, in same manner. Now flip up
hinge leaf, hold tight against section, and
fasten center hinges first, and end hinges
last, using (2) 1/4”- 14 x 5/8” self tapping
screws. Repeat for other section(s) except
top section.
IMPORTANT: PUSH & HOLD THE HINGE
LEAF AGAINST SECTION WHILE SECURING
WITH 1/4”- 14 X 5/8” SELF TAPPING
SCREWS.
NOTE: Install lock at this time (sold
separately) see instructions in OPTIONAL
SIDELOCK INSTALLATION on page 28.
Top Section
Hammer
Nail
Power Drill
7/16 Socket
Driver
Tape Measure
Place the top section in the opening
and vertically align with lower sections.
Temporarily secure the top section by
driving a nail in the header near the
center of the door and bending it over
the top section.
Now flip up hinge leaf against section,
fastening center hinges first, and end
hinges last. (Refer to Step 5).
When installing a door with a torsion
counterbalance system, vertical
track alignment is critical. Position
flagangle between 1-11/16” (43 mm)
to 1-3/4” (44 mm) from the edge of
the door. Tighten the bottom lag screw.
Flagangles must be parallel to the door
sections.
Repeat for opposite side.
IMPORTANT: THE DIMENSION
12
DOOR WIDTH
+3-3/8” TO 3-1/2”
To Next Page
