Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
INSTALLATION
14

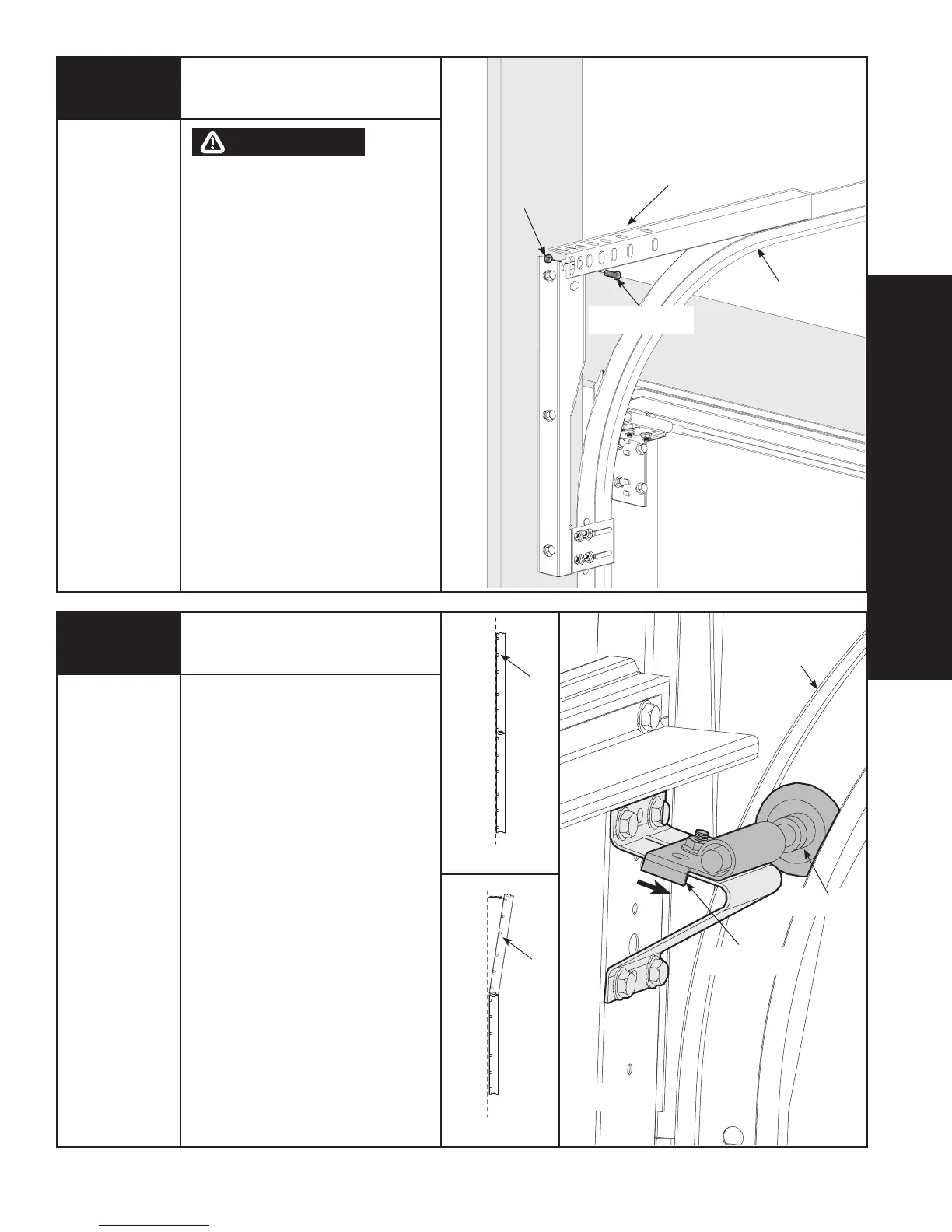

Adjusting Top Brackets
7/16” Wrench
CORRECT
INCORRECT
TOP
SECTION
TOP
SECTION
HORIZONTAL
TRACK
TOP BRACKET
SLIDE
TOP ROLLER
TOP
SECTION
With tracks installed you can adjust
the top brackets. Vertically align the
top section of the door with the lower
sections. Once aligned, position the
roller in the top bracket slide, out
against the horizontal track.
Maintaining the slide’s position, tighten
the (1) 1/4”- 20 flange hex nut to secure
the top bracket slide to the top bracket
base. Repeat for other side.
(1) 3/8”- 16 X 3/4”
HEX HEAD BOLT
(1) 3/8”- 16
HEX NUT
HORIZONTAL
TRACK
HORIZONTAL ANGLE
WARNING
DO NOT RAISE DOOR UNTIL
HORIZONTAL TRACKS ARE
SE CURED AT REAR, AS OUTLINED
IN STEP 15, OR DOOR COULD
FALL FROM OVERHEAD
POSI TION CAUSING SEVERE OR
FATAL INJURY.
Attaching Adjustable Flagangle
to Horizontal Track Continued...
To Next Page
