Wayne-Dalton 9100 User Manual

12
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
2
None

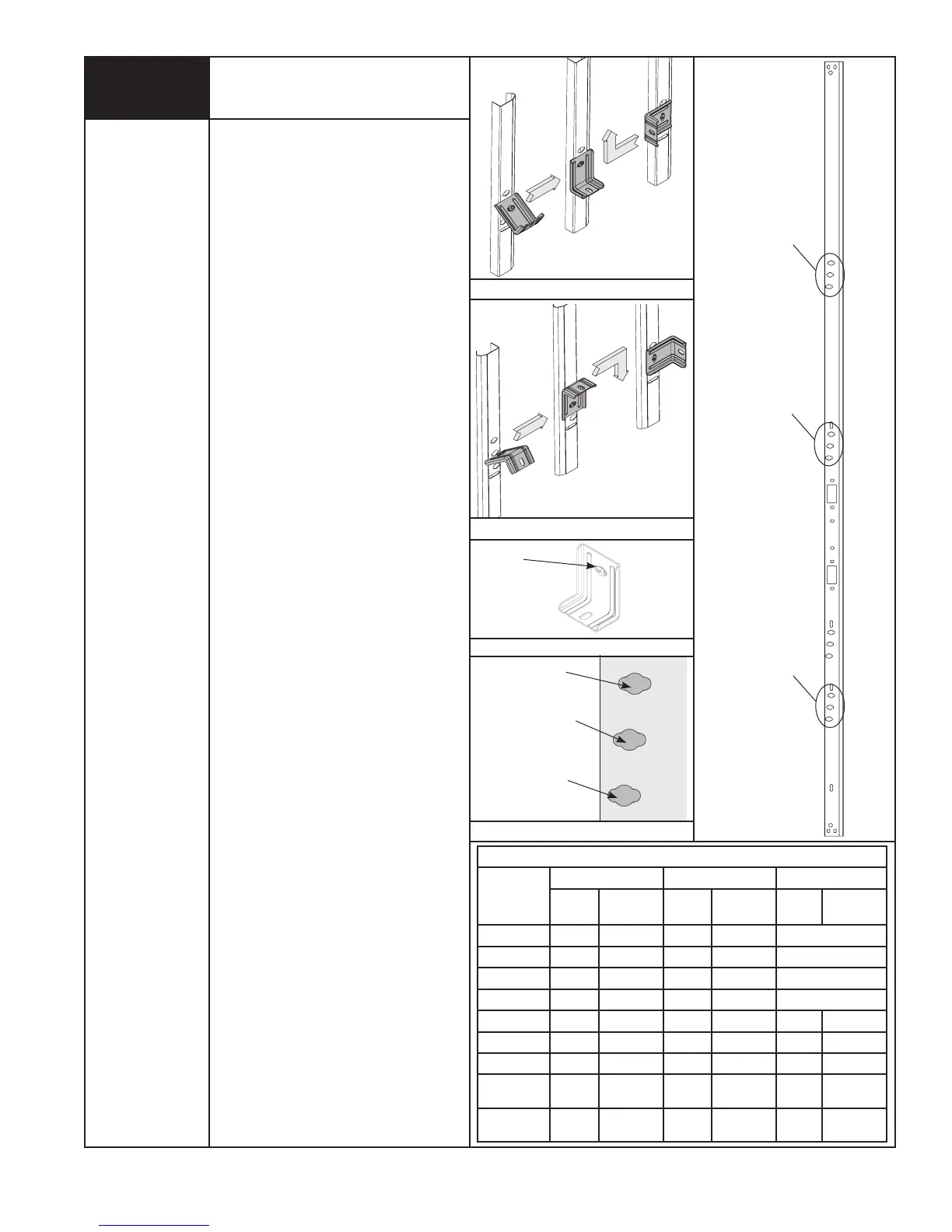

QI JAMB BRACKET
Measure the length of the vertical
tracks. Using the jamb bracket schedule,
determine the placement of the jamb
brackets for your door height and track
type.
To install the jamb brackets, align the
twistlock tab on the quick install jamb
bracket with the quick install feature
in the track and turn the bracket
perpendicular to the track so the
mounting flange is toward the back (flat)
leg of the track.
Installing Q.I. Jamb Brackets
TOP
HOLE
BOTTOM
HOLE
MIDDLE
HOLE
3RD SET HOLES
2ND SET HOLES
1ST SET HOLES
QUICK INSTALL FEATURE
TWISTLOCK TAB
LEFT SIDE SHOWN
RIGHT SIDE SHOWN
JAMB BRACKET SCHEDULE
DOOR
HEIGHT
1ST SET 2ND SET 3RD SET
JAMB
BKT
POSITION
JAMB
BKT
POSITION
JAMB
BKT
POSITION
6’0” QIJB-3 MIDDLE QIJB-6 TOP NOT APPLICABLE
6’5” QIJB-3 MIDDLE QIJB-5 BOTTOM NOT APPLICABLE
6’8” QIJB-3 MIDDLE QIJB-5 BOTTOM NOT APPLICABLE
7’0” QIJB-3 MIDDLE QIJB-5 BOTTOM NOT APPLICABLE
7’3” QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
7’6” QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
7’9” QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
8’0”
(4 SECTION)
QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
8’0”
(5 SECTION)
QIJB-3 BOTTOM QIJB-5 BOTTOM QIJB-6 BOTTOM
