5 SERVICE TECHNICIAN INFORMATION
The information in this section is provided for Wayne certified service technicians only.
5.1 DIP Switch Settings

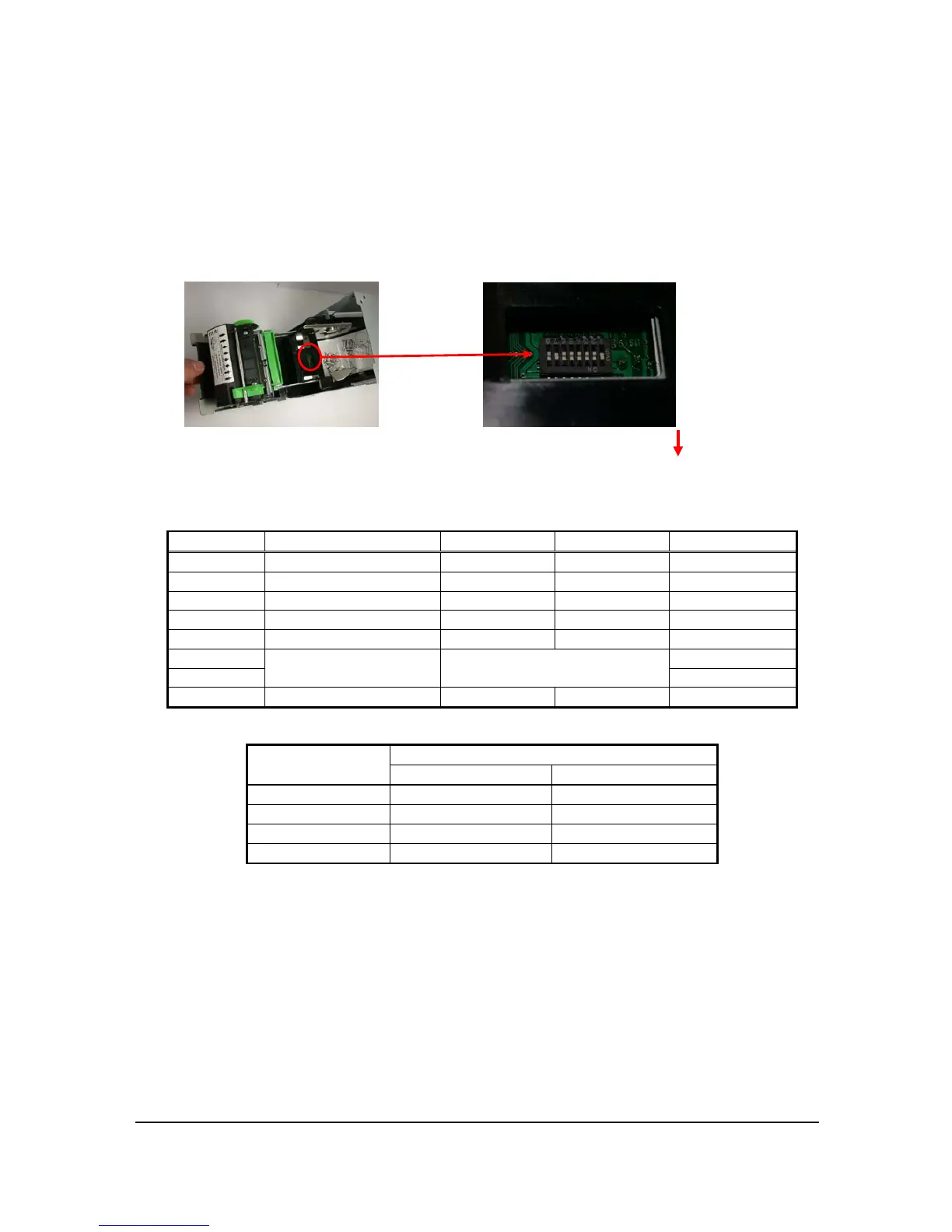

DIP switches are on the control board as shown below. Turn off the power before setting DIP
switches.
The function of each switch is as follows:
Switch No.
Function
ON
OFF
Initial Settings
1
Auto Cut
Enabled
Disabled
ON
2
Hand shake
XON/XOFF
DTR/DSR
ON
3
Bit length
7 bits
8 bits
OFF
4
Parity check
With parity
None
OFF
5
Parity selection
Even parity
Odd parity
OFF
6
Baud rate selection See Table below
ON
7
ON
8
Print density selection
Dark
Standard
OFF
Baud rate selection
Baud rate (bps)
Switch No.
6
7
9600
OFF
OFF
19200
ON
OFF
38400
OFF
ON
115200
ON
ON
Note:
For dispensers with QCAT board, set Switch 6 to OFF and Switch 7 to ON (38400 Baud rate).
For dispensers with iX board, set Switch 6 to ON and Switch 7 to ON (115200 Baud rate).
8 7 6 5 4 3 2 1 ON
14____________________________________________________________________________________
P/N 000-920921- Rev 0D 04/2015
