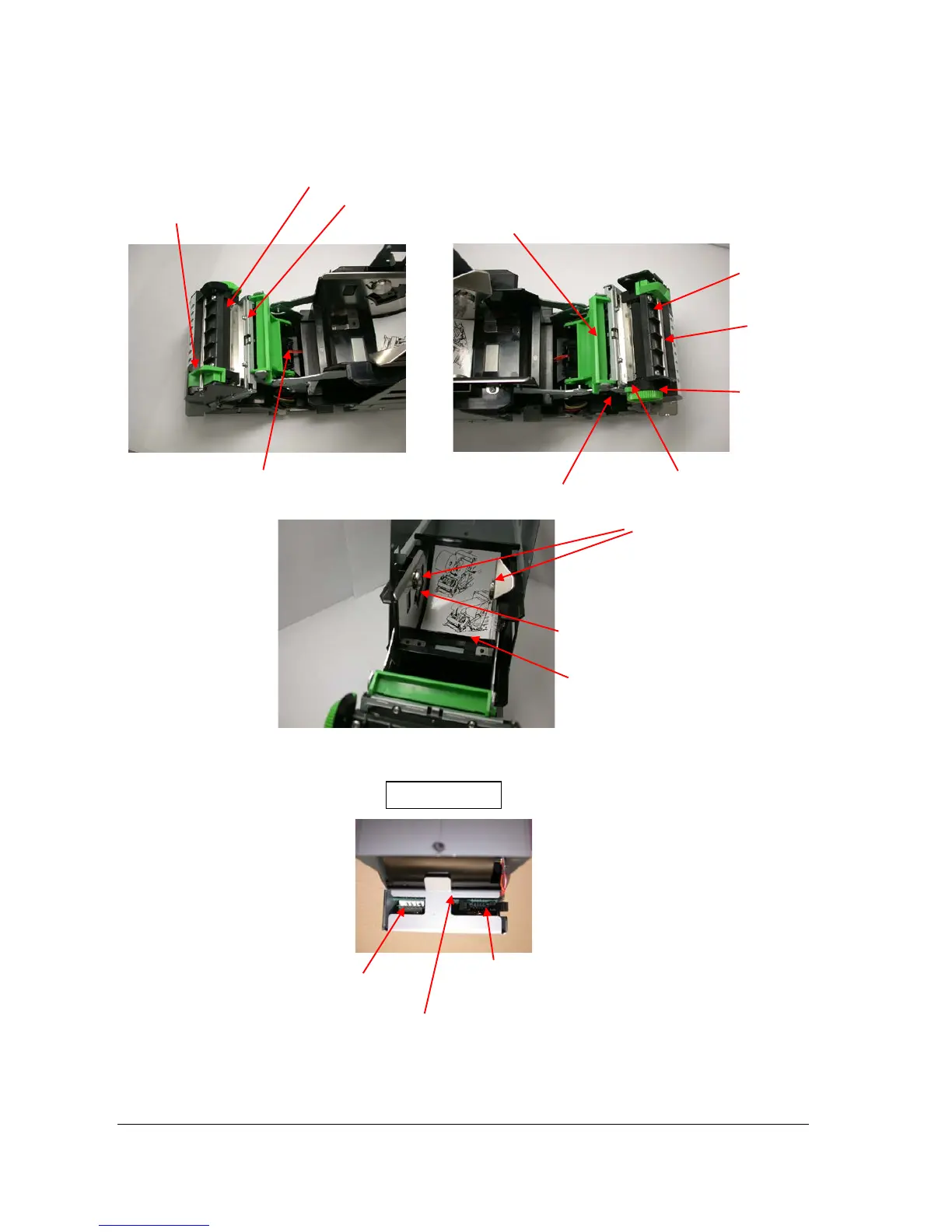

5.2 Component Locations
Data
Connector
Power supply
Connector
Main control board
Rear Side
Auto cutter
Out of Paper
Sensor
Head-up lever
Receipt sensor
Front Door Open Sensor
Low Paper Sensor
Paper supporter
Chute Access Door
Paper adjust lever
Paper manual
Feed Gear
Paper Inlet
Paper holder
Print Head
_____________________________________________________________________________________15
P/N 000-920921- Rev 0D 04/2015
