E. AIR BAND ASSEMBLY ADJUSTMENT

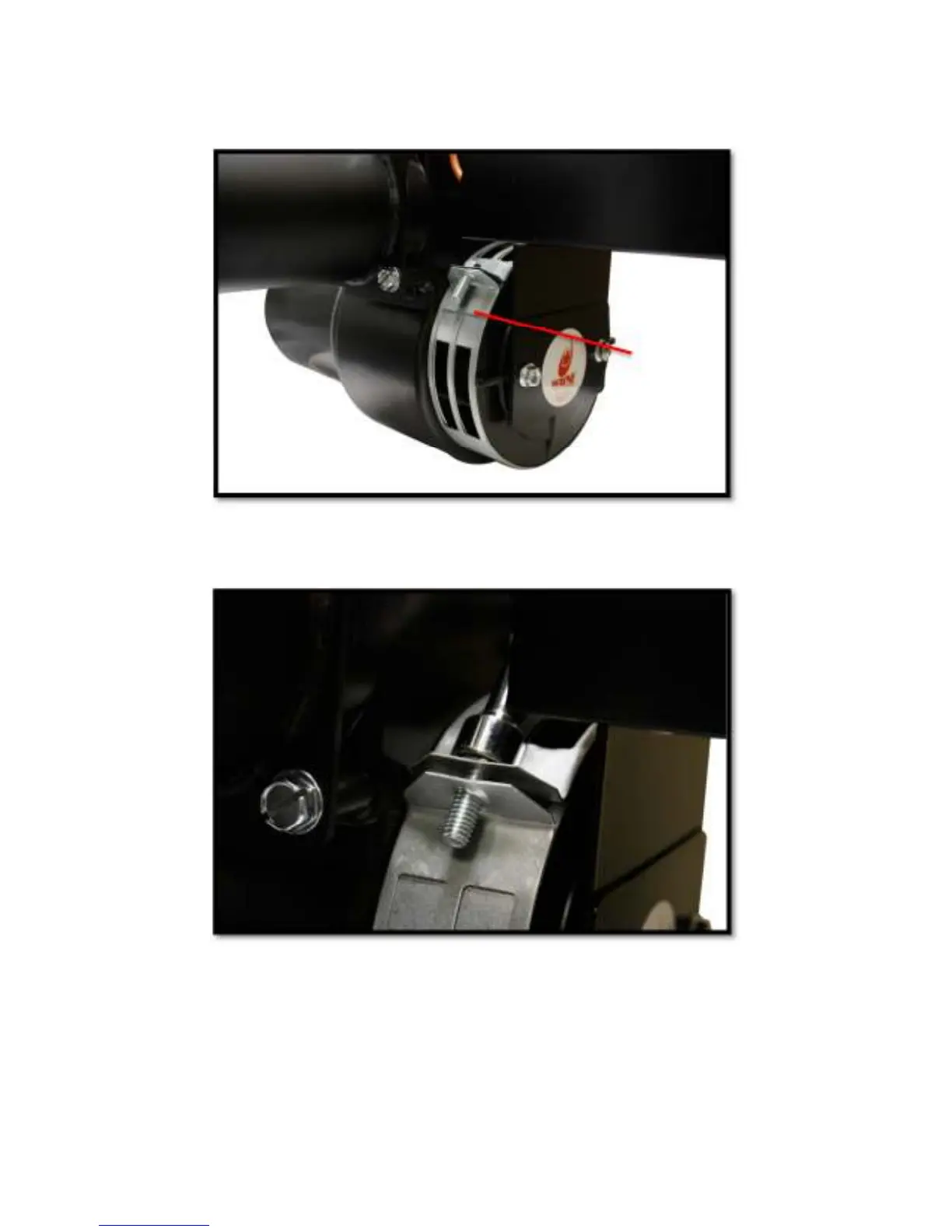

1. The air band assembly is located on the left side of the burner housing, opposite the motor. The air bands are
held in place by a 1/2” bolt.
Figure 22
2. Using a 1/2” nut driver, loosen the bolt holding the air bands in place.
Figure 23
CAUTION: Do not remove the bolt or the air bands. Re-installation of air bands is difficult.
Air Band
Assembly
