4. To measure the air band opening, place a ruler or other measuring device alongside the air band and measure
the opening from the lip of the solid black piece inside the air band assembly to the edge of the air band itself.

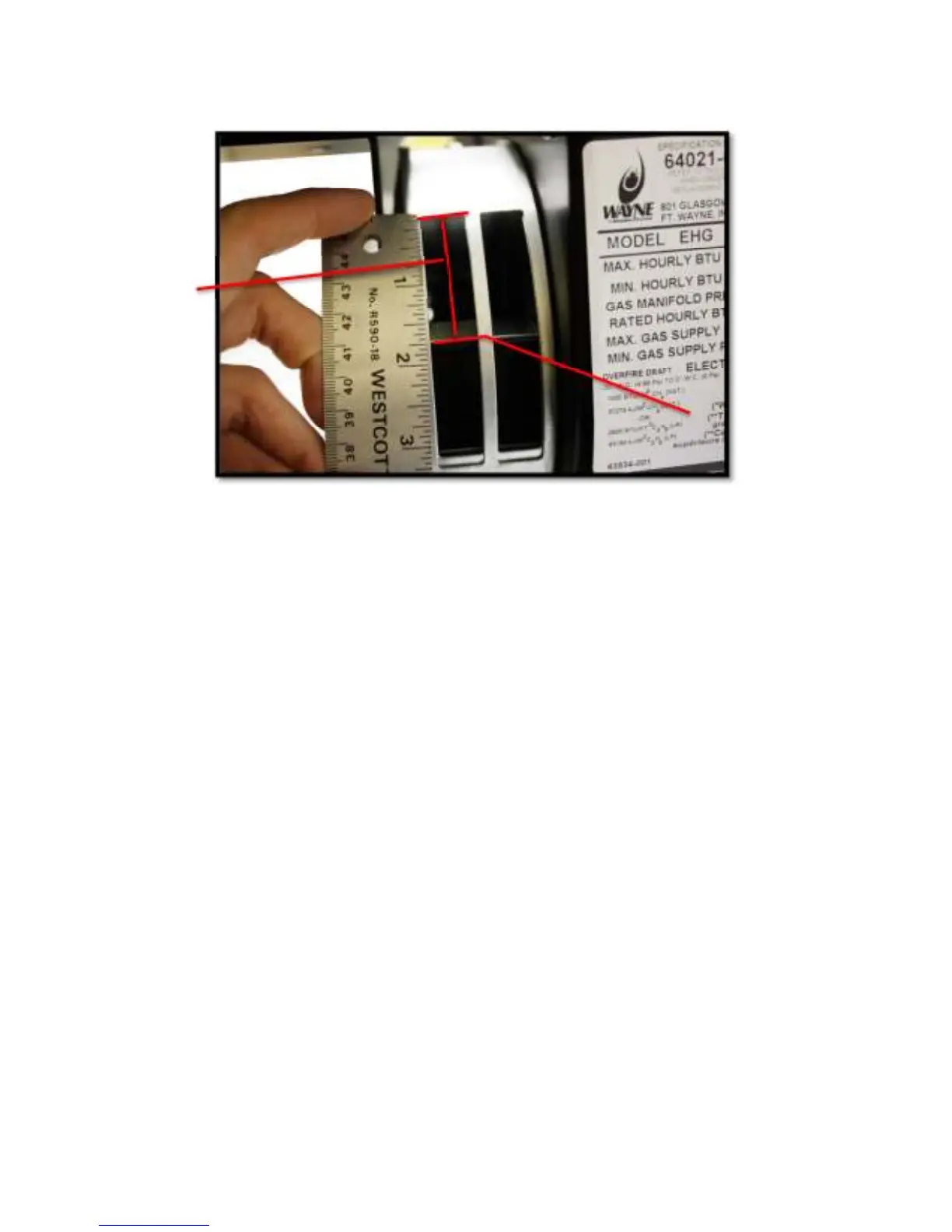

Measuring the air band opening
Figure 26
5. After the air band assembly has been adjusted to the desired opening, tighten the 1/2" bolt to secure the air bands
in place.
Lip inside
air band
Measurable
Opening
