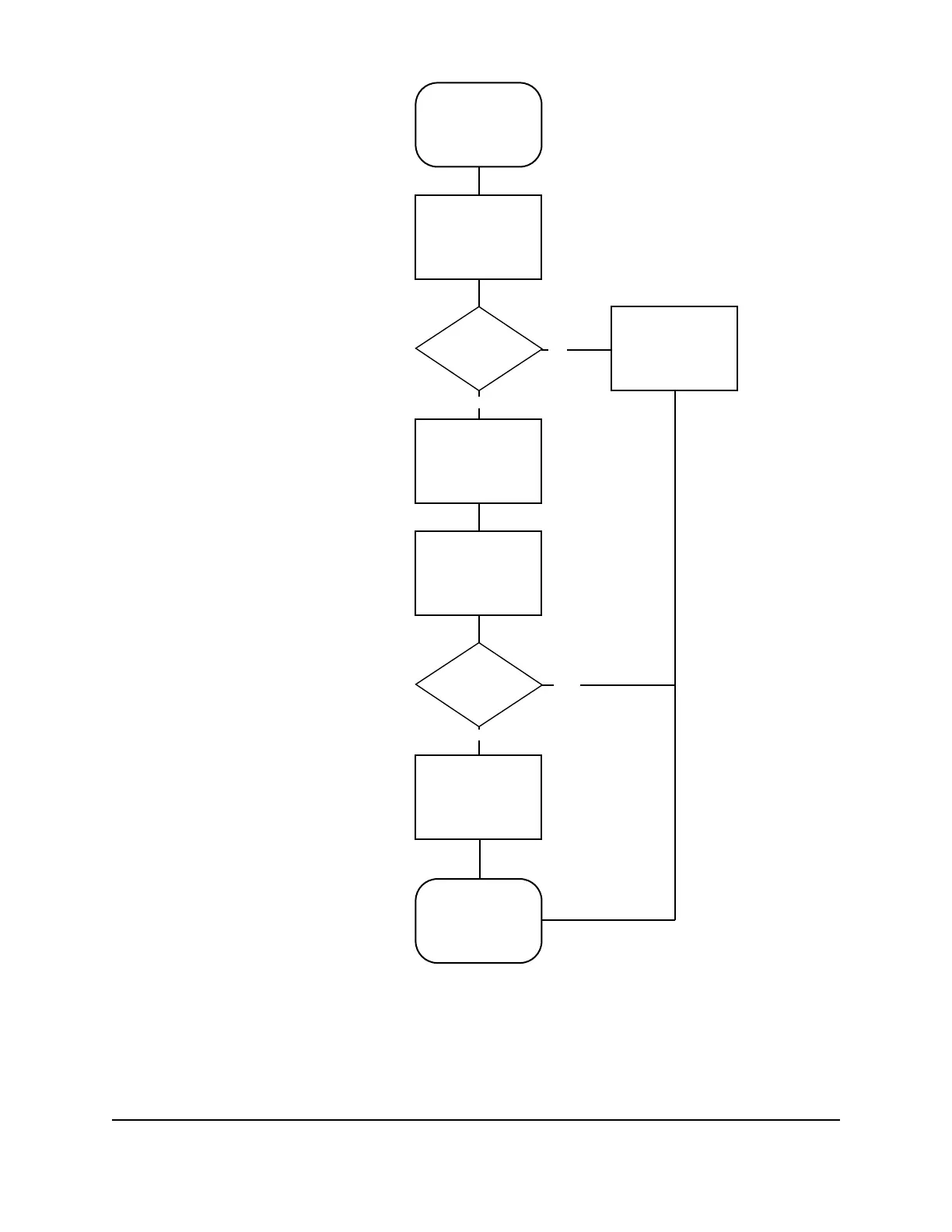

FLOWCHART A-1. 01 FAULT CODE
01 fault code.
Push to start switch
open or cash/credit
switch shorted.
Defective switch.
Check with VOM
for continuity when
switch is on.
Does the
switch check
good?
Check the wiring to
the switch. Repair
or replace the
defective wiring.
END
Replace the
defective switch.
YES
NO
JDB-FH-218-A
Is the
problem
corrected?
NO
YES
Replace the
computer.
Replace the
lighted cash
credit interface
board.
