17 Sp

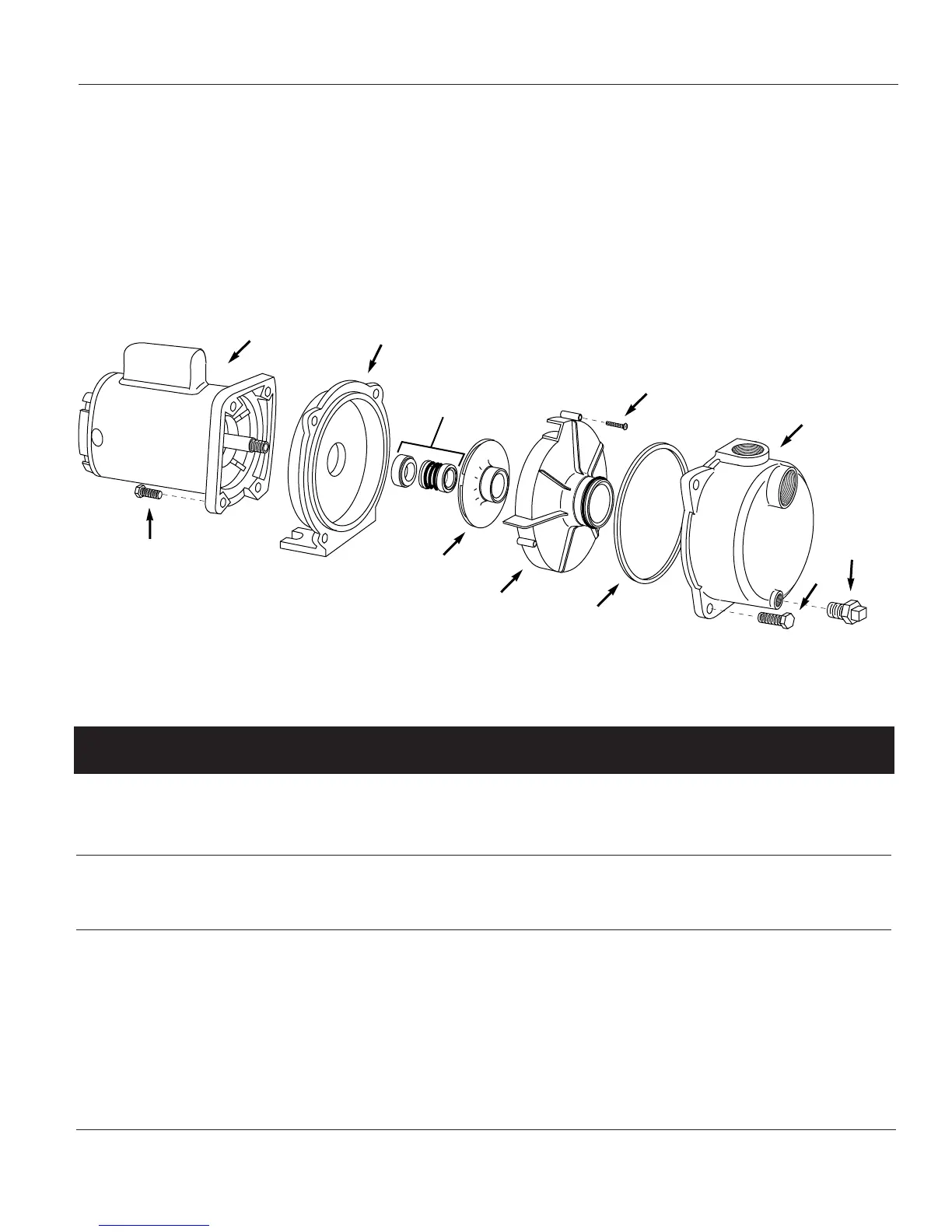

Manual de Instrucciones y Lista de Repuestos
1
2
3
4
5
6
8
7
9
10
11
1 Motor 32031-001 32015-001 32020-001 32021-001 1
2 Tornillo Hex. de 9,5 mm (3/8”) -16 x 2,5 cm (1”) 16334 16334 16334 16334 4
3 Placa selladora 41011-001 41011-001 41011-001 41011-001 1
4 Ensamblaje del sello del eje 15559-002 15559-002 15559-002 15559-002 1
5 Propela 29806-001 29805-001 29804-001 29803-001 1
6 Difusor 29807-001 29807-001 29807-001 29807-001 1
7 Tornillo tipo Phillips de 10-24 x 2,5 cm (1”) 67017-001 67017-001 67017-001 67017-001 3
8 Anillo cuadrado 19013-001 19013-001 19013-001 19013-001 1
9 Voluta 41010-001 41010-001 41010-001 41010-001 1
10 Tornillo Hex. de 11,1 mm (7/16”) -16 x 3,2 cm (1.25”) 67018 67018 67018 67018 4
11 Tapón de 6,4 mm (1/4”) NPT 16314-002 16314-002 16314-002 16314-002 1
Para Ordenar Repuestos Asistencia Técnica,
Comuníquese con el Distribuidor Más
Cercano a su Domicilio
Sírvase suministrarnos la siguiente información:
-Número del modelo
-Número de Serie (de haberlo)
-Descripción y número del repuesto según la lista de repuestos
Puede escribirnos a:
Wayne Water Systems
101 Production Drive
Harrison, OH 45030 U.S.A.
No. de Para los Modelos:
Ref. Descripción WLS75 WLS100 WLS150 WLS200 Ctd.
WLS75, WLS100
WLS150, WLS200
