Wayne WLS100 - Parts List and Contact Information

Operating Instructions and Parts Manual
5
1
2
3
4
5
6
8
7
9
10
11

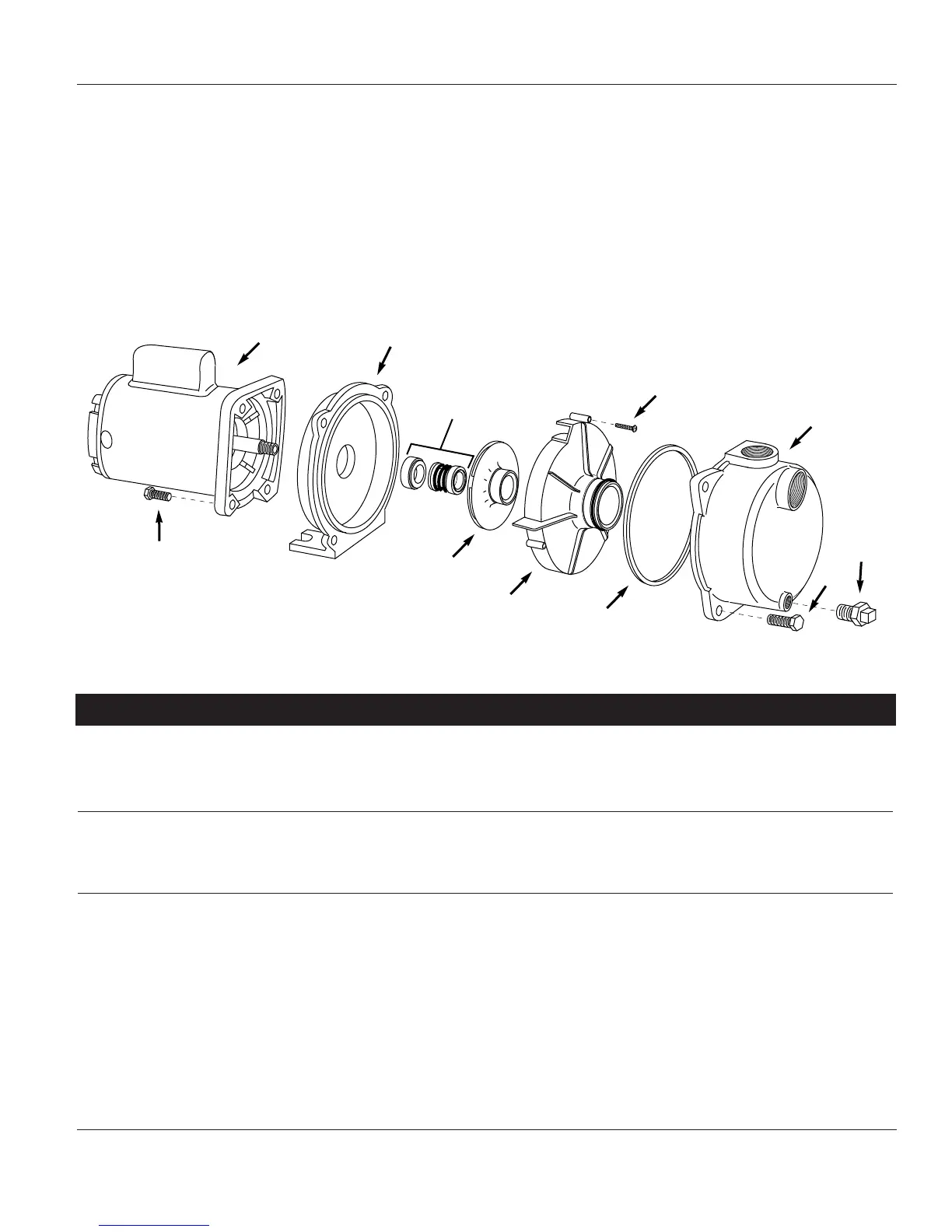

1 Motor 32031-001 32015-001 32020-001 32021-001 1
2 3/8”-16 x 1” Hex cap screw 16334 16334 16334 16334 4
3 Sealplate 41011-001 41011-001 41011-001 41011-001 1
4 Shaft seal assembly 15559-002 15559-002 15559-002 15559-002 1
5 Impeller 29806-001 29805-001 29804-001 29803-001 1
6 Diffuser 29807-001 29807-001 29807-001 29807-001 1
7 10-24 x 1” Phillips screw 67017-001 67017-001 67017-001 67017-001 3
8 Square ring 19013-001 19013-001 19013-001 19013-001 1
9 Volute 41010-001 41010-001 41010-001 41010-001 1
10 7/16”-16 x 1.25” Hex cap screw 67018 67018 67018 67018 4
11 1/4” NPT Sq. hd. pipe plug 16314-002 16314-002 16314-002 16314-002 1
For Replacement Parts or Technical Assistance,
call 1-800-237-0987
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Address parts correspondence to:
Wayne Water Systems
101 Production Drive
Harrison, OH 45030 U.S.A.
Ref. Part Number for Models:
No. Description WLS75 WLS100 WLS150 WLS200 Qty.
www.waynepumps.com
WLS75, WLS100
WLS150, WLS200
