ELECTRICAL CONNECTIONS
Connect the pump to a separate electrical circuit with a dedicated circuit
breaker. Refer to Chart 1 for the electrical specifications in wiring for
recommended fuse and wire size.
The motor must be grounded by connecting a copper conductor to the
grounding screw provided within the wiring compartment.
The voltage of power supply must match the voltage of the pump. The
WLS150 has a dual voltage motor preset at the factory to 230 volts. The
motor can be converted to 115 volts by changing the voltage selector
to the desired voltage (See Figure 5). Use a needle nose pliers to pull
the selector out approximately 1/4”, rotate and then reinsert in correct
position. NOTE: The WLS200 cannot be converted; the motor is
230 volts only.

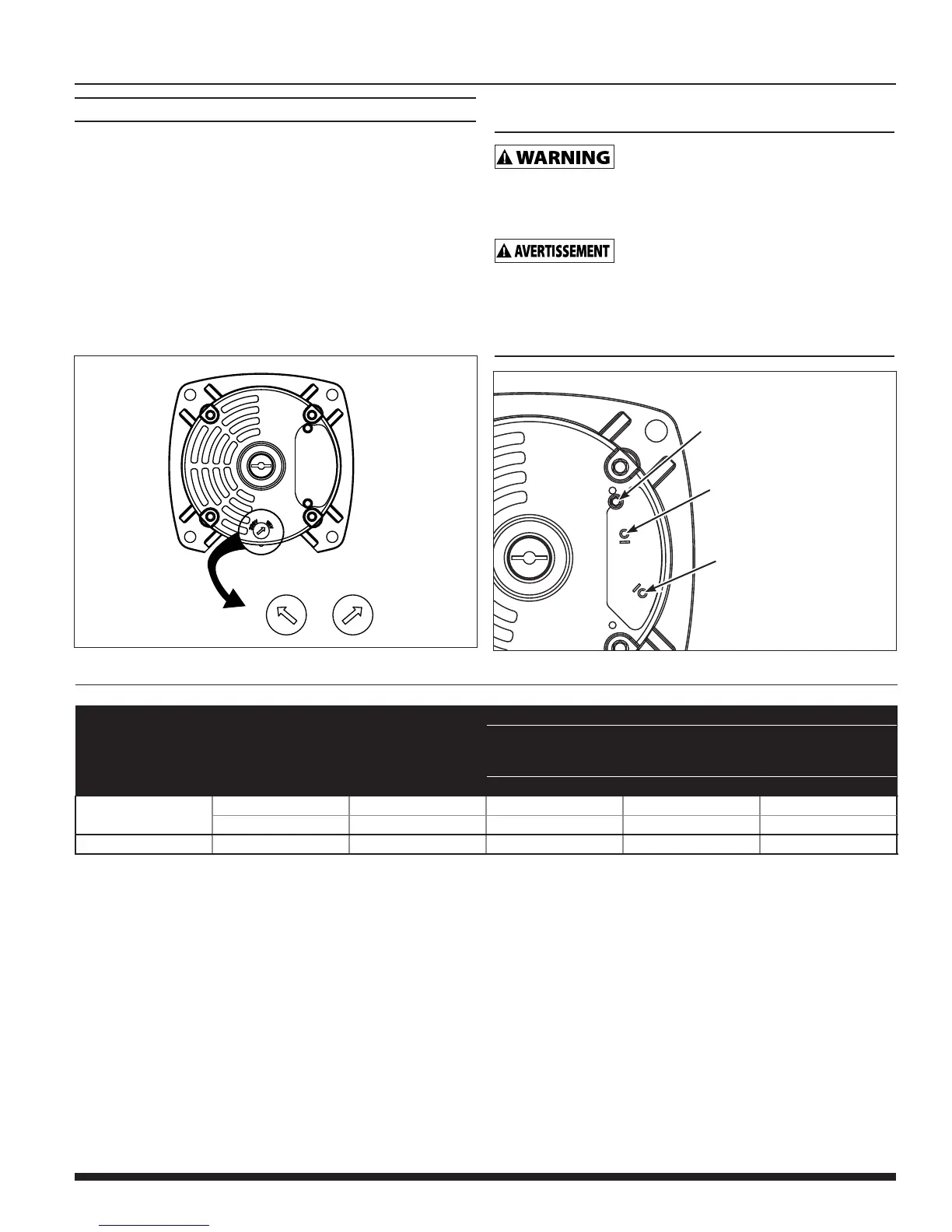

Figure 5 - Voltage Selector
(WLS150 Only)
CONNECTING WIRES
Terminal cover must be in place for safe
operation. Ground in accordance with local and national electrical
codes. Keep fingers and objects away from openings and rotating parts.
Disconnect power sources before touching internal parts. See Figure 6
for appropriate wiring locations.
Le couvercle de bornes doit être en place et
fermé pour un fonctionnement sûr. Mettre à la terre conformément aux
codes électriques locaux et nationaux. Garder les doigts et les objets à
l’écart des ouvertures et des pièces rotatives. Débrancher les sources
d’alimentation avant de toucher les pièces internes. Voir la Figure 6
pour les emplacements de câblage appropriés.
Figure 6 - Connecting Wire
GROUND CONNECTION
SCREW
1. (HOT)
2. (NEUTRAL)
CHART 1 - RECOMMENDED FUSING & WIRING DATA - 60 HZ MOTORS
HP VOLT
Dual
Element
Fuse
250V
Distance in Feet From Meter to Motor
0
to
50
51
to
100
101
to
200
Wire Size
1 1/2
115 20 14 12 10
230 10 14 14 14
2 230 10 14 14 14
* above is the suggested size only. Check with local or state code for proper sizing.
