43
Be careful not to exceed the minimum insertion mark. This insertion mark should never be visible when
using the bicycle.

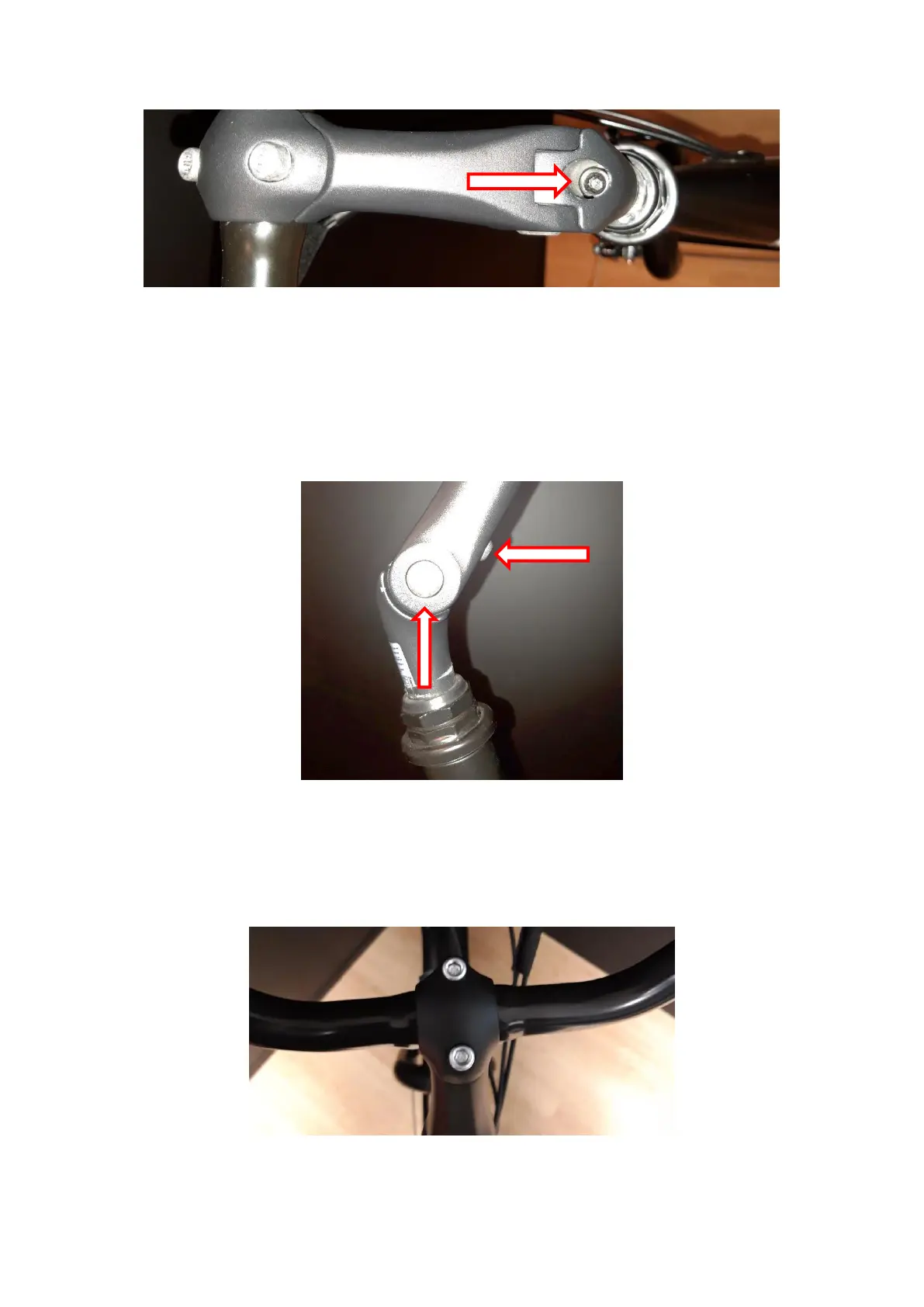

Tighten the immersion screw, making sure that the stem is in the correct position.
To adjust the tilt of the handlebar, loosen the stem screw-pivot shown in the picture below with a 5
mm hex key, select the position and tighten it.
You may then need to adjust the position of the handlebars on the stem by loosening the screws of
the stem cover, turn the handlebars at your convenience and tighten these same screws. Take care
that the handlebars are correctly centered.
