WBOX Technologies 0E-40D28WDR User Manual

Bullet camera
High-Resolution IR Camera
User Manual
12
Issue V1.0 (2018-05-11)

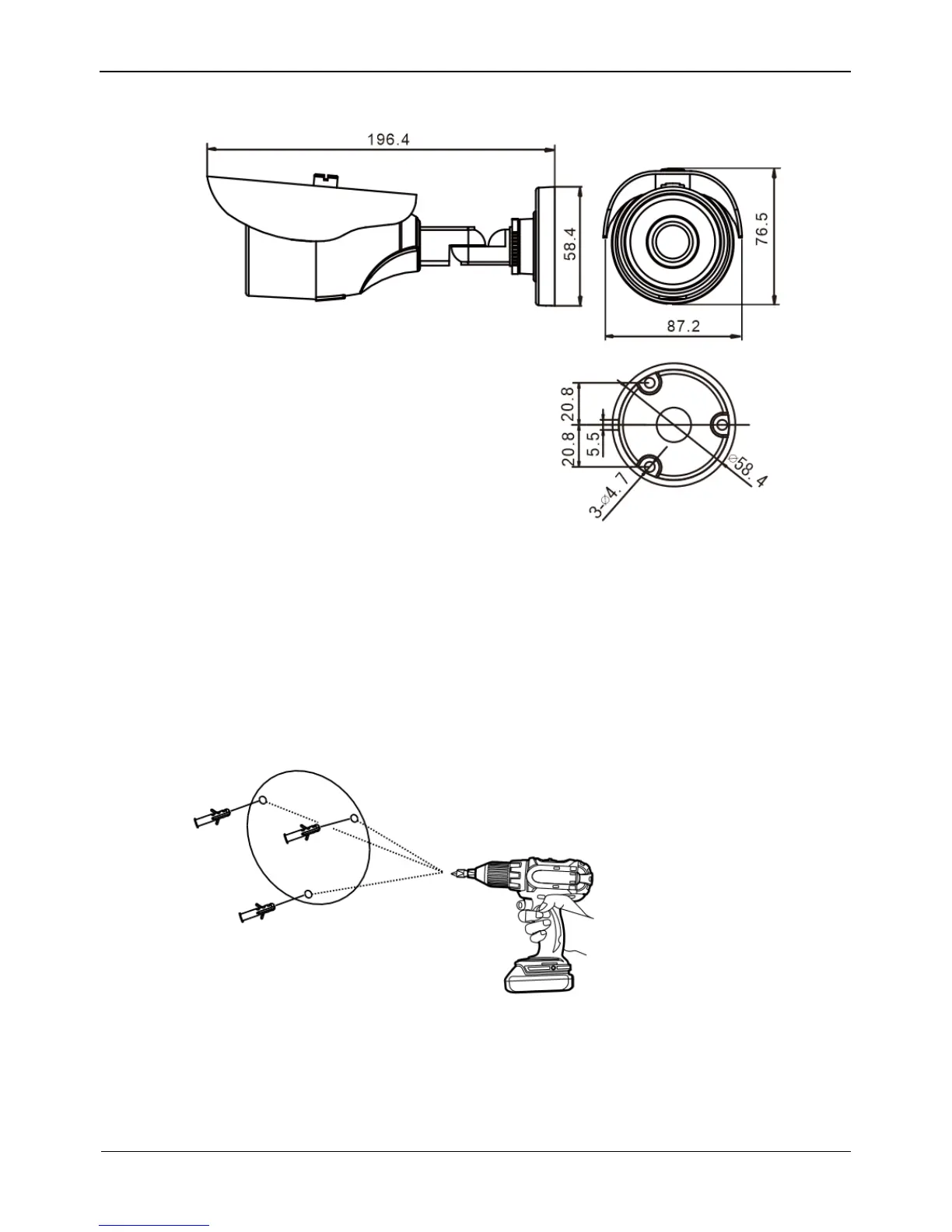

Figure 3-2 dimensions of 0E-13BF36 and 0E-21BF36WDR
3.2 Device Installation
Step 1 Stick the Installation location sticker on the ceiling or wall, Drill three holes based on
the marks on the sticker. Drive the swell plastic buttons into the holes, as shown in
Figure 3-3.
Figure 3-3 Drilling holes
Step 2 Loosen the locking screw with L-Hex Wrench and rotate the camera, then attach the
camera to the surface, as shown in Figure 3-4.

WBOX Technologies 0E-40D28WDR Specifications

General

Brand	WBOX Technologies
Model	0E-40D28WDR
Category	IP Camera
Language	English
